Powerful Granulator Crusher

Powerful Granulator Crusher

>Working Principle

V type arrangement design,during crushing process material will be crushed inclaw blades center point,avoid friction and blockage between material and side wall.How to choose the correct blades type:

1) If hardness block material,please choose staggered blades type central granulators.

2) If Thin-walled housing,bottles,please choose paddle blades type central granulators.

3) If sheet,pipe,profile and package material,with two choice,flat or paddle blades typecentral granulators all ok.

Attention:paddle type central granulators better for crushing film and thinner sheet.

>Applications

Applicable to full chains of injection pelletizing, electronic appliances, auto fittings, plastic pipe construction, food packaging,

agricultural film, medical consumables and waste plastic recycling; handles rigid plastics, films, tubes, containers, injection runners and waste plastic articles.

备注：以上规格参数如有变更,恕不另行通知Remark:Specifications and standard equipment are subject to change without notification.

Q1: What plastic waste materials can this Powerful Granulator Crusher process?

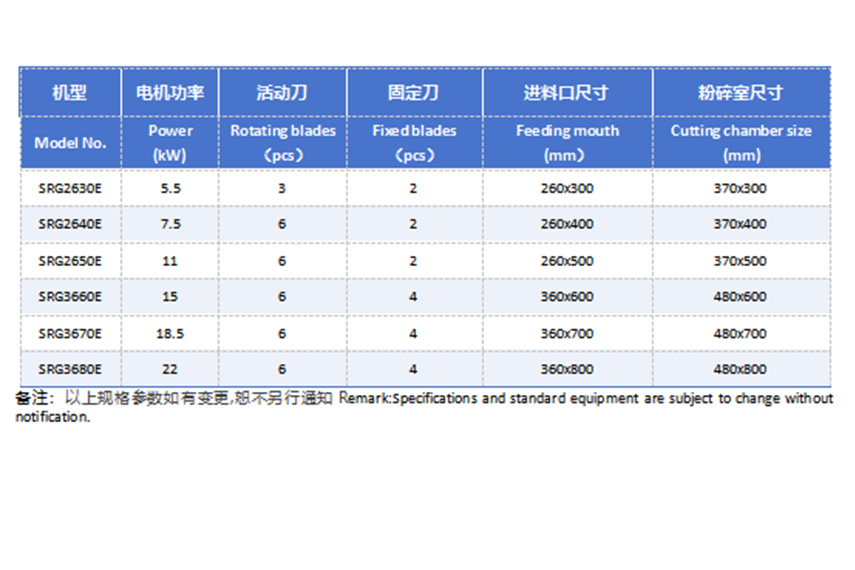

A: It is widely used for crushing PVC pipes, plastic profiles, sheets and panels. It also handles rigid plastic blocks, thin-walled plastic bottles, agricultural film, packaging scraps, injection runners, auto plastic fittings and medical plastic waste, matching injection molding, plastic extrusion and waste plastic recycling production lines. Standard available models: SRG2630E, SRG2640, SRG2650, SRG3660, SRG3670, SRG3680.

Q2: Can I adjust the particle size of crushed plastic scraps?

A: Yes, interchangeable screen meshes with different apertures are supplied. You can freely adjust the output flake size to meet your subsequent washing, dewatering and extrusion process requirements.
