HDPE Pipe Extrusion Line/PE Large Pipe Extrusion Line

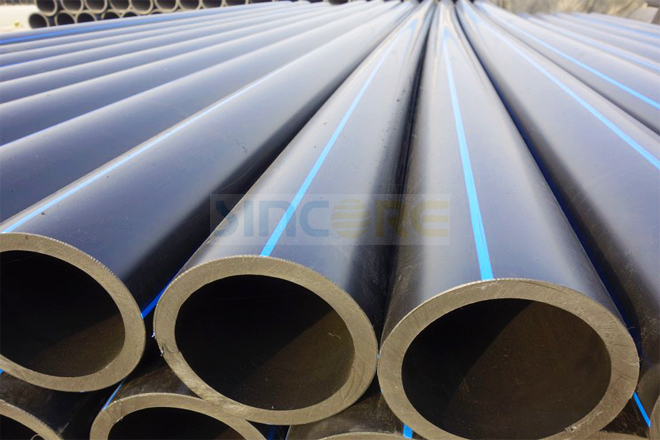

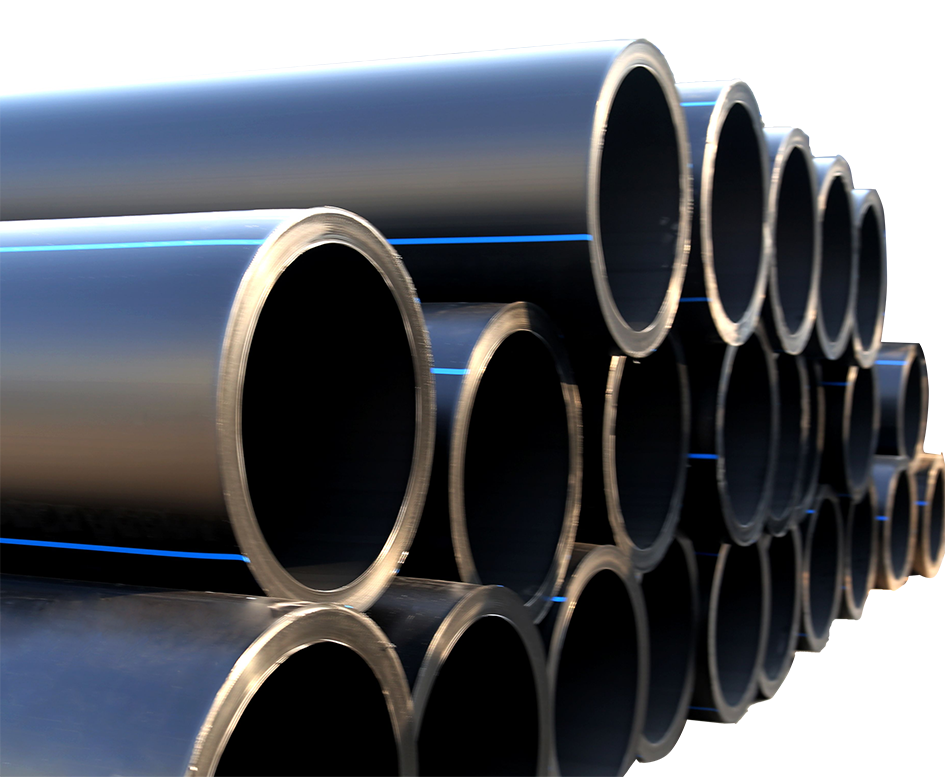

Applications: Agricultural water supply & discharge system, architectural water supply & discharge system, gas supply system, etc. PE pipes. PE pipe diameter range:Φ16mm—Φ1600mm Equipment composition: Single screw extruder—PE pipe mould—vacuum calibration tank—spraying cooling tank—hauler—cutter—stacker

Model:
GF450,GF630,GF800,GF1200,GF1600
Brand:
SINCORE

Material:	HDPE
Model::	450,630,800,1200,1600
Availability:

Quantity:



Inquire Add to Basket

Product Description

>Applications:

Agricultural water supply & discharge system, architectural water supply & discharge system, gas supply system, etc.

> Equipment composition:

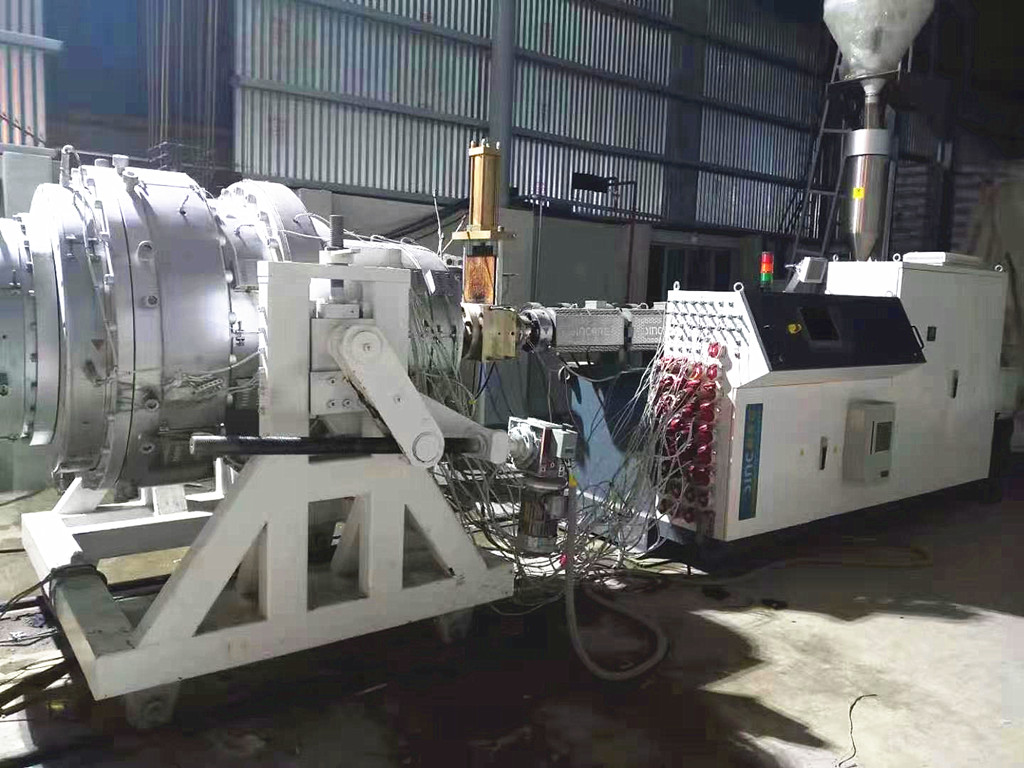

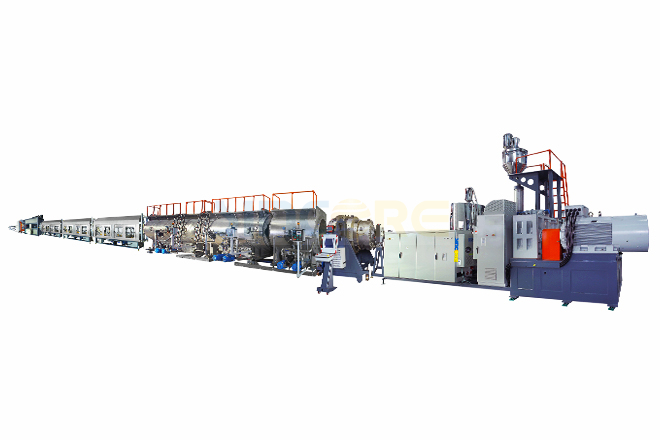

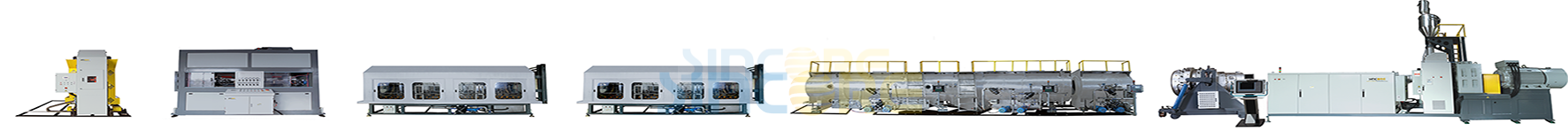

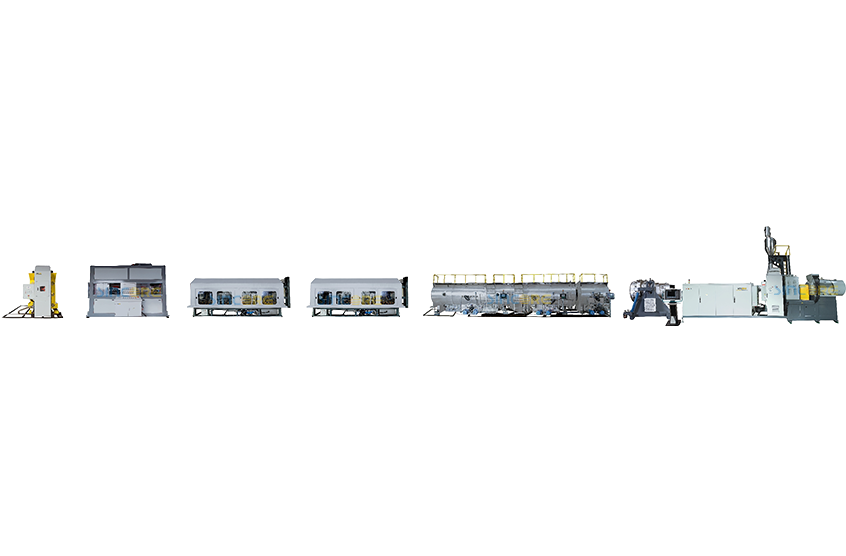

Single screw extruder-PE pipe mould-vacuum calibration tank-spraying cooling tank-hauler-cutter-stacker

Extruder	SJ75/38	SJ90/38	SJ90/38	SJ120/38	SJ120/38+SJ90/38
Pipe range	125-450	315-630	355-800	630-1200	710-1600
Main motor power（kw）	160	200	250	355	355+250
Downstream	GF450	GF630	GF800	GF1200	GF1600
Total power(kw)	345	568	810	880	1050
Total length(m)	60	67	70	72	85
Remark: Specifications and standard equipment are subject to change without notification

Q1：What pipe diameters can this PE large‑diameter pipe extrusion line produce?

A：It covers a wide range from 125mm up to 1600mm. We can match the suitable extruder model according to your target pipe size.

Q2：What supporting equipment comes with this large‑diameter HDPE pipe line?

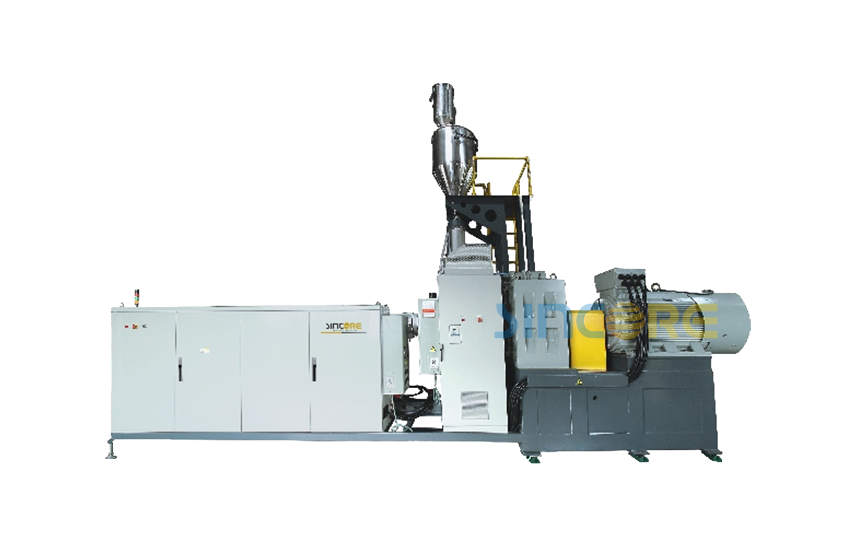

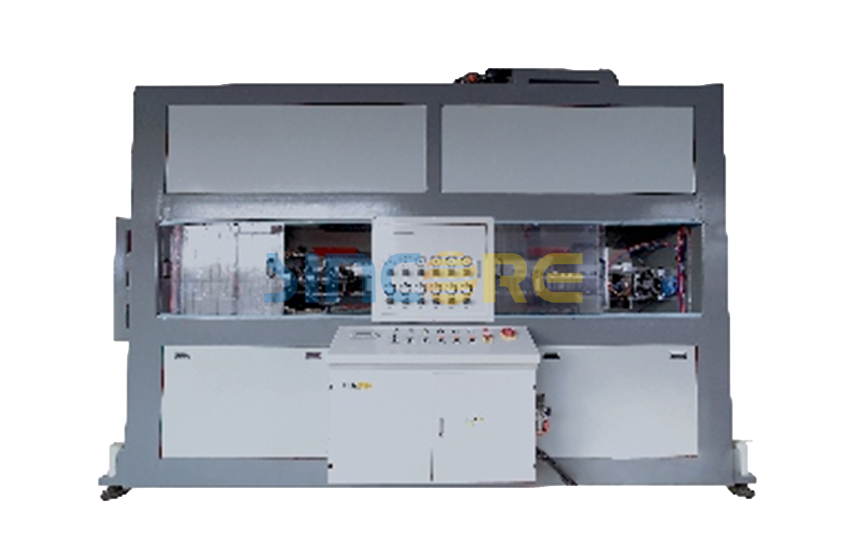

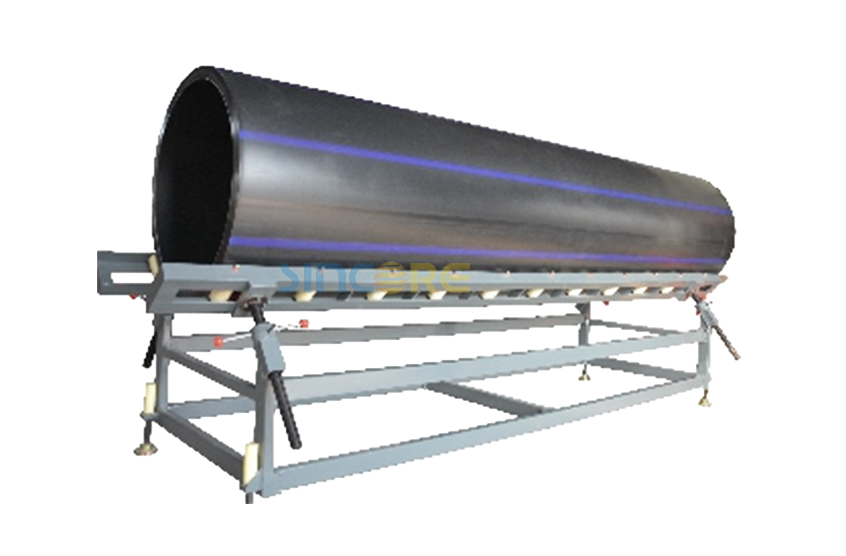

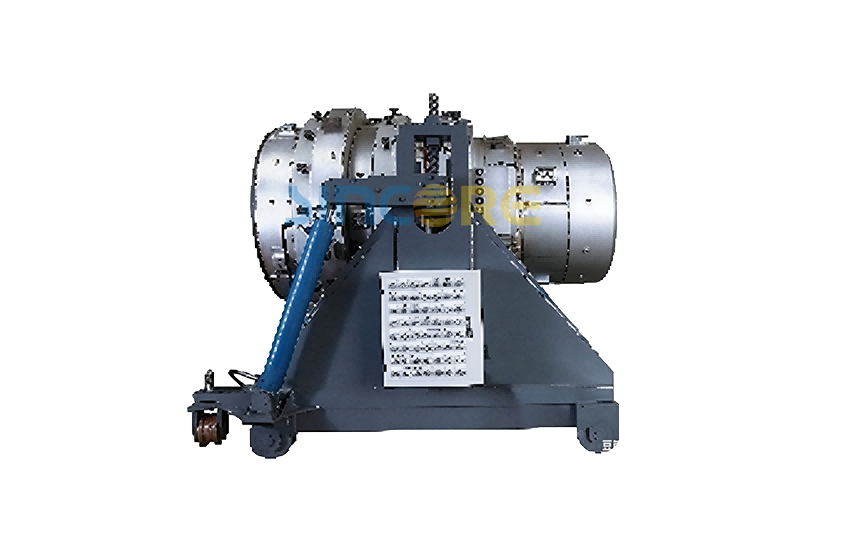

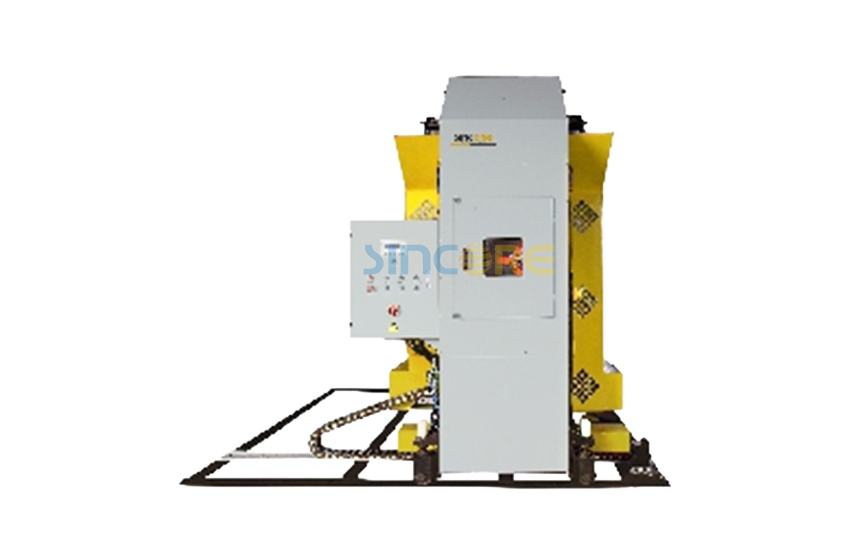

A：It consists of high‑power single‑screw extruder, large‑size pipe mould, vacuum cooling tank, heavy‑duty haul‑off, non-dust cutter and stacking device.
