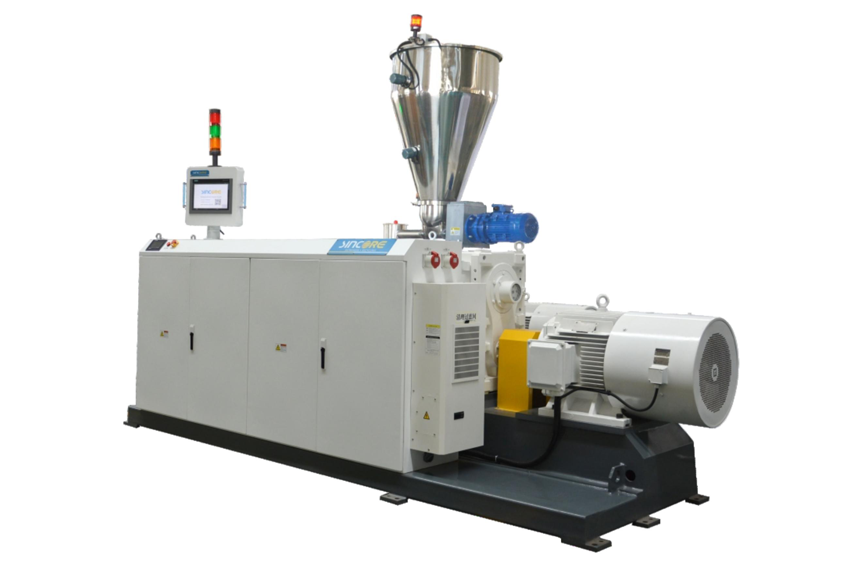

Strand Type Granulation Line
Brief introduction:

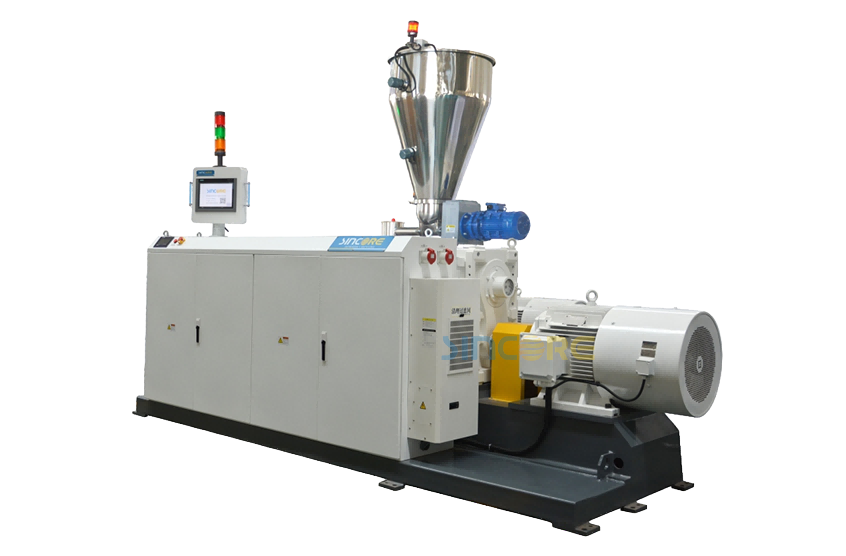

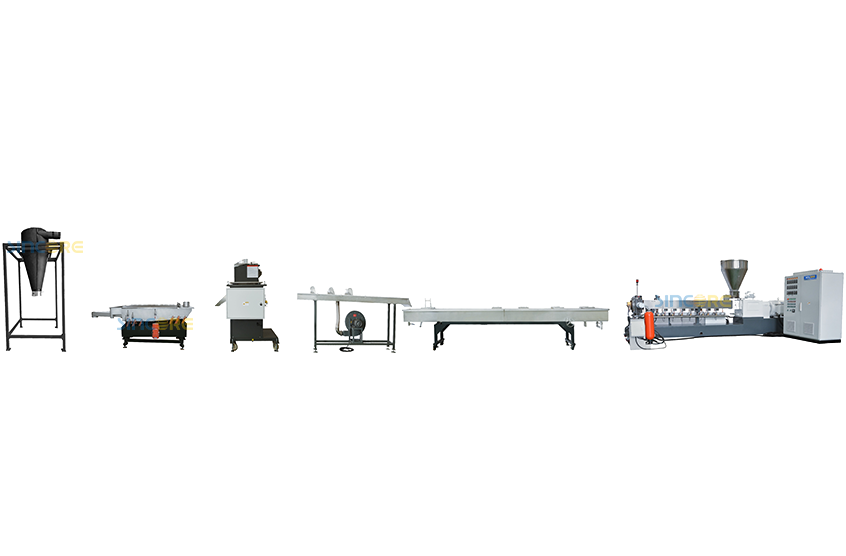

Strand cutter plastic granulation line is mainly consisted by the following machinery: feeding system, parallel twin screw(single screw)extruder, Double-station hydraulic screen changer, strand mould, cooling tank, dryer, pelletizer and blowing system(feeding and drying system).etc..
Application:
This recycling production line is the best choice for recycling waste plastic flakes, crushed material and film, etc.

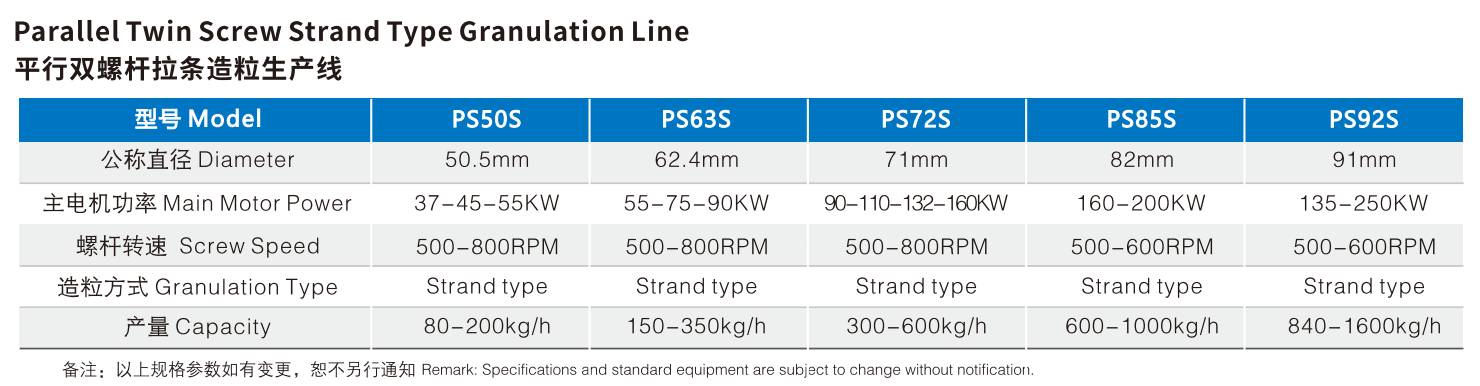

Parallel Twin Screw Strand Type Granulation Line | |||||
平行双螺杆拉条造粒生产线 | |||||
型号Model | PS50S | PS63S | PS72S | PS85S | PS92S |
公称直径 Diameter | 50.5mm | 62.4mm | 71mm | 82mm | 91mm |
主电机功率 Main Motor Power | 37-45-55KW | 55-75-90KW | 90-110-132-160KW | 160-200KW | 135-250KW |
螺杆转速 Screw Speed | 500-800RPM | 500-800RPM | 500-800RPM | 500-600RPM | 500-600RPM |
造粒方式 Granulation Type | Strand type | Strand type | Strand type | Strand type | Strand type |
产量 Capacity | 80-200kg/h | 150-350kg/h | 300-600kg/h | 600-1000kg/h | 840-1600kg/h |
备注：以上规格参数如有变更，恕不另行通知Remark:Specifications and standard equipment are subject to change without notification | |||||

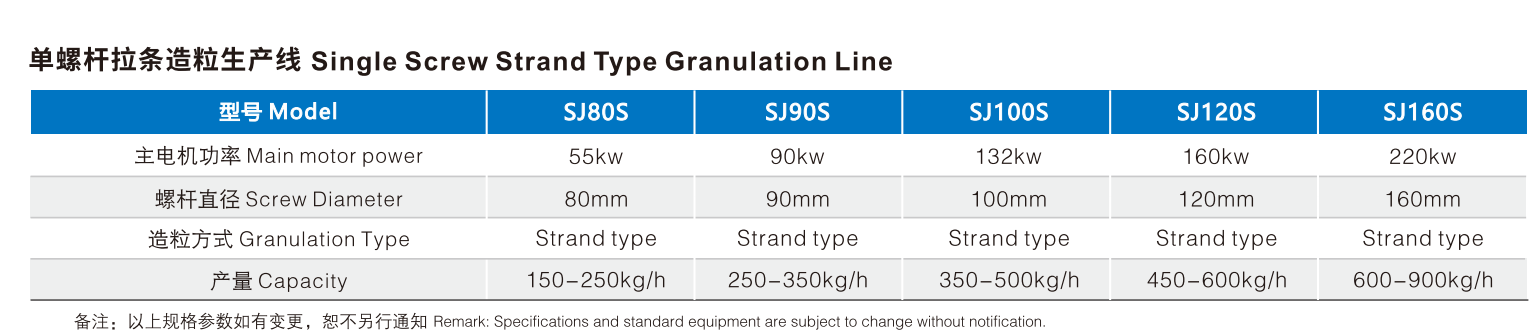

单螺杆拉条造粒生产线 Single Screw Strand Type Granulation Line | |||||
型号Model | SJ80S | SJ90S | SJ100S | SJ120S | SJ160S |
主电机功率 Main motor power | 55kw | 90kw | 132kw | 160kw | 220kw |
螺杆直径 Screw Diameter | 80mm | 90mm | 100mm | 120mm | 160mm |
造粒方式 Granulation Type | Strand type | Strand type | Strand type | Strand type | Strand type |
产量 Capacity | 150-250kg/h | 250-350kg/h | 350-500kg/h | 450-600kg/h | 600-900kg/h |
| 备注：以上规格参数如有变更，恕不另行通知Remark:Specifications and standard equipment are subject to change without notification | |||||
Q1: What waste plastic materials can this strand type granulation line recycle and pelletize?
A: It is specially designed for PP, PE, ABS, PS sheets, HDPE and solid PP crushed scraps. It also works well with waste plastic flakes, rigid crushed materials and plastic films for recycling granulation.
Q2: What core equipment makes up this strand granulation production line?
A: The complete line includes feeding system, single/parallel twin screw extruder, double-station hydraulic screen changer, strand die, cooling tank, dryer, strand pelletizer and blowing feeding & drying system. Multiple models are available: PS50S/63/72/85/92 and SJ80S/90/100/120/160.
Q3: What is the difference between standard strand granulation line and double-stage strand granulation line?
A: The double-stage model adds a second extruder for better filtration and plasticization, suitable for heavily contaminated recycled plastic; the single-stage strand line is more cost-effective for clean rigid plastic scraps.
Q4: Is double station hydraulic screen changer standard on this strand pelletizing line?
A: Yes, double-station hydraulic screen changer is standard configuration, allowing screen replacement without shutting down the whole line and improving continuous production efficiency.
