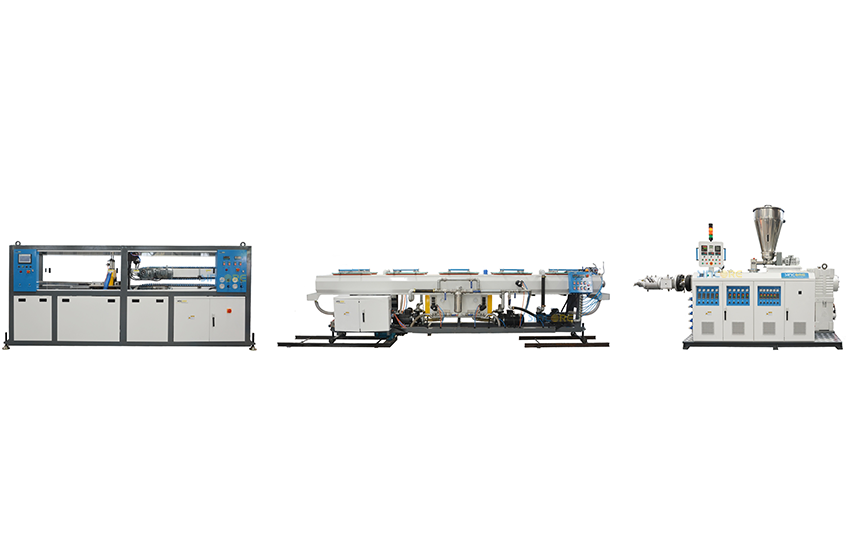

PVC Double Outlet Pipe Extrusion Line
>Features：
Φ16mm-Φ63mm double-outlet pipe extrusion line and Φ90-Φ160mm double-outlet pipe extrusion line can produce two pipes at the same time and ensures high productivity and saving huming resource.
Extruder | SJZ65/132 | SJZ80/156 | SJZ92/188 |
Pipe range | 16-63 | 50-110 | 90-160 |
Mould | Double outlet | Double outlet | Double outlet |
Downstream | GF63-2 | GF110-2 | GF160-2 |
Total power(kw) | 109.5 | 145 | 250 |
Total length(m) | 17.5 | 23 | 28.8 |
Remark: Specifications and standard equipment are subject to change without notification | |||
Q1：What is the biggest highlight of this PVC double‑outlet pipe extrusion line?
A：It produces two pipes at the same time, delivering much higher output and greatly reducing labour cost,as well as saving the space for factory.
Q2：What pipe sizes can this production line handle?
A：The double‑outlet version supports φ16‑160 mm PVC pipes. You can select according to your target finished products.
Q3：What does the whole‑line solution include?

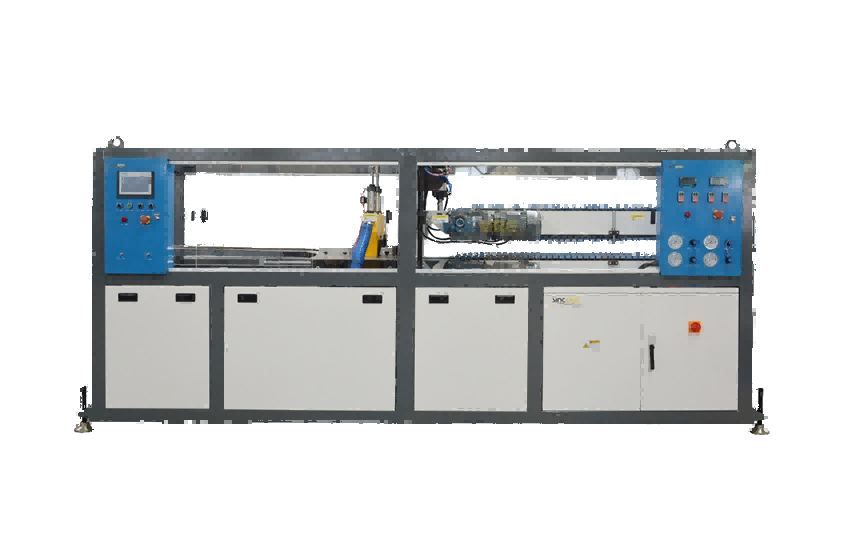

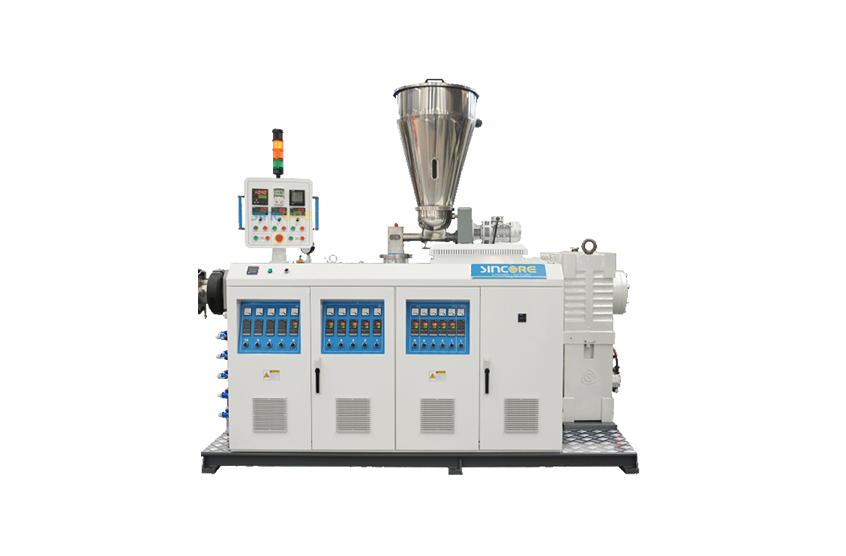

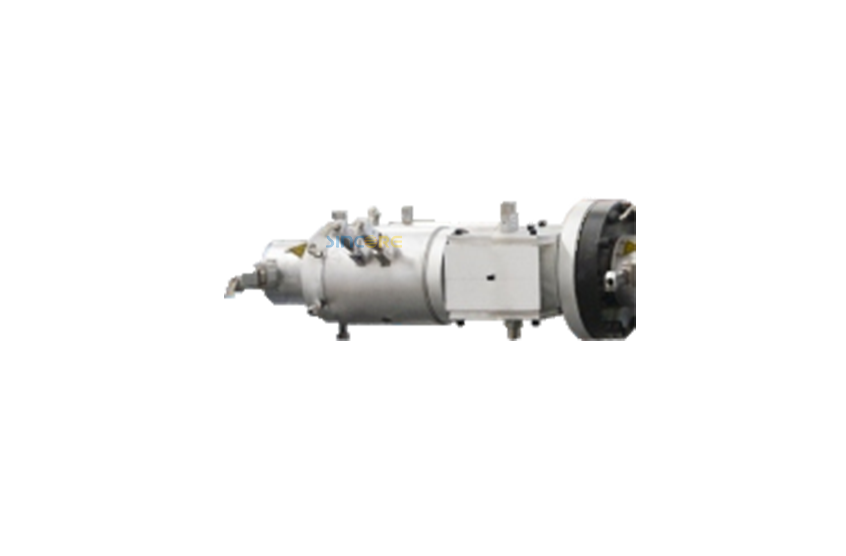

A：It includes twin‑screw extruder, double-outlet mould, downstream haul‑off unit, cutting unit and other supporting equipment. It is a complete turn‑key pipe‑making system.
