> Applications:
Skinning board production line can be made of PVC or PVC wood plastic, can be used for the production of flooring, building templates, door panels.
> Equipment composition:

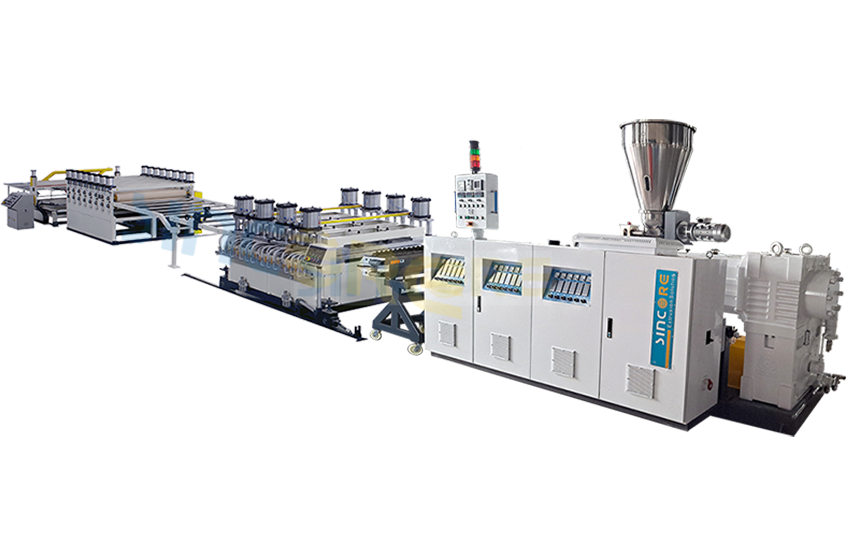

Extruder--Die-Calibration table -Roller Hauler-Cutter-Board lifting machine
Name | Extruder | Auxiliary Machine | Output(kg/h) | Size(mm) |
Parallel Twin-Screw Extrusion Machine | PS115/22 | BF1350 | 500 | 5-40 |
PS130/22 | BF2000 | 800 | 15-40(double channel) | |
Conical Twin-Screw Extrusion Machine | SJZ80/156 | BF1350 | 300 | 5-20 |
Remark：Specifications and standard equipment are subject to change without notification | ||||
Q1：What is a Semi‑Skinning / Skinning Board?
A：It features a hard, smooth and scratch‑resistant outer crust, with foamed, lightweight cellular core inside.
Q2：What finished‑board sizes can the PVC‑WPC Semi‑Skinning or Skinning Board Extrusion Line produce for stable production?
A：This line supports adjustable mould settings. Finished product size: 1.22 m × 2.44 m (width × length)or 1.56 m × 2.44 m (width × length) with 5-30mm thickness(adjustable).
Q3：What auxiliary machines are included in this complete extrusion line?
A：The whole set contains conical twin‑screw extruder, special skinning board mould, vacuum calibration table, haul‑off, cutter and stacker for fully automatic production.
