GF63,GF110,GF160,GF250,GF315,
SINCORE
Material: | |
---|---|
Availability: | |
Quantity: | |
>Applications:
Agricultural water supply&discharge system, architectural water supply&discharge system, gas supply system etc.
PE pipe diameter range: ϕ16-ϕ315mm
>Equipment composition:

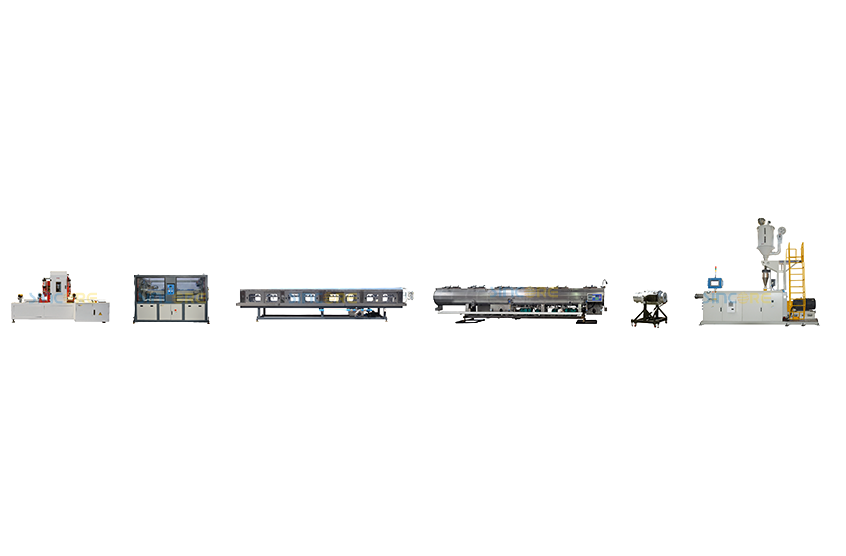

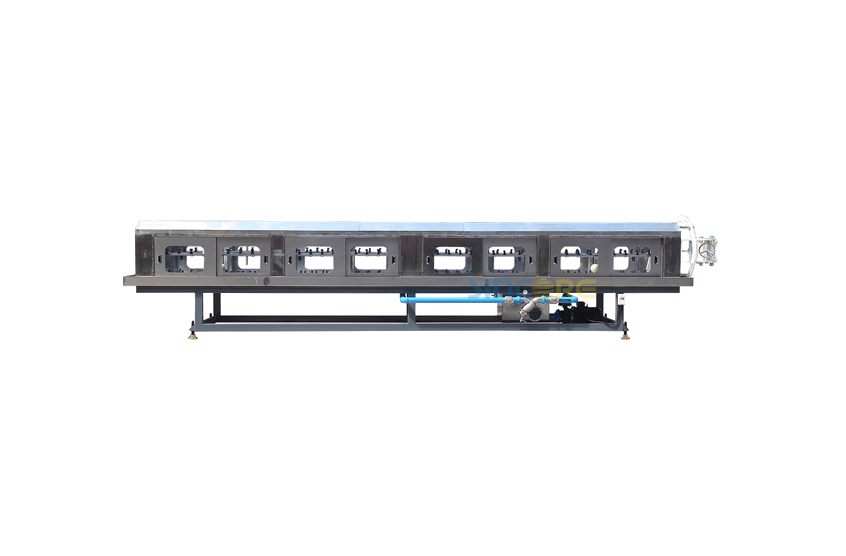

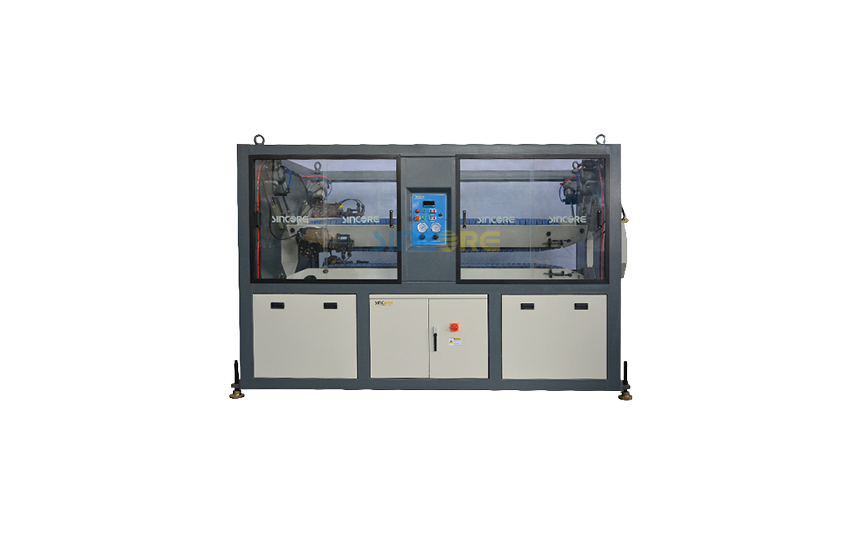

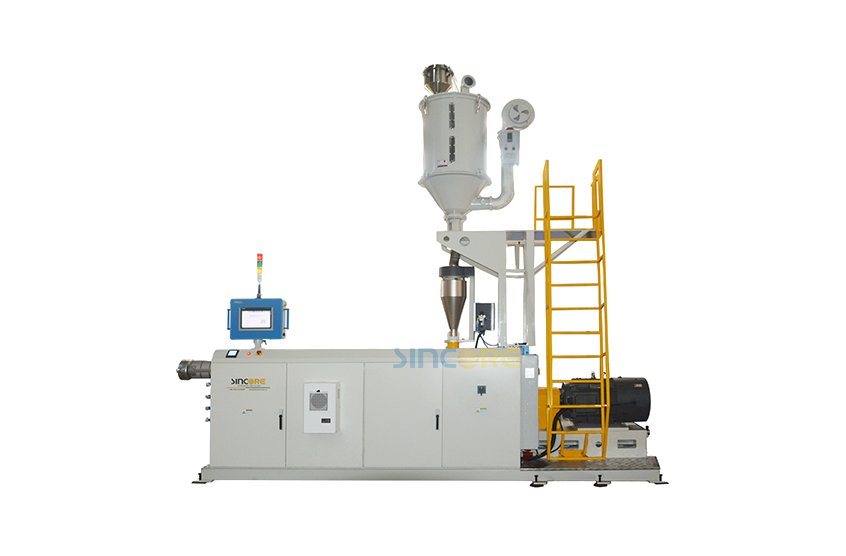

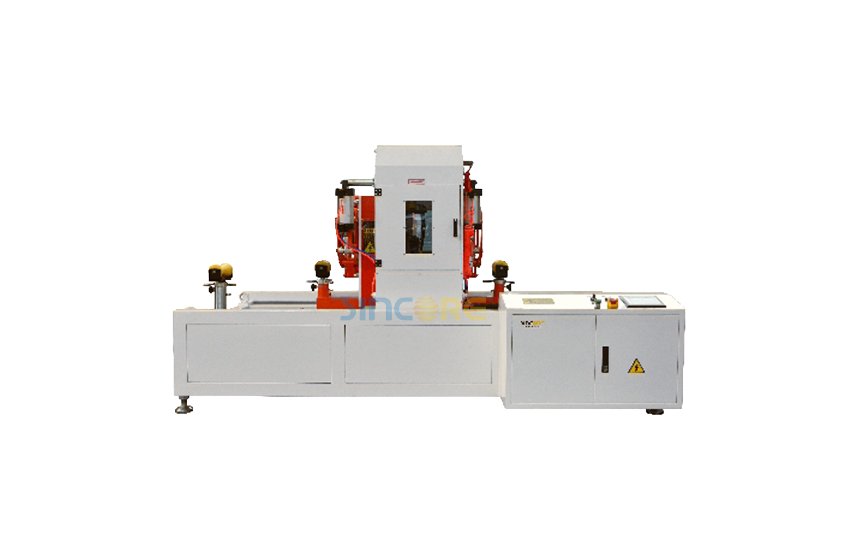

Single screw extruder-Pipe mold-Calibration tank-Cooling tank-Hauler-Cutter/Winder/Stacker.
>产品用途:
农用给排水管,建筑给排水管,暖气输送管。PE管材生产范围ϕ16-ϕ315mm
>设备组成:
单螺杆挤出机-管材模具-真空定径箱-冷却箱-切割机/收卷机/翻料架
参数新图册里的参数
主机 Extruder | SJZ65/33 | SJZ80/156(75kw) | SJ60/38(90Kkw) | SJ60/38(110KW) | |
生产管径 Pipe range | 16-63mm | 20-110mm | 50-160mm | 16-63mm | 75-250mm |
模具 Mould | 单出 Single outlet | 单出 Single outlet | 单出 Single outlet | 双出 Double outlet | 单出 Single outlet |
辅机 Downstream | GF63 | GF110 | GF160 | GF63-2 | GF250 |
总功率(kw)Total power | 106 | 166 | 178 | 207 | 240 |
生产线总长(m)Total length | 40 | 43 | 48 | 50 | 52 |
备注:以上规格参数如有变更,恕不另行通知 Remark: Specifications and standard equipment are subject to change without notification |
>Applications:
Agricultural water supply&discharge system, architectural water supply&discharge system, gas supply system etc.
PE pipe diameter range: ϕ16-ϕ315mm
>Equipment composition:
Single screw extruder-Pipe mold-Calibration tank-Cooling tank-Hauler-Cutter/Winder/Stacker.
>产品用途:
农用给排水管,建筑给排水管,暖气输送管。PE管材生产范围ϕ16-ϕ315mm
>设备组成:
单螺杆挤出机-管材模具-真空定径箱-冷却箱-切割机/收卷机/翻料架
参数新图册里的参数
主机 Extruder | SJZ65/33 | SJZ80/156(75kw) | SJ60/38(90Kkw) | SJ60/38(110KW) | |
生产管径 Pipe range | 16-63mm | 20-110mm | 50-160mm | 16-63mm | 75-250mm |
模具 Mould | 单出 Single outlet | 单出 Single outlet | 单出 Single outlet | 双出 Double outlet | 单出 Single outlet |
辅机 Downstream | GF63 | GF110 | GF160 | GF63-2 | GF250 |
总功率(kw)Total power | 106 | 166 | 178 | 207 | 240 |
生产线总长(m)Total length | 40 | 43 | 48 | 50 | 52 |
备注:以上规格参数如有变更,恕不另行通知 Remark: Specifications and standard equipment are subject to change without notification |
