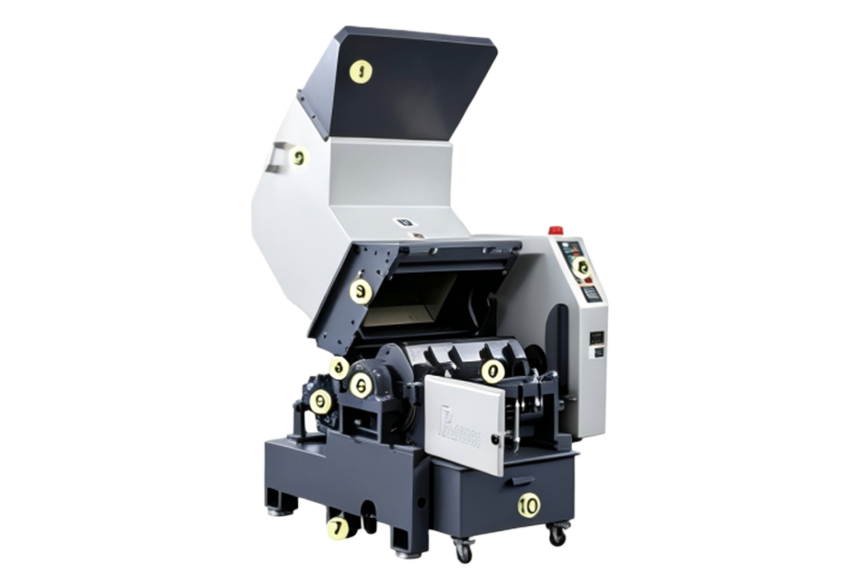

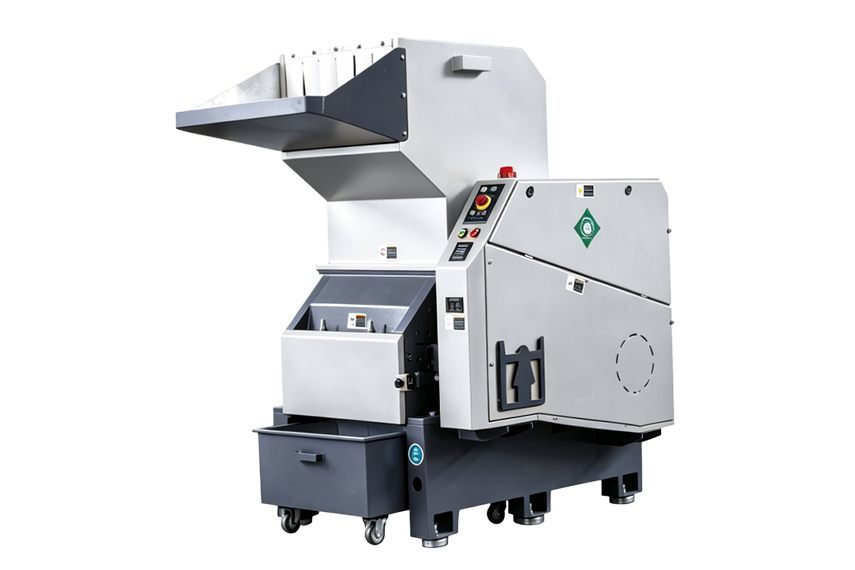

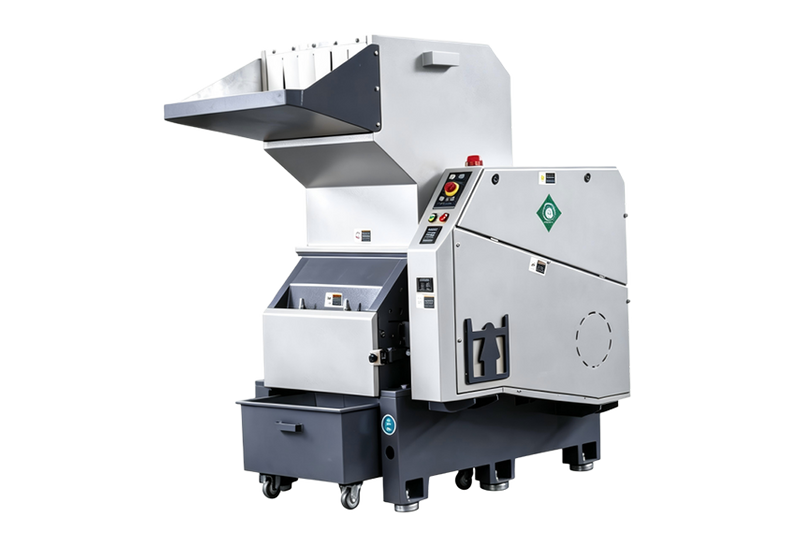

Powerful Granulator Crusher G

Powerful Granulator Crusher G

>Working Principle

V type arrangement design,during crushing process material will be crushed inclaw blades center point,avoid friction and blockage between material and side wall.How to choose the correct blades type:

1) If hardness block material,please choose staggered blades type central granulators.

2) If Thin-walled housing,bottles,please choose paddle blades type central granulators.

3) If sheet,pipe,profile and package material,with two choice,flat or paddle blades typecentral granulators all ok.

Attention:paddle type central granulators better for crushing film and thinner sheet.

>Applications

Applicable to full chains of injection pelletizing, electronic appliances, auto fittings, plastic pipe construction, food packaging, agricultural film, medical consumables and waste plastic recycling; handles rigid plastics, films, tubes, containers, injection runners and waste plastic articles.

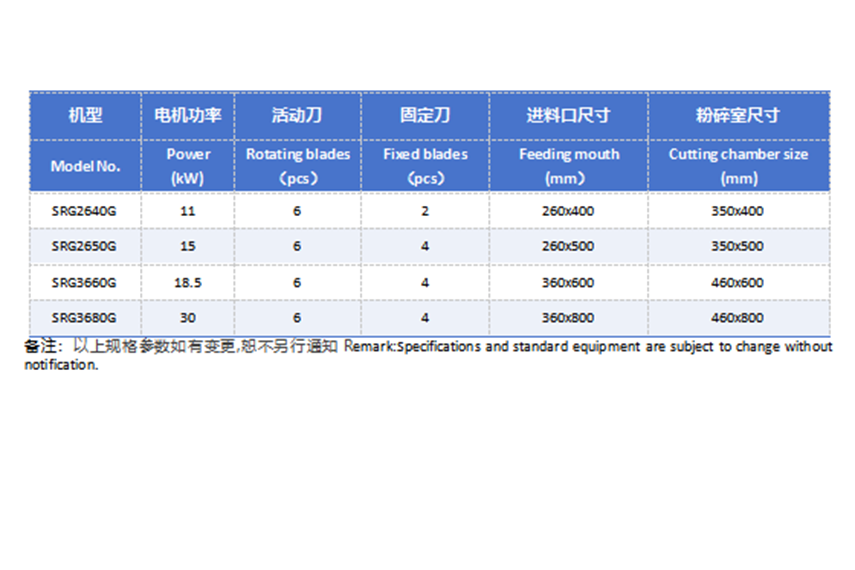

备注：以上规格参数如有变更,恕不另行通知Remark:Specifications and standard equipment are subject to change without notification.

Q1: Which production lines can this granulator match as auxiliary equipment?

A: It can be perfectly matched with SINCORE PVC/HDPE pipe extrusion lines, PVC/WPC board & profile extrusion lines and all recycling granulation lines (strand granulation, water ring granulation, agglomerator granulation line). Crushed plastic flakes can directly feed into dewatering machine and extruder to build a full automatic plastic recycling system.

Q2: What’s the advantage of V-type crushing cavity design?

A: The V-shaped structure guides all waste materials to the central cutting zone of blades, lowers friction between plastic and cavity side walls, minimizes blocking faults and improves continuous crushing efficiency.

Q3: Can I adjust the particle size of crushed plastic?

A: Yes, interchangeable screens with different apertures are provided, you can freely adjust flake size according to your subsequent washing and granulation process requirements.
