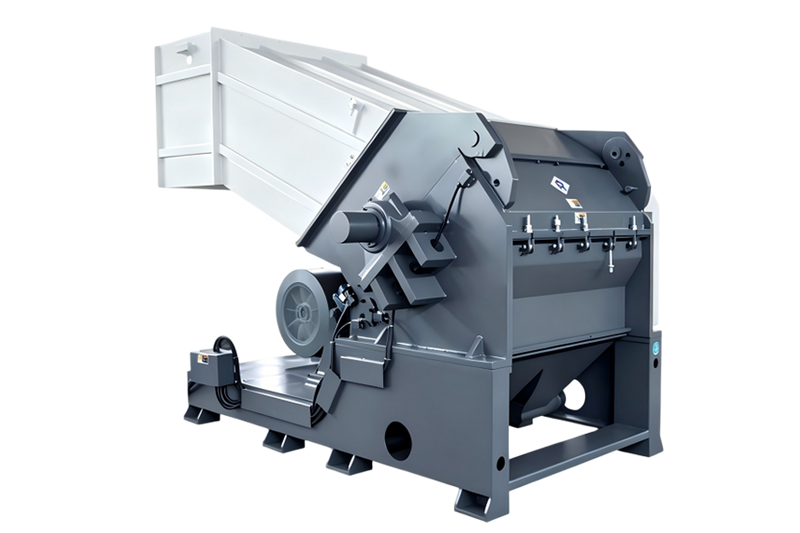

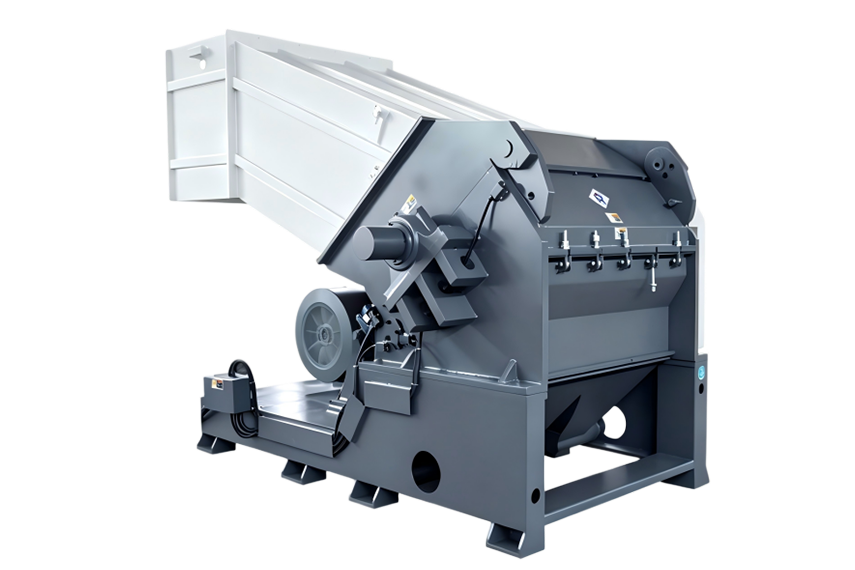

Pipe Centralized Crusher

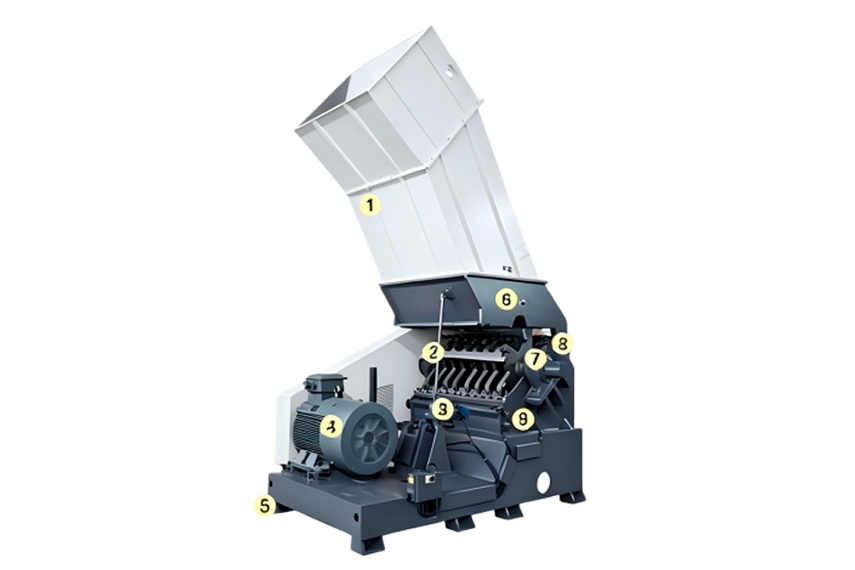

V type arrangement design,during crushing process material will be crushed inclaw blades center point,avoid friction and blockage between material and side wall.How to choose the correct blades type:
1) If hardness block material,please choose staggered blades type central granulators.
2) If Thin-walled housing,bottles,please choose paddle blades type central granulators.
3) If sheet,pipe,profile and package material,with two choice,flat or paddle blades typecentral granulators all ok.
Attention:paddle type central granulators better for crushing film and thinner sheet.
>Applications
Applicable to full chains of injection pelletizing, electronic appliances, auto fittings, plastic pipe construction, food packaging, agricultural film, medical consumables and waste plastic recycling; handles rigid plastics, films, tubes, containers, injection runners and waste plastic articles.

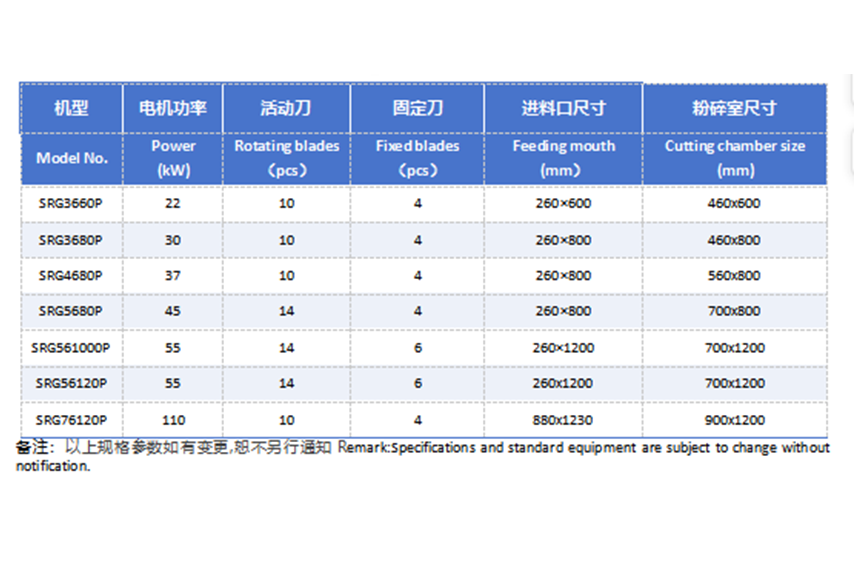

机型 | 电机功率 | 活动刀 | 固定刀 | 进料口尺寸 | 粉碎室尺寸 |
Model No. | Power | Rotating blades | Fixedblades | Feeding mouth | Cutting chamber size |
SRG3660P | 22 | 10 | 4 | 260×600 | 460x600 |
SRG3680P | 30 | 10 | 4 | 260×800 | 460xB00 |
SRG4680P | 37 | 10 | 4 | 260×800 | 560×B00 |
SRG5680P | 45 | 14 | 4 | 260×800 | 700xB00 |
SRG561000P | 55 | 14 | 6 | 260×1200 | 700x1200 |
SRG56120P | 55 | 14 | 6 | 260x1200 | 700x1200 |
SRG76120P | 110 | 10 | 4 | 8B0x1230 | 900x1200 |
备注：以上规格参数如有变更，想不另行通知Remark:Specifications and standard equipment are subject to change without | |||||
Q1: What plastic waste materials can this pipe centralized crusher handle?
A: It is specially designed for PVC/PE pipes, plastic profiles, sheets and panels. It also widely processes rigid plastic blocks, thin-walled plastic bottles, plastic films, injection runners, agricultural film, packaging scraps, auto plastic fittings and medical plastic waste for recycling granulation lines.
Q2: How to select the correct blade type for different plastic raw materials?
A: 3 blade options for different materials:
1. Staggered blades: best for hard solid plastic blocks;
2. Paddle blades: ideal for thin-walled bottles, film and thin sheets;
3. Flat blades: compatible for pipes, profiles and plastic sheets (paddle blades perform better on film & ultra-thin sheets).
Its V-type crushing cavity design concentrates cutting at blade center, effectively avoiding material friction and machine blockage.

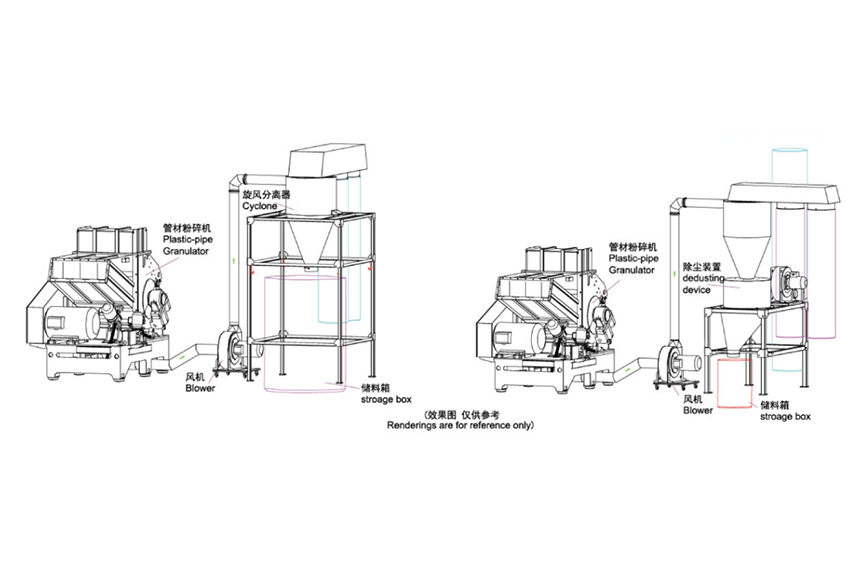

Q3: Can this crusher work with conveyor and dust removal system?
A: Yes, belt conveyor, suction fan, storage silo and dust removal device are all optional configurations for fully automatic centralized crushing workshop.
