Heavy Duty Granulator Crusher

Heavy Duty Granulator Crusher

>Working Principle

V type arrangement design,during crushing process material will be crushed inclaw blades center point,avoid friction and blockage between material and side wall.How to choose the correct blades type:

1) If hardness block material,please choose staggered blades type central granulators.

2) If Thin-walled housing,bottles,please choose paddle blades type central granulators.

3) If sheet,pipe,profile and package material,with two choice,flat or paddle blades typecentral granulators all ok.

Attention:paddle type central granulators better for crushing film and thinner sheet.

>Applications

Applicable to full chains of injection pelletizing, electronic appliances, auto fittings, plastic pipe construction, food packaging, agricultural film, medical consumables and waste plastic recycling; handles rigid plastics, films, tubes, containers, injection runners and waste plastic articles.

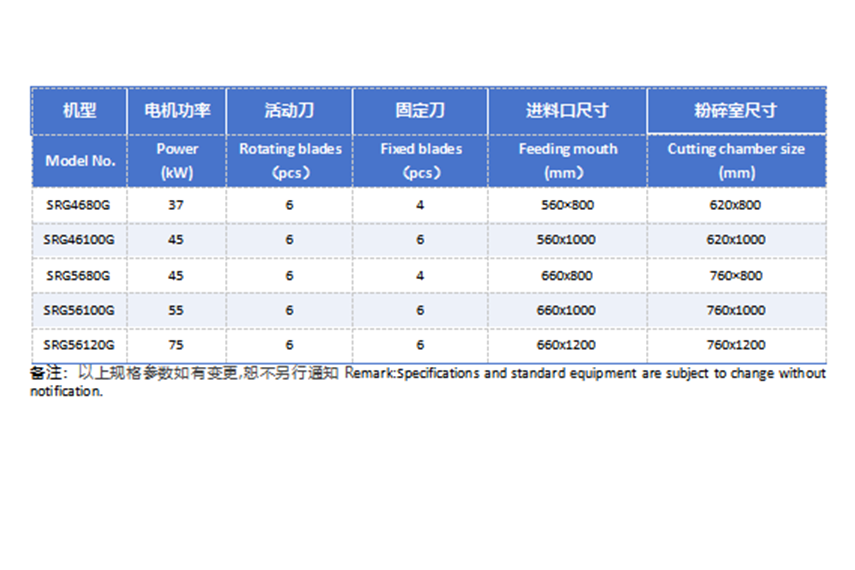

备注：以上规格参数如有变更,恕不另行通知Remark:Specifications and standard equipment are subject to change without notification.

Q1: How to select suitable blade types according to different plastic materials?

A: Three interchangeable blade options for different raw materials:

1. Staggered blades: for hard, thick solid plastic blocks;

2. Paddle blades: best for thin bottles, film and ultra-thin sheets to prevent winding;

3. Flat blades: compatible with pipes, profiles and general plastic sheets.

The machine adopts V-type crushing cavity design, which concentrates cutting at the blade center, reduces friction between materials and cavity walls and effectively avoids blockage during continuous heavy-duty crushing.

Q2: Which complete recycling lines can this heavy duty granulator match?

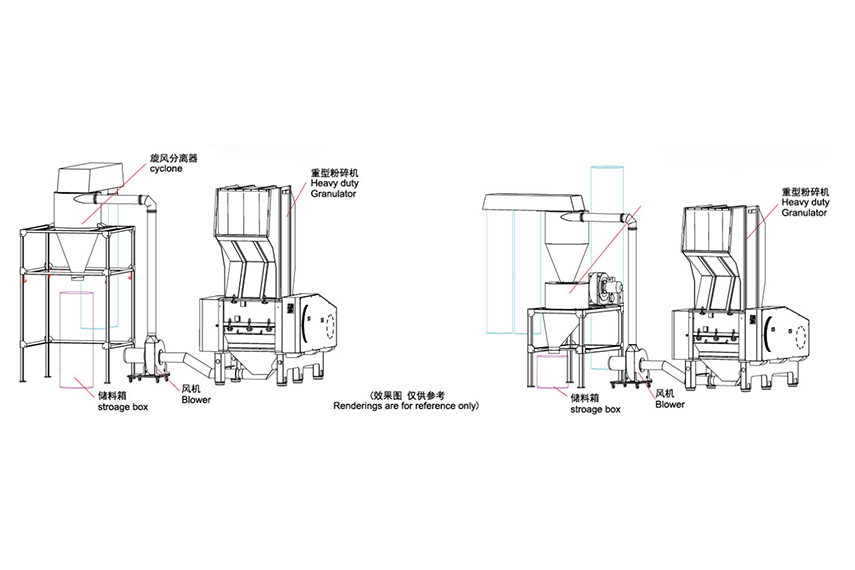

A: It perfectly matches strand granulation line, water ring granulation line and agglomerator film recycling line. Crushed plastic can directly feed into dewatering machine and extruder to realize closed-loop plastic recycling.
