SJ-150;SJ-120,SJ-100,SJ-90,SJ-80
SINCORE
Material: | |
---|---|
capacity: | |
Availability: | |
Quantity: | |
概述Brief introduction:
水环造粒生产线主要有喂料机、挤出机、双工位液压换网器、水环模具、水环切粒系统、风送料仓、控制系统等组成。

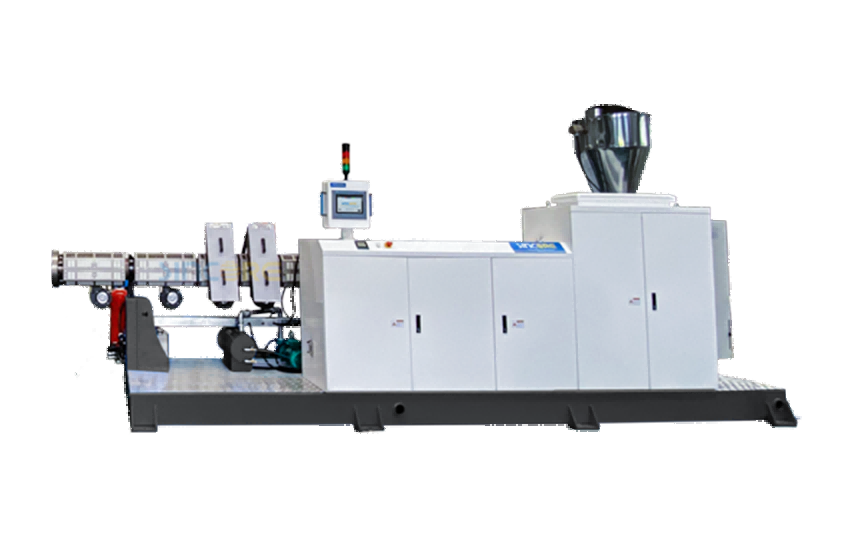

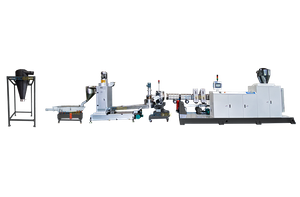

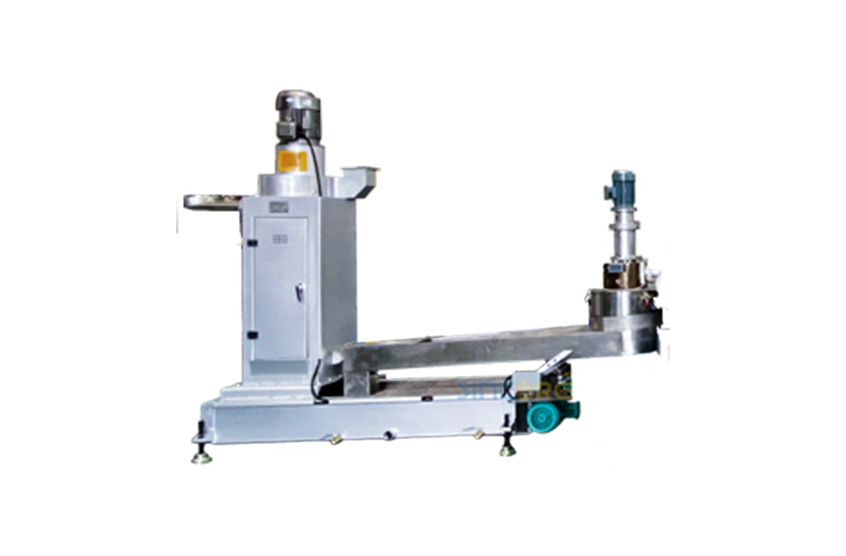

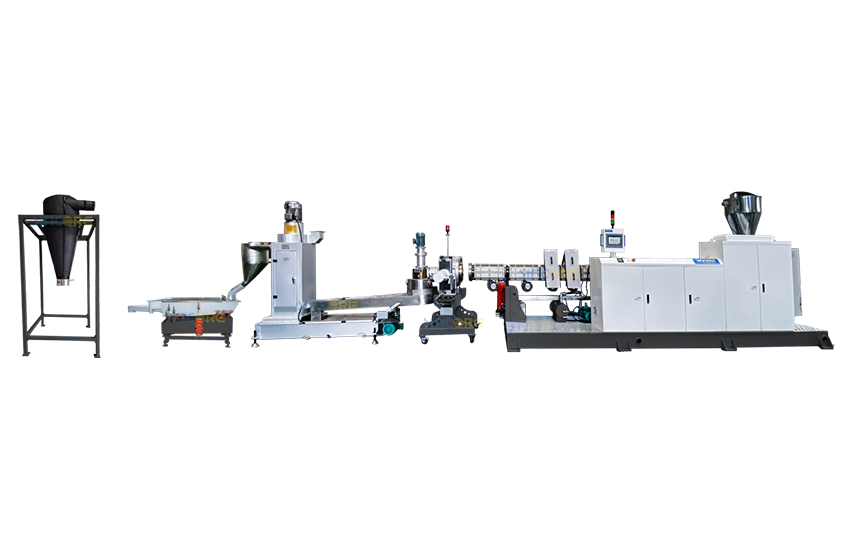

The water ring granulation production line is mainly consisted of the following machinery: screw feeder, extruder, double-station hydraulic screen changer, water ring die, water ring pelletizing system, air blowing system (silo), control system, etc.
用途Usage:
该生产线是废旧塑料片材、各类已破碎废塑料、薄膜回收造粒的理想设备。
This recycling production line is the best choice for recycling waste plastic flakes (size≤8mm), crushed material and film, etc.
(参数表格以excel 为准)
型号/Model | SJ80W | SJ90W | SJ100W | SJ120W | SJ160W |
主电机功率/Main motor power | 55kw | 90kw | 132kw | 160kw | 220kw |
挤出机螺杆直径/ExScrew Diameter | 80mm | 90mm | 100mm | 120mm | 160mm |
造粒方式/Granulation Type | Water Ring | Water Ring | Water Ring | Water Ring | Water Ring |
产量/Capacity | 150-250kg/h | 250-350kg/h | 350-500kg/h | 450-600kg/h | 600-900kg/h |
备注:以上规格参数如有变更,恕不另行通知 Remark:Specifications and standard equipment are subject to change without notification |
