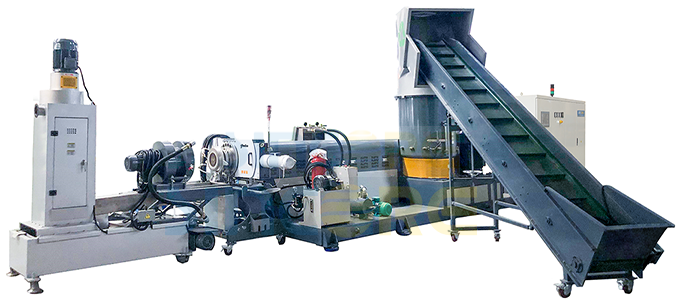

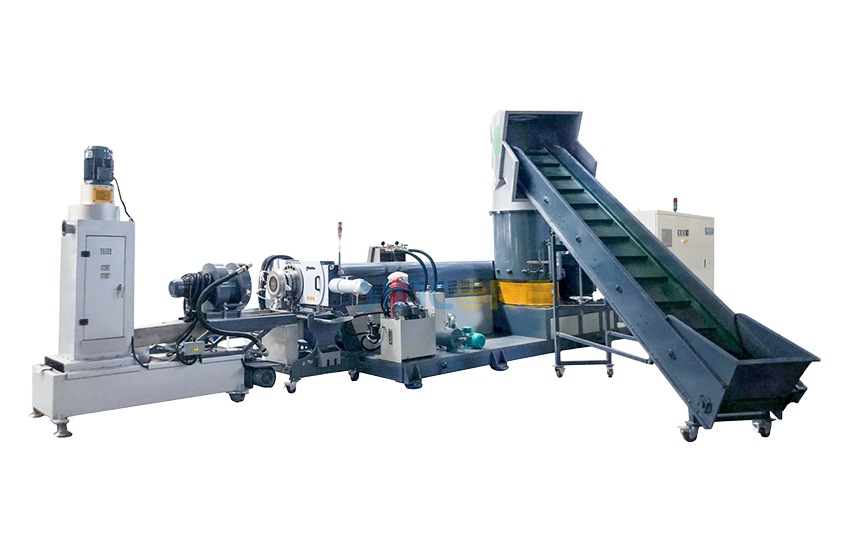

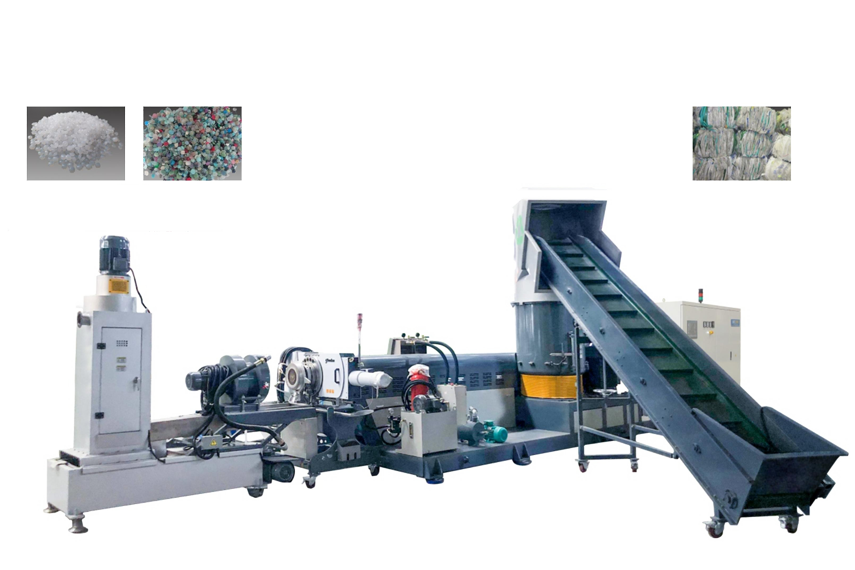

Agglomerator Water Ring Granulation Line
Brief introduction:
Agglomerator and watering cutter plastic recycling production line is mainly consisted of the following machinery: belt conveyor (roller conveyor), agglomerator, extruder, hydraulic screen changer, water ring cutting system, dewatering machine, air blowing system, (feeding and drying system), etc.
Usage:
This recycling production line is the best choice for recycling waste plastics like PE/PP fim silk, flakes (thickness≤0.5mm), strip, woven bags and extrusion leftover waste.

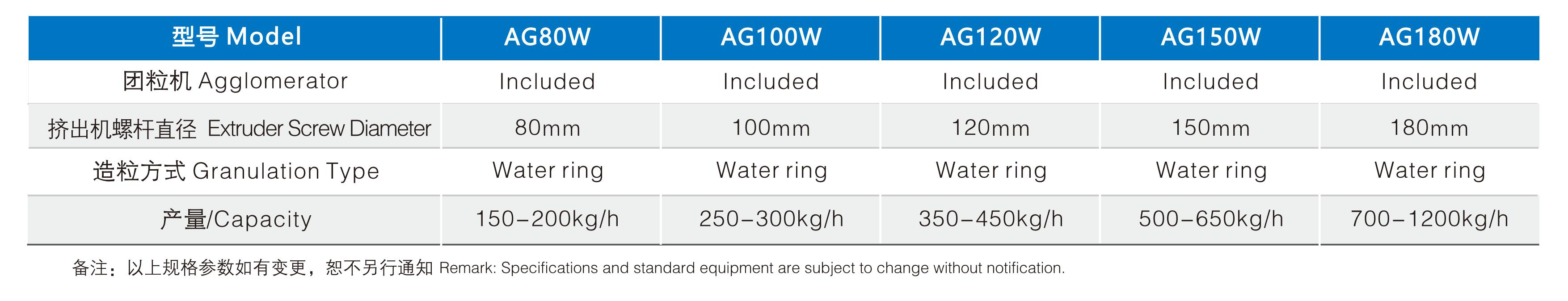

型号Model | AG80W | AG100W | AG120W | AG150W | AG180W | |
团粒机 Agglomerator | Included | Included | Included | Included | Included | |
挤出机螺杆直径 Extruder Screw Diameter | 80mm | 100mm | 120mm | 150mm | 180mm | |
造粒方式 Granulation Type | Water ring | Water ring | Water ring | Water ring | Water ring | |
产量 Capacity | 150-200kg/h | 250-300kg/h | 350-450kg/h | 500-650kg/h | 700-1200kg/h | |
备注：以上规格参数如有变更，恕不另行通知Remark Speciications and standard equipment are subject to change without notification | ||||||
Q1: What waste plastic materials can this agglomerator water ring granulation line process?
A: It is specially developed for thin waste plastics including PE/PP film, silk, plastic flakes (thickness ≤0.5mm), plastic strips, woven bags and leftover extrusion scraps, which are easy to tangle and hard to feed by ordinary granulation lines.
Q2: Can this line work with your vertical plastic dewatering machine?
A: Yes, the matched dewatering machine is standard supporting equipment, which removes surface water from cut pellets and reduces residual moisture before air drying.
Q3: Is hydraulic screen changer standard on this production line?
A: Hydraulic screen changer is standard configuration, allowing fast screen replacement without long-time line shutdown to improve continuous production.
EXHIBITION
In a number of exhibitions have been widely recognized and praised
SHIPPING
Secure the package and ensure the safety of the transport process
CERTIFICATE
PASSED CE certification and own intellectual property rights
