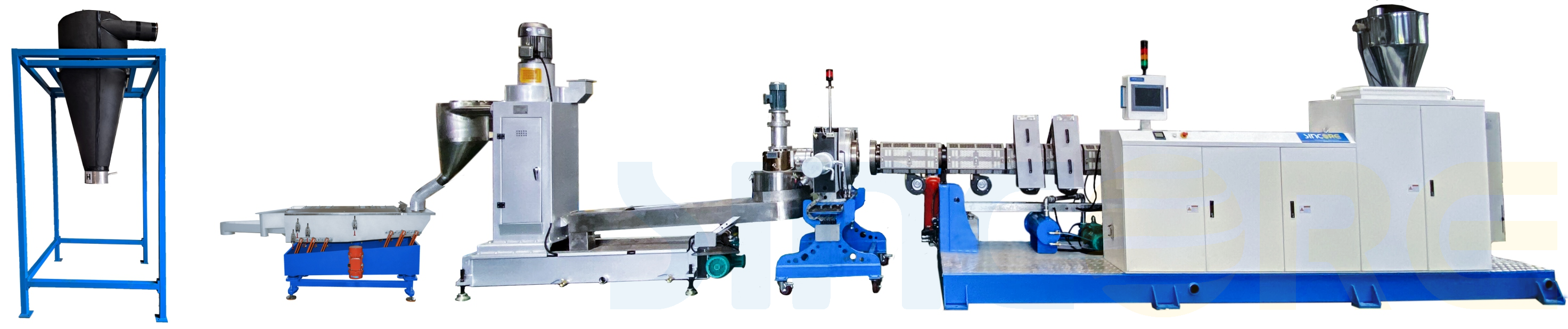

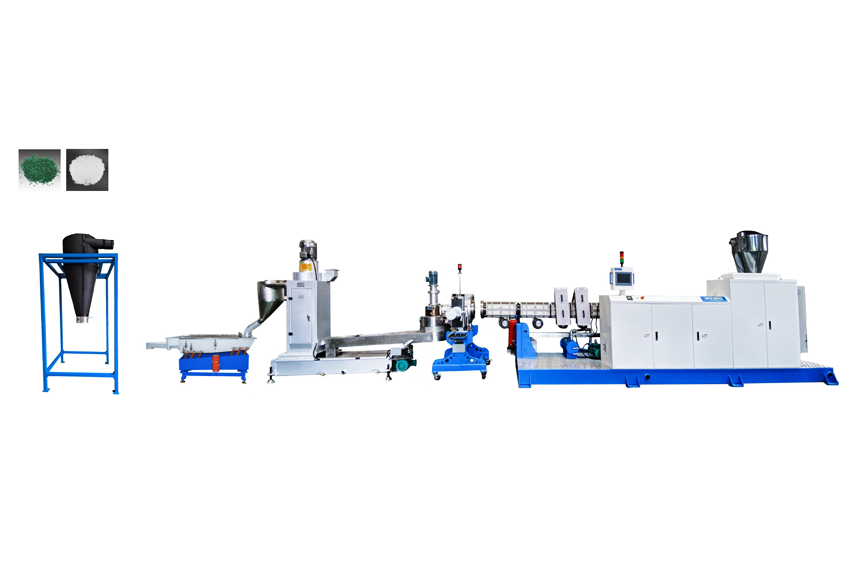

Water Ring Granulation Line
>Briefintroduction:

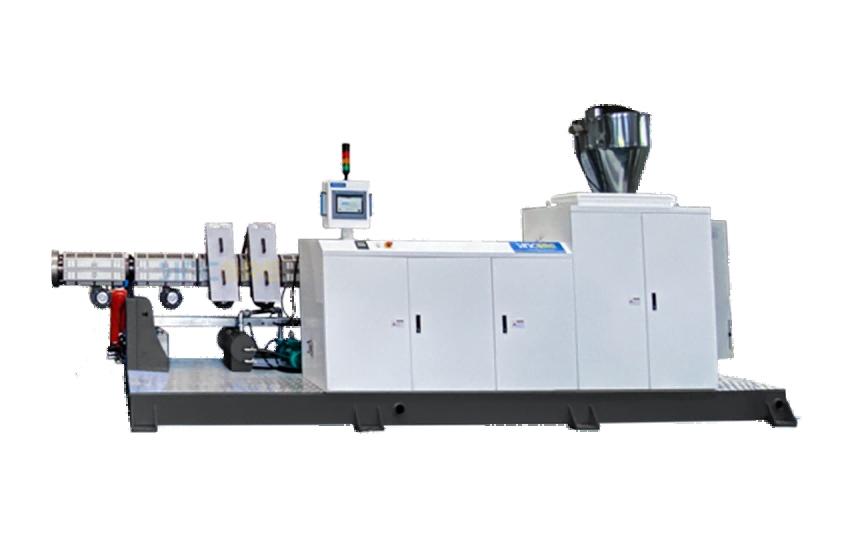

The water ring granulation lineis consisted ofscrew feeder, extruder, double-station hydraulic screen changer, water ring die.

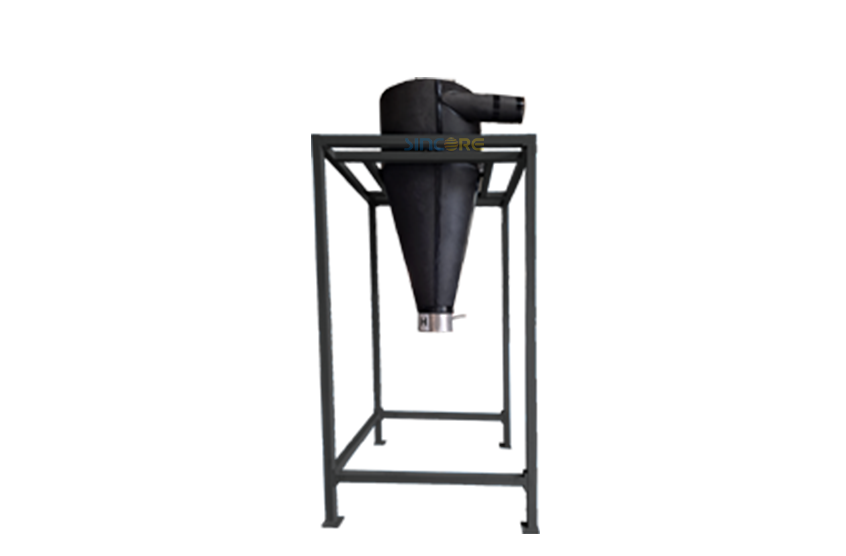

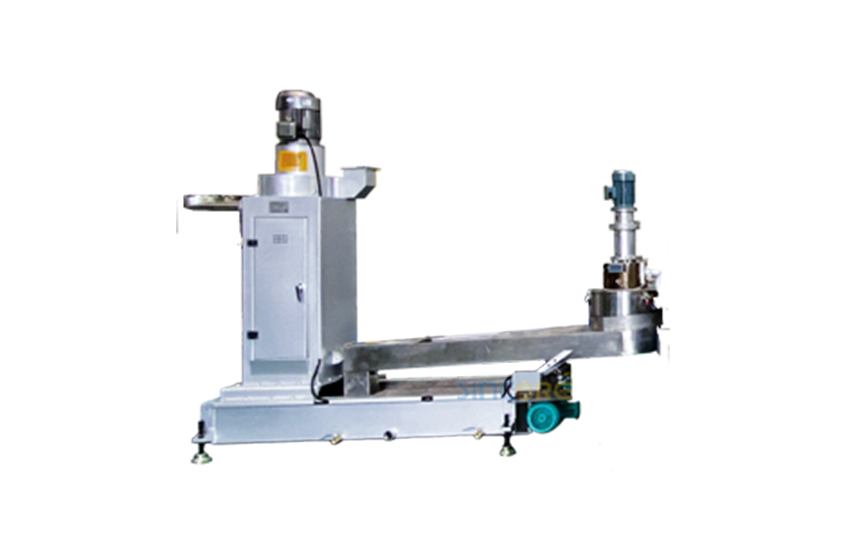

water ring pelletizingsystem,airblowingsystem (silo),control system,etc.
>Application:
This recycling production line is the best choice for recycling waste plastic flakes (size<8mm), crushed material and film,etc.

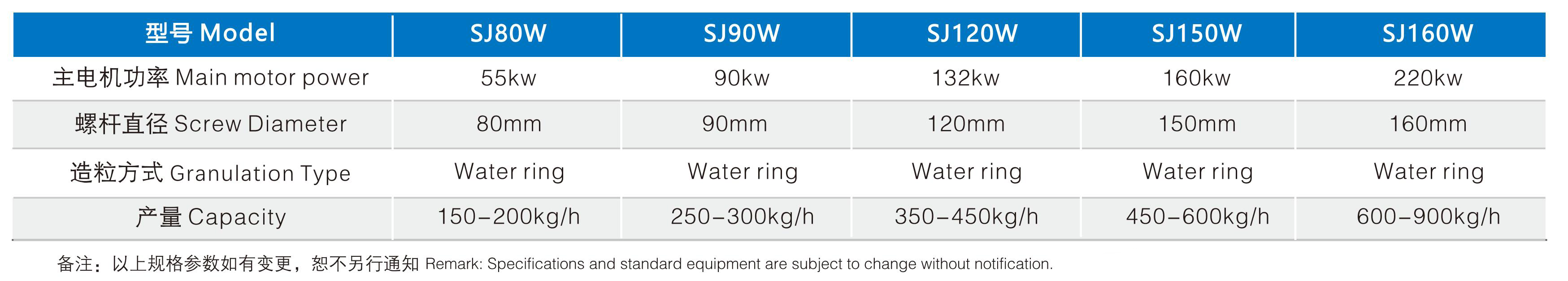

型号Model | SJ80W | SJ90W | SJ120W | SJ150W | SJ160W |
主电机功率 Main motor power | 55kw | 90kw | 132kw | 160kw | 220kw |
螺杆直径 Screw Diameter | 80mm | 90mm | 120mm | 150mm | 160mm |
造粒方式 Granulation Type | Water ring | Water ring | Water ring | Water ring | Water ring |
产量 Capacity | 150-200kg/h | 250-300kg/h | 350-450kg/h | 450-600kg/h | 600-900kg/h |
备注：以上规格参数如有变更，恕不另行通知Remark Specifications and standard equipment are subject to change without notfication | |||||
Q1: What’s the difference between water ring granulation line and strand type granulation line?
A: Water ring type cuts molten plastic directly at the die face with circulating cooling water, no strand breakage issue, more compact layout and better for soft film waste. Strand type is more suitable for rigid thick plastic scraps.
Q2: Is this line compatible with HDPE/LDPE waste film recycling projects?
A: Absolutely. It is the matched core equipment for HDPE & LDPE film recycling, and we can adjust extruder and auxiliary machine’s configuration according to your film thickness and impurity content.
