Model | Belling pipe range mm | Pipe length mm | Forming type | Cooling bracket |
SGK-32-4 | Φ16-Φ32 | 3000-6000 | Mould straight into pipe | Air cooling |
SGK-63-2 | Φ16-Φ63 | 3000-6000 | Mould straight into pipe | Air cooling |
SGK-110 | Φ50-Φ110 | 3000-6000 | Mould straight into pipe | Air cooling |
SGK-110-2 | Φ50-Φ110 | 3000-6000 | Mould straight into pipe | Air cooling |
SGK-110 | Φ20-Φ110 | 3000-6000 | Mould straight into pipe | Air cooling |
SGK-160 | Φ40-Φ160 | 3000-8000 | Mould inner rising | Water cooling |
SGK-250 | Φ50-Φ250 | 3000-8000 | Mould inner rising | Water cooling |
SGK-400 | Φ160-Φ400 | 4000-8000 | Mould inner rising | Water cooling |
SGK-630 | Φ315-Φ630 | 4000-8000 | Mould inner rising | Water cooling |
SGK-800 | Φ355-Φ800 | 4000-8000 | Mould inner rising | Water cooling |
SGK-1000 | Φ500-Φ1000 | 4000-8000 | Mould inner rising | Water cooling |

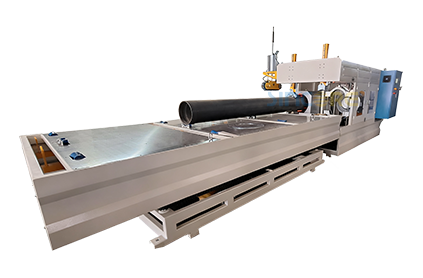

Q1：What socket types can the automatic belling machine produce?
A：It can form U‑type and R‑type sockets for rubber‑ring connection. We also provide custom‑made moulds for special bell‑end requirements.
Q2：What kind of plastic pipes can this belling machine work with?
A：Our pipe belling machine is suitable for PVC, HDPE and PP plastic pipes. It makes socket ends for water‑supply, drainage and sewer pipes.
Q3：Can I switch between different belling shapes on one machine?
A：Yes. You only need to replace the forming mould. One belling machine supports multiple socket types to meet various pipe‑connection requirements.
EXHIBITION
In a number of exhibitions have been widely recognized and praised
SHIPPING
Secure the package and ensure the safety of the transport process
CERTIFICATE
PASSED CE certification and own intellectual property rights
