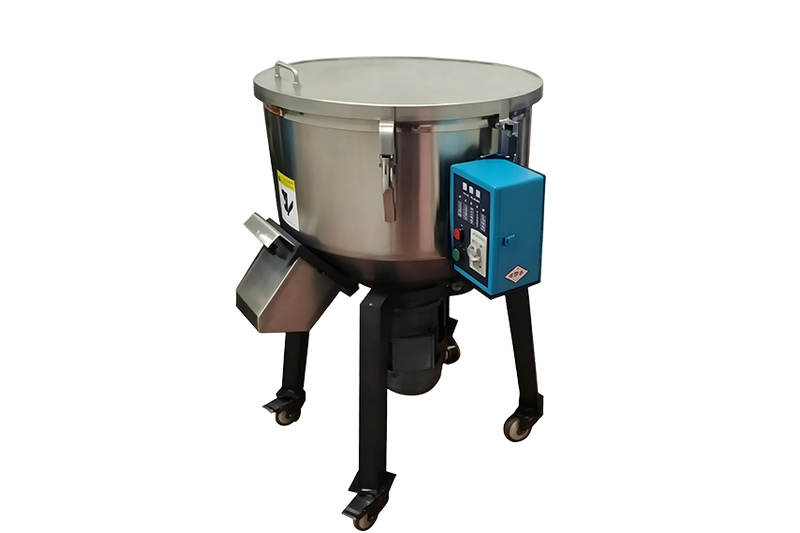

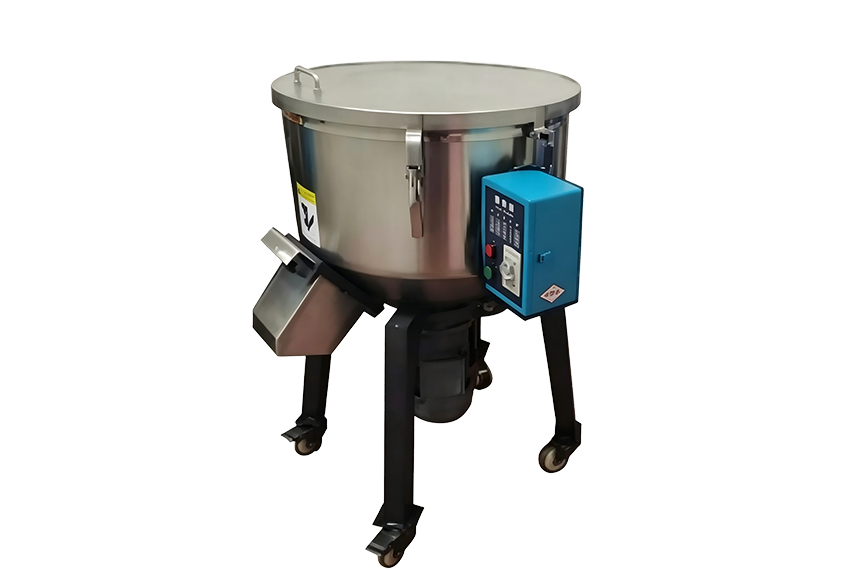

Vertical Color Mixer
>Features:
The standard model is designed for color blending of plastic pellets and recycled materials with master batches and colorants.
>Application:
With optimized mixing blades, the machine is also available for mixing various powder materials. It performs well for pellets, pellet-additive blends and pure powders. Featuring stable running, uniform mixing and easy operation, it serves plastic, chemical and other industries.widely used in injection molding, extrusion and granulation lines.

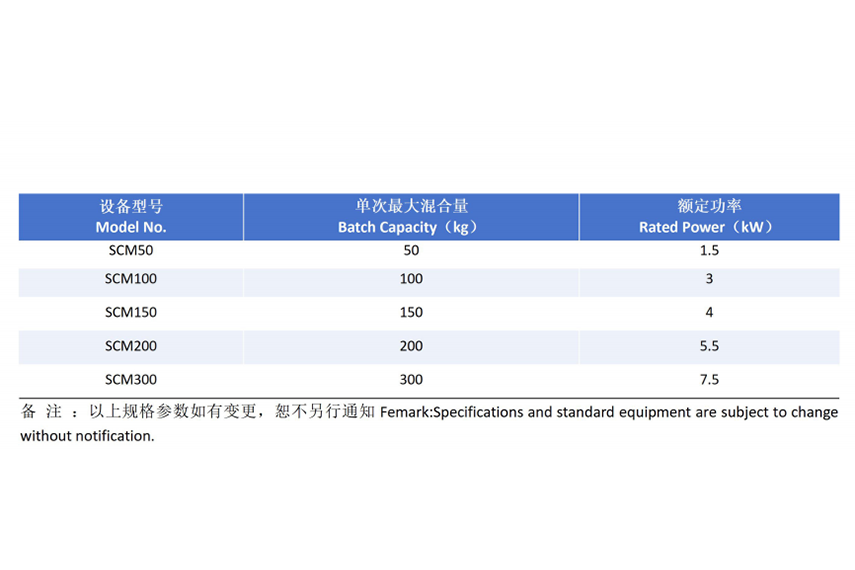

设备型号 Model No. | 单次最大混合量 Batch Capacity（kg） | 额定功率 Rated Power（kW） |
SCM50 | 50 | 1.5 |
SCM100 | 100 | 3 |
SCM150 | 150 | 4 |
SCM200 | 200 | 5.5 |
SCM300 | 300 | 7.5 |
备 注 ：以上规格参数如有变更，恕不另行通知Femark:Specifications and standard equipment are subject to change without notification.
Q1: What raw materials and production lines can this vertical color mixer handle?
A: It is mainly used for color blending of plastic pellets, recycled plastic materials, color masterbatch and colorants. It also works well with various plastic powders, additive blends. Standard models: SCM50, SCM100, SCM150, SCM200, SCM300. Widely matched with injection molding machines, PVC/PE pipe extrusion lines, WPC profile lines and plastic granulation recycling lines as pre-blending auxiliary equipment.
Q2: What structural and control advantages does this vertical color mixer have?
A: 1. Double-sealed tank cover to avoid powder leakage; lid supports pneumatic opening;
2. All mixing blades pass static-dynamic balance test for stable low-noise continuous operation;
3. Imported meters and electrical components realize automatic timing mixing control;
4. Standard equipped pulse dust removal device to reduce workshop dust pollution;
5. Custom automatic feeding system can be configured according to customer workshop layout.
Q3: Can this vertical color mixer be matched with hot & cold mixing unit?
A: Yes, it can be used as secondary color mixing equipment after hot and cold mixer unit, to further homogenize PVC dry blend before extrusion.
