Single Screw Extruder

Model SJZ series twin conical screw extruder is a kind of special equipement for extruding of PVC powder, WPC powder, or PE&wood pallets. With different sorts of molds and auxiliary machines, it can produce all sorts of PVC plastic pipes, panels, sheets, bars and granules. According to customer's requirements, most reasonable screws can be made so as to achieve best plasticity state and material quality. There is special made screw for high CaCO3 percentage fomular, with less material cost. The electrical system has mainly applied imported brands, it has multiple alarm system. The electrical control system is designed with AUTO(PLC control)& manual(Temperature control meters) control type as option. High performance distribution system of the decleration torque enhanced th durability. The cooling system has applied special design, heat emission area is enlarge, the cooling is rapid. temperature control tolerance can be+-1 C

Model:
SJ65/33,50/38,60/38,75/38,90/38,120/38
Brand:
SINCORE

Model::	SJ65/33 SJ50/38 SJ60/38 SJ75/38 SJ90/38
Availability:

Quantity:



Inquire Add to Basket

Product Description

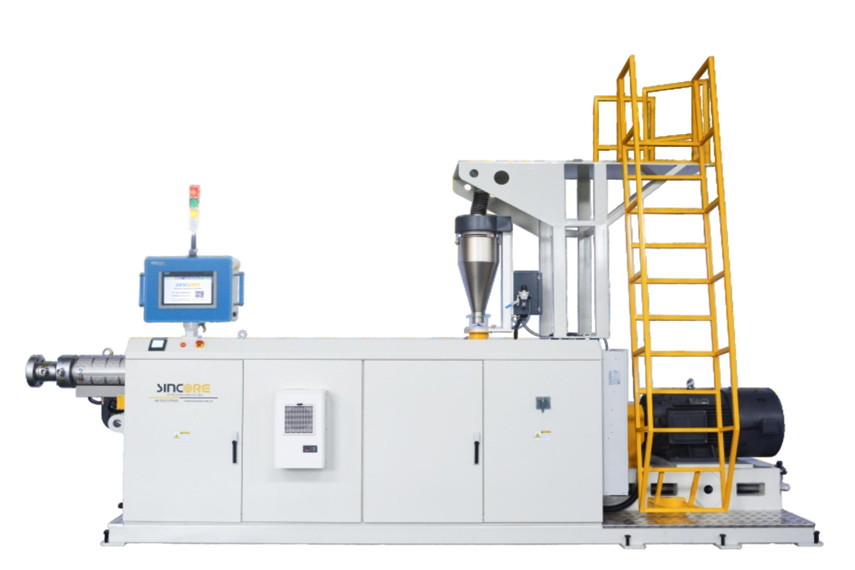

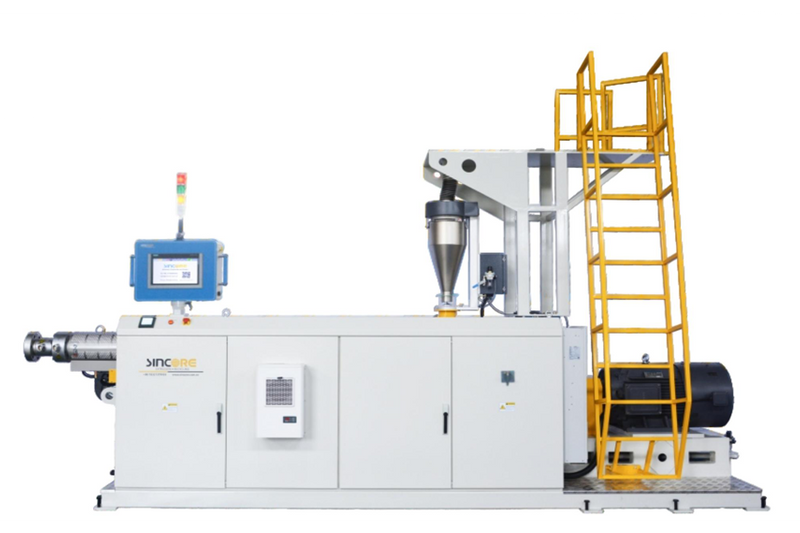

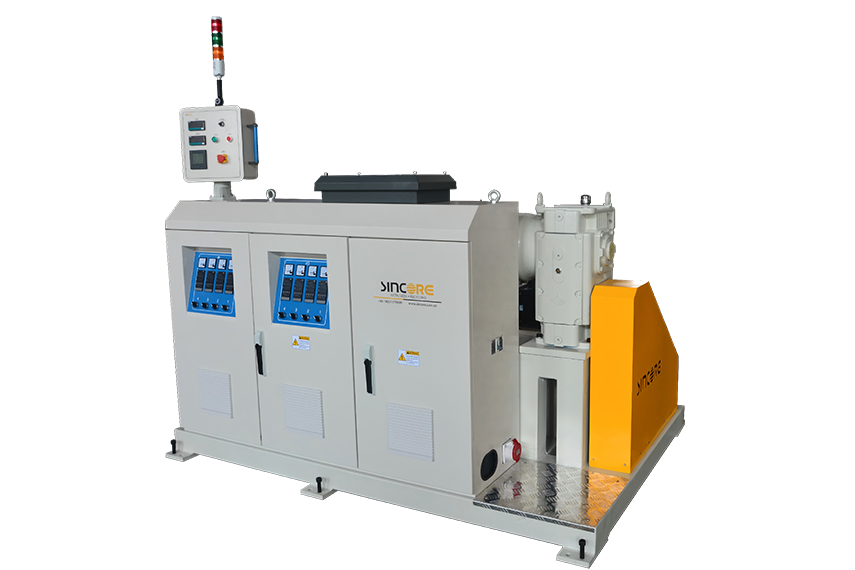

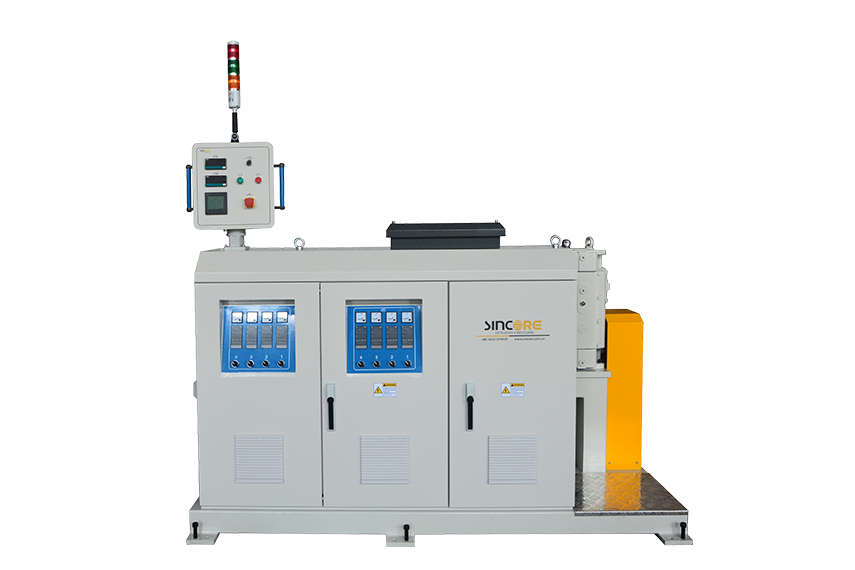

Single Screw Extruder

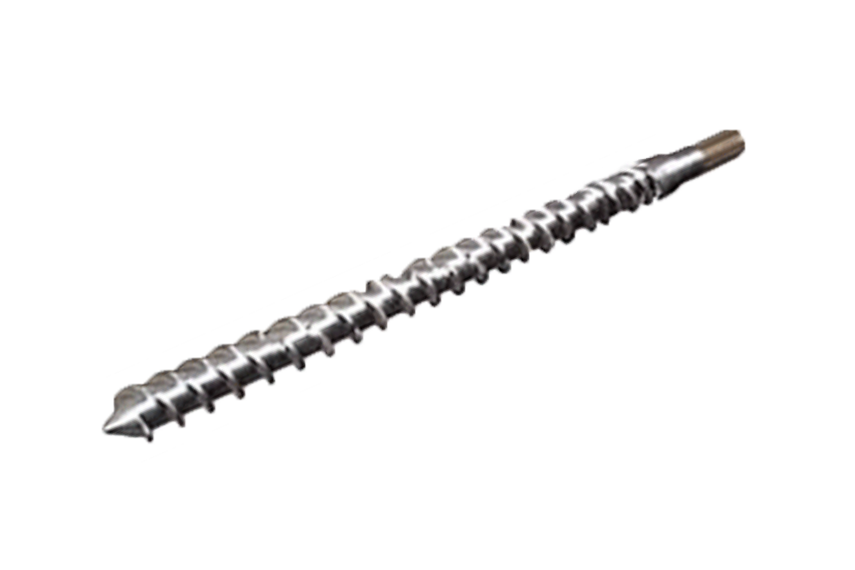

Single Screw Extruder is core extrusion equipment for plastic pipe, profile and granule production. With nitrided screw barrel, precise temperature control and automatic PLC system, it delivers stable plasticization and high continuous output.

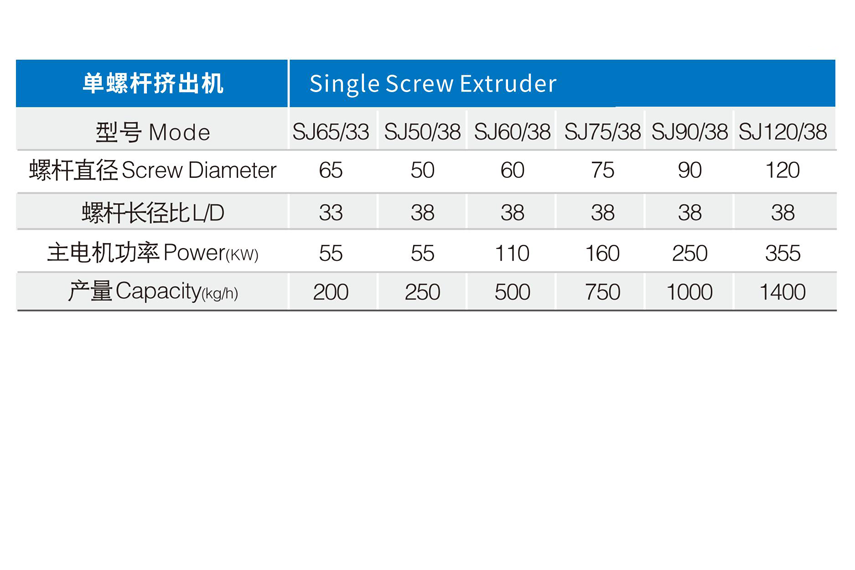

单螺杆挤出机Single Screw Extruder
型号Mode	SJ65/33	SJ50/38	SJ60/38	SJ75/38	SJ90/38	SJ120/38
螺杆直径Screw Diameter	65	50	60	75	90	120
螺杆长径比LD	33	38	38	38	38	38
主电机功率Power(KW)	55	55	110	160	250	355
产量Capacity(kgh)	200	250	500	750	1000	1400

Q1: What materials and finished products can this single screw extruder produce?

A: It is suitable for processing PE PPR material. Matched with different molds and auxiliary machines, it can manufacture various PE PPR plastic pipes, and recycled plastic pellets.

Q2: What control modes and safety protection systems are equipped on this single screw extruder?

A: Two control options are provided: automatic PLC control and manual temperature meter control. The electric system adopts imported brand components with multiple fault alarm functions. High-performance torque distribution gearbox effectively extends the service life of transmission parts. Standard models include SJ50/38, SJ60/38, SJ65/33, SJ75/38, SJ90/38, and customized specifications are supported.

Q3: What are the advantages of single screw extruder?

A: Single screw extruder features simpler structure, lower cost and easier maintenance. It delivers gentle shear, ideal for direct extrusion of pre-blended materials such as pipes and recycled pellets.
