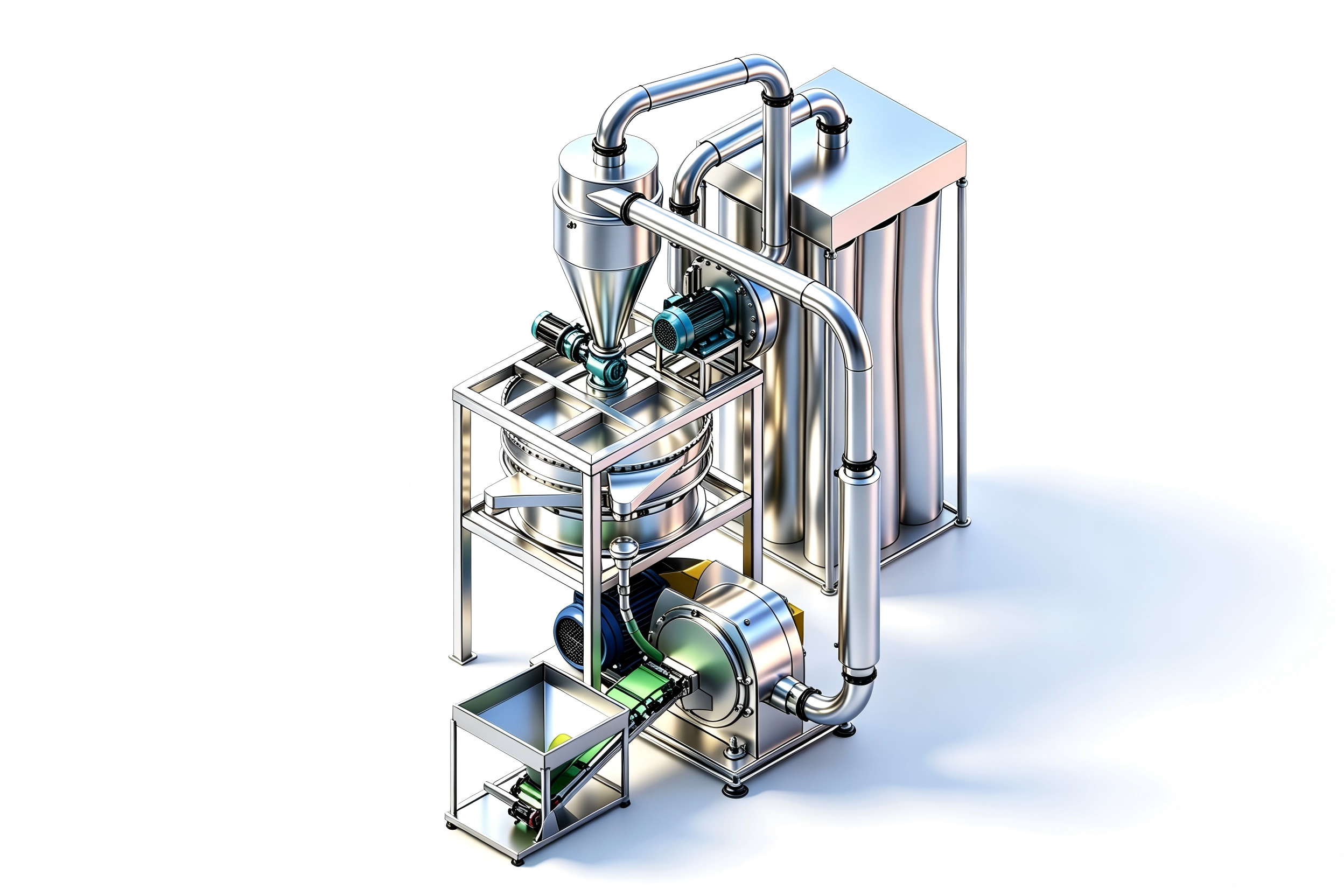

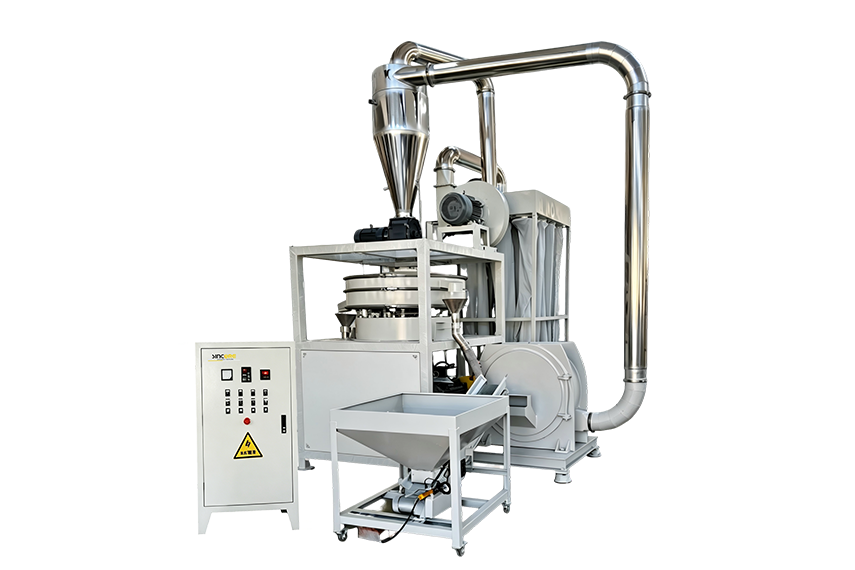

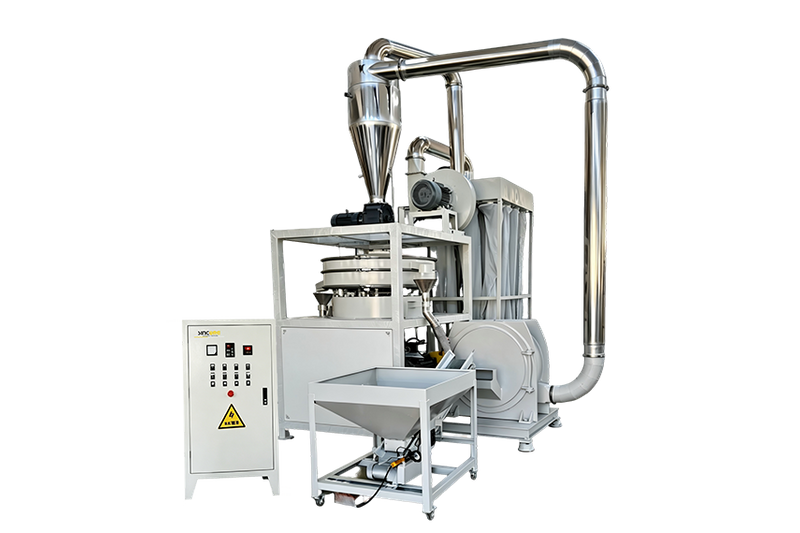

Rotor type PVC Pulverizer
>Working Principle

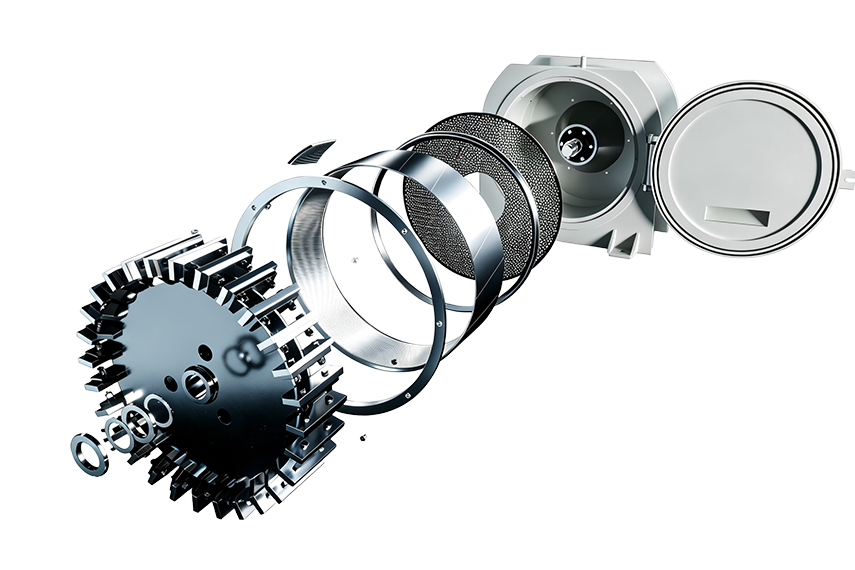

The material is fed into the grinding chamber, and ground by high-speed rotating blades and fixed tooth plates blades. Under centrifugal force and airflow, qualified fine powder is screened out via the mesh sieve, while oversized particles circulate back for re-grinding until reaching the required fineness. The whole process features low temperature to prevent PVC material degradation.
>Applications
It is specially designed for grinding rigid PVC materials, including leftover production materials, waste pipes, profiles etc. The finished PVC powder can be reused for extrusion, injection molding, wood-plastic composites and plastic modification, realizing resource recycling.
Q1: Can I adjust the fineness of finished PVC powder?
A: Yes, interchangeable screen meshes with different apertures are equipped. You can freely adjust powder mesh count according to subsequent extrusion and modification formula requirements.
Q2: What complete auxiliary systems can be matched with this pulverizer?
A: Automatic feeding machine, cyclone separator, pulse dust removal cabinet and vibrating sieve are all optional, forming a fully automatic closed grinding line without manual material transfer.
Q3: Which production lines can this rotor PVC pulverizer cooperate with?
A: It perfectly matches PVC pipe extrusion lines, PVC/WPC profile board lines and hot & cold mixing units. Recycled PVC powder can directly enter the mixing system for new formula batching, forming a complete closed-loop PVC recycling production line.
EXHIBITION
In a number of exhibitions have been widely recognized and praised
SHIPPING
Secure the package and ensure the safety of the transport process
CERTIFICATE
PASSED CE certification and own intellectual property rights
