PE Large Diameter Pipe Extrusion Line
Applications:Agricultural water supply & discharge system, architectural water supply& discharge system, gas supplsystem, etc.

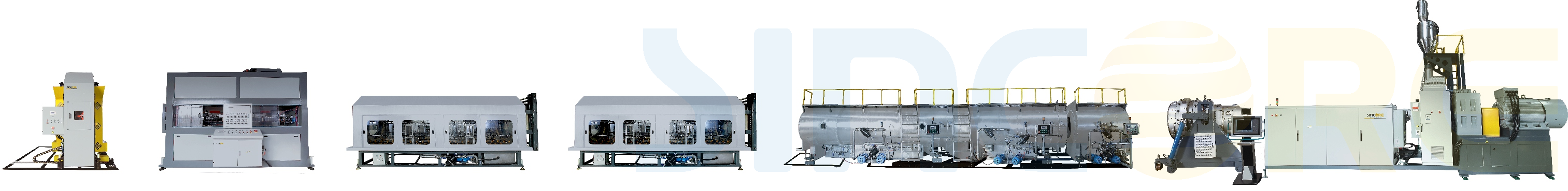

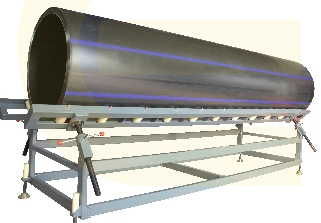

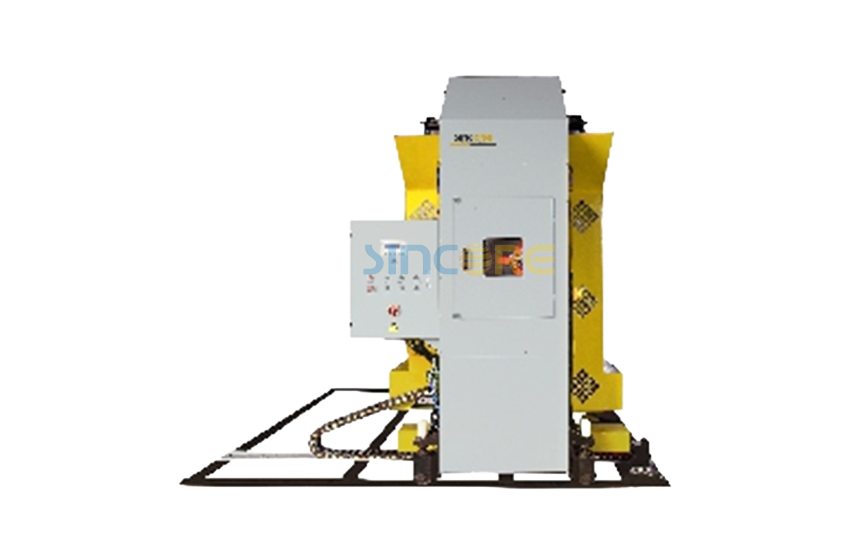

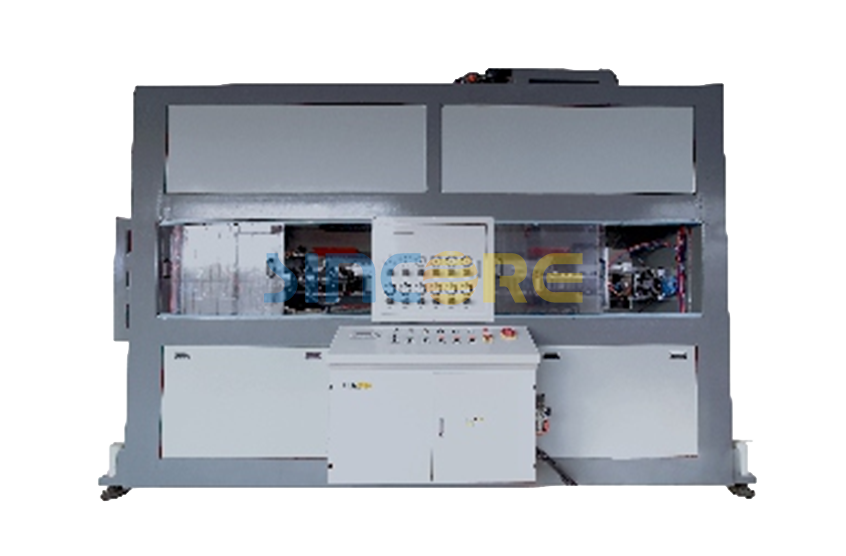

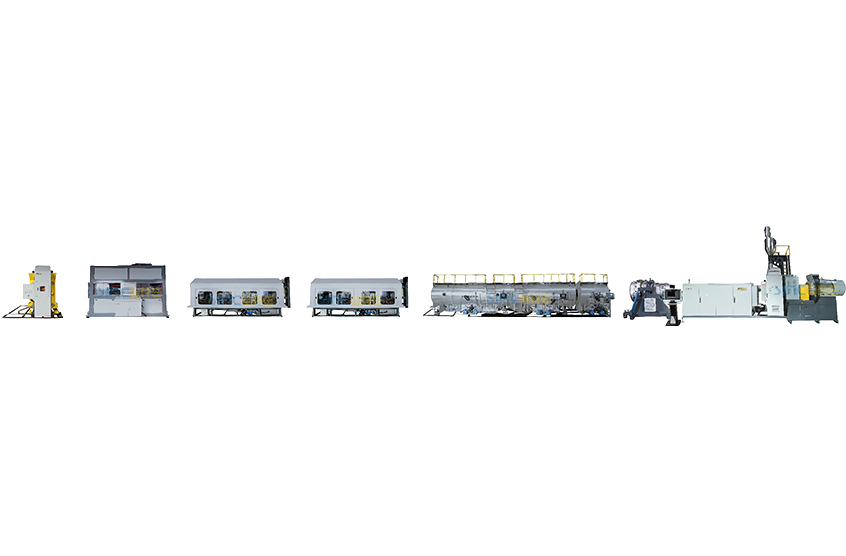

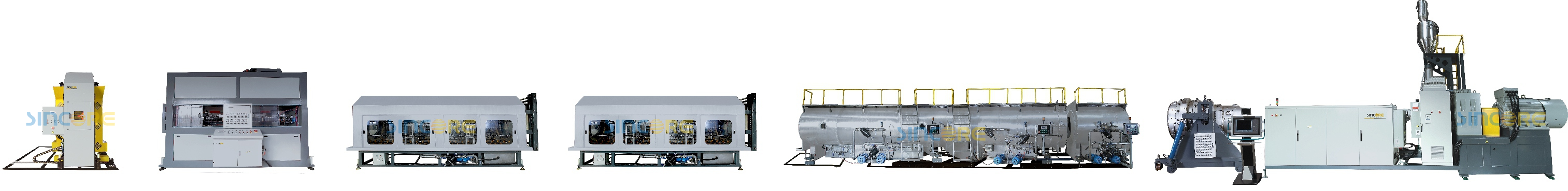

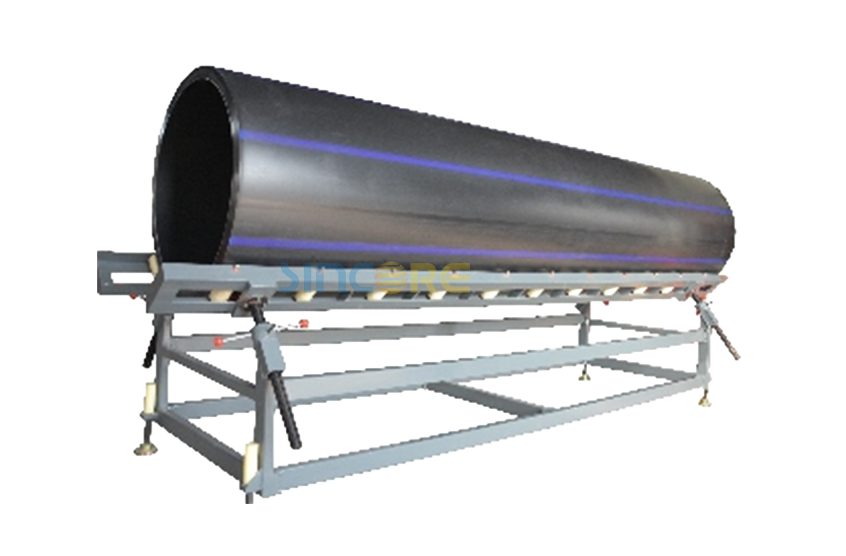

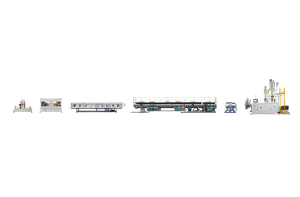

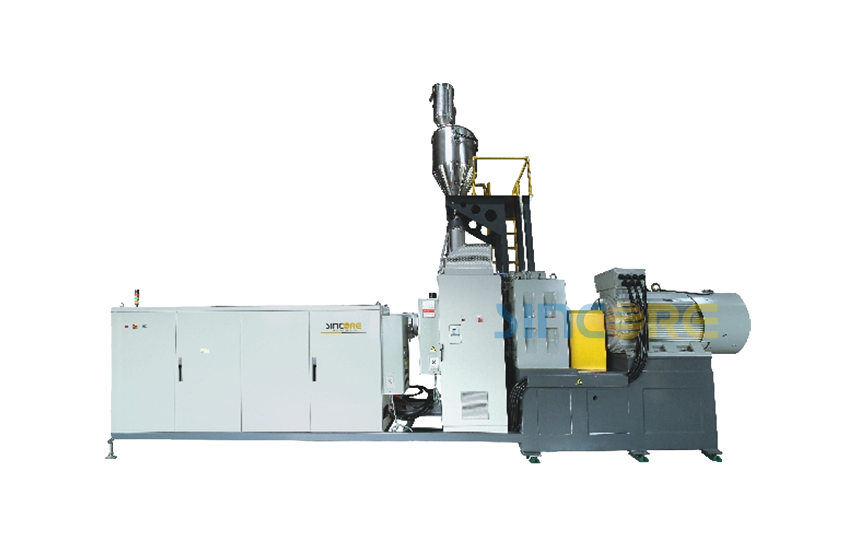

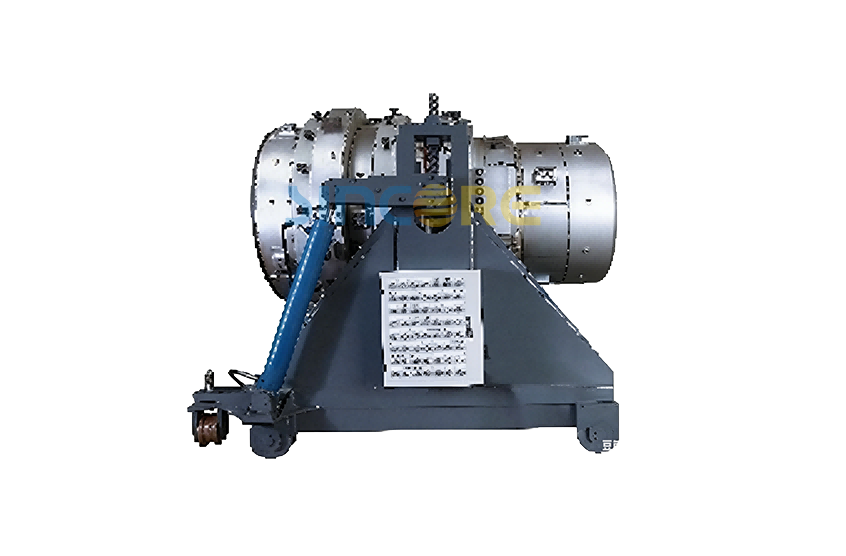

Equipment components:Single screw extruder-PE pipe mould-vacuum calibration tank-spraying cooling tank-hauler-cutter-stacker.
Product Specification:
| Extruder | SJ75/38 | SJ90/38 | SJ90/38 | SJ120/38 | SJ120/38+SJ90/38 |
| Pipe range | 125-450 | 315-630 | 355-800 | 630-1200 | 710-1600 |
| Main motor power(kw) | 160 | 200 | 250 | 355 | 355+250 |
| Downstream | GF450 | GF630 | GF800 | GF1200 | GF1600 |
| Total power(kw) | 345 | 568 | 810 | 880 | 1050 |
| Total length(m) | 60 | 67 | 70 | 72 | 85 |
| Remark:Specifications and standard equipment are subject to change without notification | |||||
Q1：
Are models SJ75/38, SJ90/38 and SJ120/38 compatible with local 415V/50Hz industrial power supply in the Middle-East? Can the whole machine carry out high-temperature-resistant and dust-proof electric‑control modification to adapt to 50℃ high-temperature workshop in summer? |
A1：
Custom-built 415V 50Hz power configuration is available. The electric cabinet can be equipped with high-temp cooling fans, dust-proof filter screens and heat-resistant electric parts. We specially upgrade equipment for scorching heat and sandy-dust climate in the Middle-East, so the control system can run stably under 50 degree Celsius working conditions.
Q2：
What is the maximum hourly output in kg? What outer‑diameter range of PE pipes can it produce? |
A2：
1. SJ75/38: 300‑450kg/h, pipe OD 125‑450mm
2. SJ90/38: 500‑700kg/h, pipe OD 315‑630mm
3. SJ120/38: 800‑1100kg/h, pipe OD 630‑1200mm
Q3：
Can you supply on‑site installation & commissioning service in Middle‑East and 12‑month warranty? Do you provide spare‑part list and fast sea shipment for the Gulf region? |
A3：
Our experienced overseas engineers will arrive at your plant for machine installation, commissioning and operator training. However, a certain service fee will be charged.A 12‑month full‑set equipment warranty is covered. Complete wearing‑part checklist will be supplied. We arrange fast sea freight to all Gulf harbours and urgent air‑express delivery for emergency spare‑part demands.
