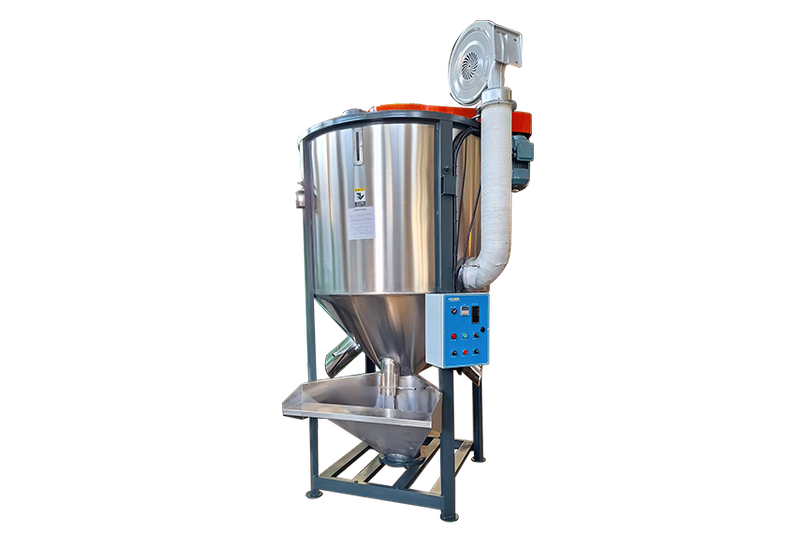

Mixing Dryer
>Features:
The plastics industry, this vertical low-speed high-torque mixer delivers uniform blending of plastic pellets and supplementary powder materials. It is suitable for PVC, PE, PP raw materials, recycled scraps, master batches, color powders and fillers.
>Application:
Developed for Commonly used for granulation, compounding, injection and extrusion pre-treatment, as well as waste plastic reprocessing. It is designed for pellet-dominant mixing. Long-term operation with pure ultra-fine or light powders is not recommended.

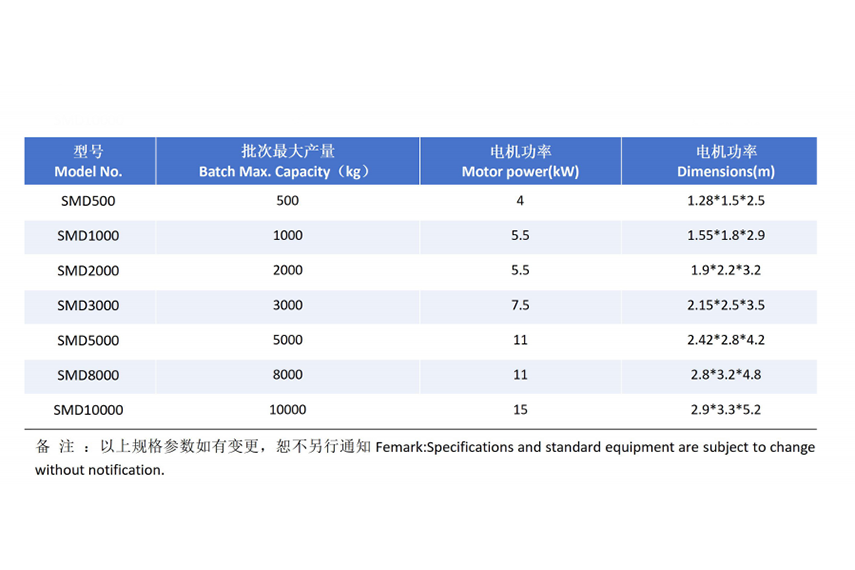

型号 Model No. | 批次最大产量 Batch Max. Capacity（kg） | 电机功率 Motor power(kW) | 电机功率 Dimensions(m) |
SMD500 | 500 | 4 | 1.28*1.5*2.5 |
SMD1000 | 1000 | 5.5 | 1.55*1.8*2.9 |
SMD2000 | 2000 | 5.5 | 1.9*2.2*3.2 |
SMD3000 | 3000 | 7.5 | 2.15*2.5*3.5 |
SMD5000 | 5000 | 11 | 2.42*2.8*4.2 |
SMD8000 | 8000 | 11 | 2.8*3.2*4.8 |
SMD10000 | 10000 | 15 | 2.9*3.3*5.2 |
备 注 ：以上规格参数如有变更，恕不另行通知Femark:Specifications and standard equipment are subject to change without notification.
Q1: What structural and control advantages does this mixing dryer have?
A: 1. Double-sealed tank cover; hot mixer lid opens pneumatically, cold mixer lid supports both pneumatic and manual opening;
2. All blades pass static-dynamic balance testing for stable low-noise operation;
3. Imported meters and electrical components support full automatic control, equipped with pulse dust removal device to reduce powder pollution;
4. Optional automatic feeding system can be matched according to customer workshop layout.
Q2: Is customized feeding and dust removal system available?
A: Automatic screw feeder, vacuum feeding machine and extended pulse dust collector are all optional configurations to realize fully closed automatic batching workshop.
