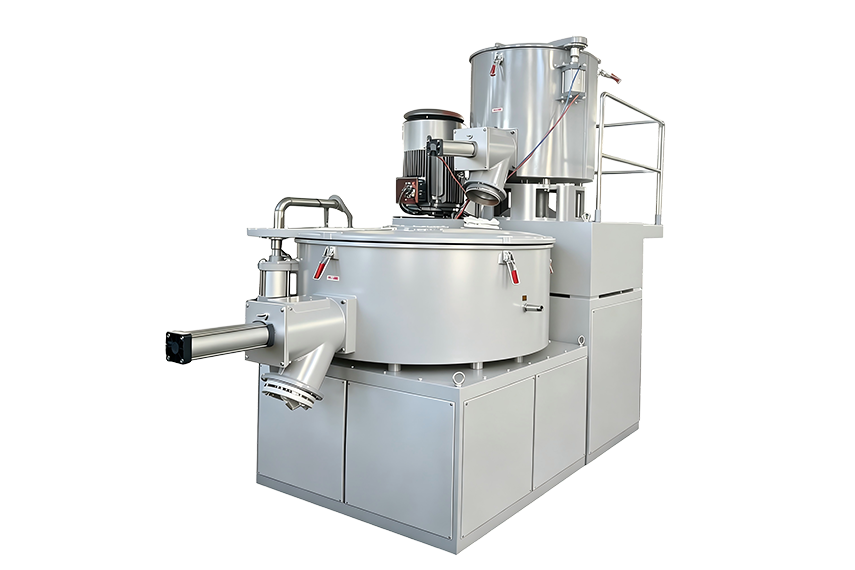

Hot&Cold Mixer
>Features:

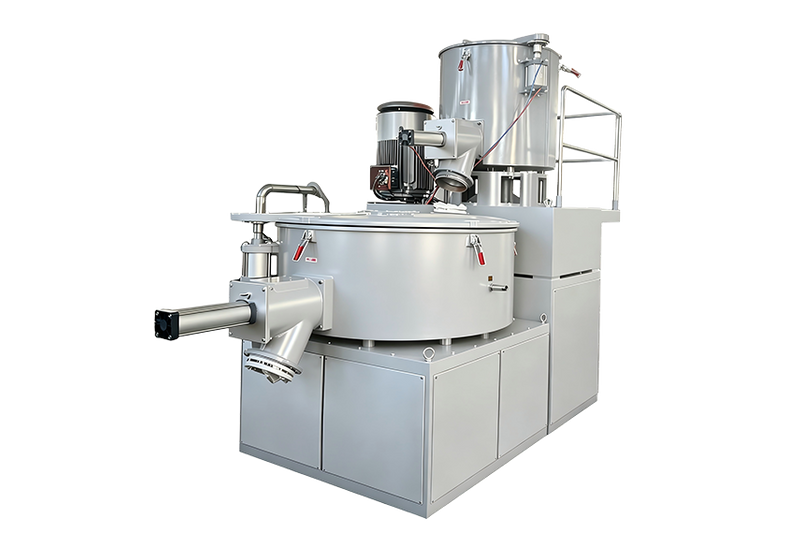

This integrated unit combines high-speed hot mixer and cooling mixer for coordinated operation. Materials are first mixed, heated and dehumidified by frictional heat in the hot mixer, then transferred to the cooling mixer for low-speed stirring and temperature reduction to avoid thermal deterioration and achieve further homogenization.
>Application:
It is suitable for PVC resin powder, plastic pellets, recycled materials, master batches, fillers and stabilizers. Widely used for plastic profiles, pipes, sheets and modified granulation. The unit features high automation and stable performance for continuous production.

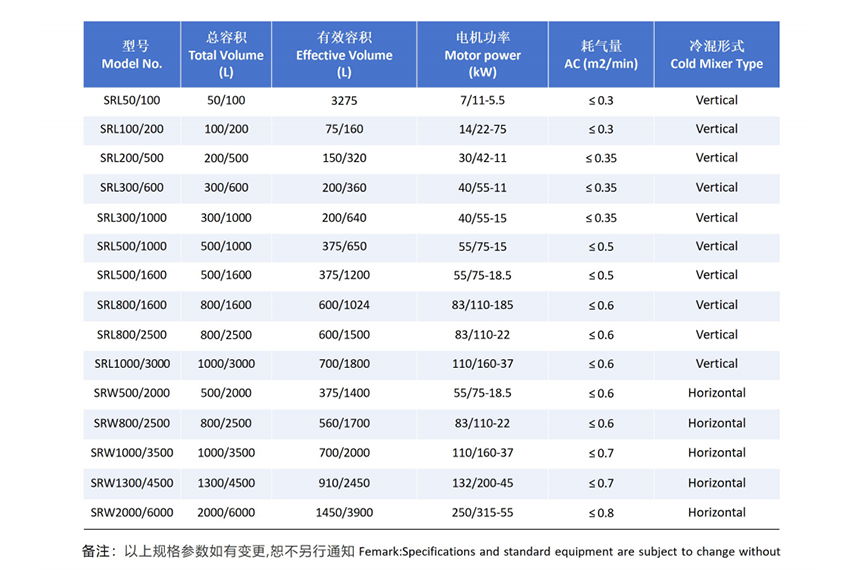

型号 Model No. | 总容积 Total Volume (L) | 有效容积 Effective Volume (L) | 电机功率 Motor power (kW) | 耗气量 AC (m2/min) | 冷混形式 Cold Mixer Type |
SRL50/100 | 50/100 | 3275 | 7/11-5.5 | ≤ 0.3 | Vertical |
SRL100/200 | 100/200 | 75/160 | 14/22-75 | ≤ 0.3 | Vertical |
SRL200/500 | 200/500 | 150/320 | 30/42-11 | ≤ 0.35 | Vertical |
SRL300/600 | 300/600 | 200/360 | 40/55-11 | ≤ 0.35 | Vertical |
SRL300/1000 | 300/1000 | 200/640 | 40/55-15 | ≤ 0.35 | Vertical |
SRL500/1000 | 500/1000 | 375/650 | 55/75-15 | ≤ 0.5 | Vertical |
SRL500/1600 | 500/1600 | 375/1200 | 55/75-18.5 | ≤ 0.5 | Vertical |
SRL800/1600 | 800/1600 | 600/1024 | 83/110-185 | ≤ 0.6 | Vertical |
SRL800/2500 | 800/2500 | 600/1500 | 83/110-22 | ≤ 0.6 | Vertical |
SRL1000/3000 | 1000/3000 | 700/1800 | 110/160-37 | ≤ 0.6 | Vertical |
SRW500/2000 | 500/2000 | 375/1400 | 55/75-18.5 | ≤ 0.6 | Horizontal |
SRW800/2500 | 800/2500 | 560/1700 | 83/110-22 | ≤ 0.6 | Horizontal |
SRW1000/3500 | 1000/3500 | 700/2000 | 110/160-37 | ≤ 0.7 | Horizontal |
SRW1300/4500 | 1300/4500 | 910/2450 | 132/200-45 | ≤ 0.7 | Horizontal |
SRW2000/6000 | 2000/6000 | 1450/3900 | 250/315-55 | ≤ 0.8 | Horizontal |
备注：以上规格参数如有变更,恕不另行通知Femark:Specifications and standard equipment are subject to change without notification.
Q1: What is the working flow and core function of hot mixer + cold mixer combined unit?
A: 1. High-speed hot mixer relies on friction heat from high-speed stirring to fully mix, heat and remove moisture from raw materials;
2. After hot mixing, materials are automatically transferred to the cold mixer for low-speed stirring and water cooling;
3. Cooling prevents high-temperature PVC material thermal degradation and caking, exhausts residual volatile gas, and achieves secondary homogenization to guarantee stable extrusion quality of finished pipes, boards and pellets.
Q2: What structural and automatic control configurations does this hot & cold mixer unit adopt?
A: 1. Double-sealed tank lids to avoid powder leakage; hot mixer cover opens pneumatically, cold mixer lid supports both pneumatic and manual opening;
2. All mixing blades pass static-dynamic balance testing for stable low-noise long-time continuous operation;
3. Imported meters and electrical components realize full automatic cyclic mixing control; pulse dust removal device is standard to reduce workshop dust pollution;
4. Custom automatic feeding system can be matched according to customer workshop layout for closed automatic batching production.
Q3: Does this mixing unit support fully automatic linkage with extruder?
A: The PLC control system can realize automatic feeding, mixing temperature timing, automatic discharging and linkage signal output, which can be connected with extruder control cabinet to form an unmanned automatic batching-extrusion production system.
