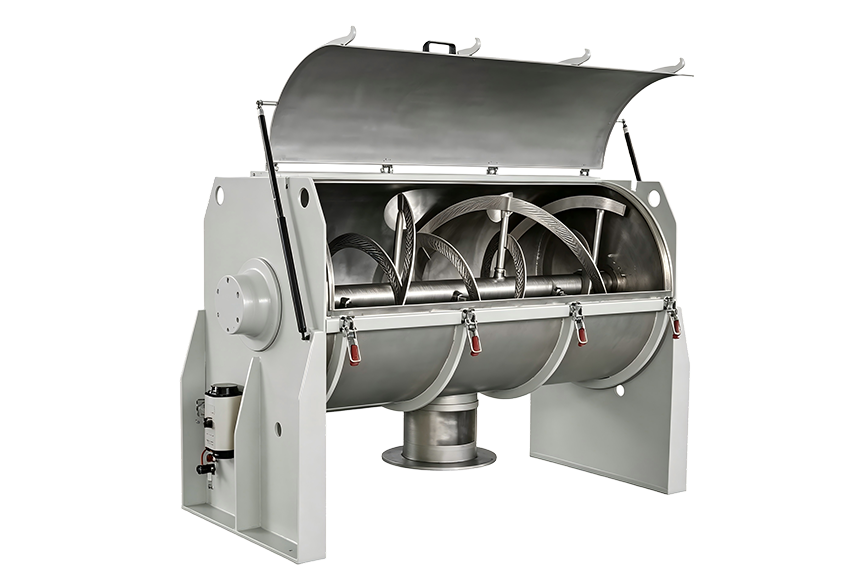

Horizontal Cold Mixer
>Features:
Equipped with a custom double ribbon agitator for thorough mixing. Low-speed stirring produces little heat, perfect for pre-mixing, re-mixing and coloring. Full-open top for easy cleaning; air-blowing bearing seal stops powder from entering bearing assemblies.
>Application:
Widely applied in plastic, chemical and food sectors. It blends pellets, powders with additives, color pigments and a small proportion of liquid additives. Common uses: plastic coloring, PVC dry blending, filler compound premixing and bulk solid cooling.

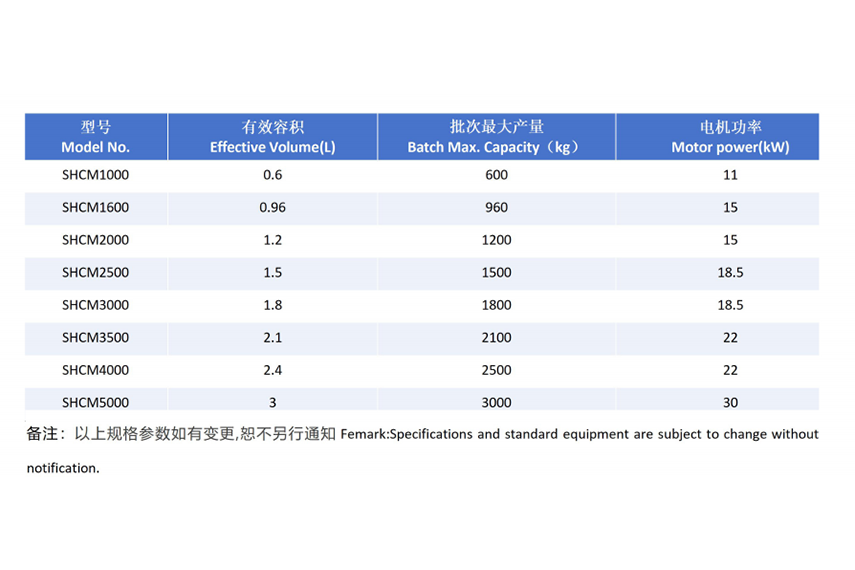

型号 Model No. | 有效容积 Effective Volume(L) | 批次最大产量 Batch Max. Capacity（kg） | 电机功率 Motor power(kW) |
SHCM1000 | 0.6 | 600 | 11 |
SHCM1600 | 0.96 | 960 | 15 |
SHCM2000 | 1.2 | 1200 | 15 |
SHCM2500 | 1.5 | 1500 | 18.5 |
SHCM3000 | 1.8 | 1800 | 18.5 |
SHCM3500 | 2.1 | 2100 | 22 |
SHCM4000 | 2.4 | 2500 | 22 |
SHCM5000 | 3 | 3000 | 30 |
备 注 ：以上规格参数如有变更，恕不另行通知Femark:Specifications and standard equipment are subject to change without notification.
Q1: What structural advantages does this horizontal cold mixer have for mixing and maintenance?
A: 1. Adopts double ribbon agitator for uniform low-heat mixing; full-open top cover for easy internal cleaning.
2. Air-blowing bearing seal prevents powder from entering the bearing to extend service life.
3. Tank lid supports both pneumatic and manual opening, with double sealing design to avoid dust leakage.
4. All blades pass static-dynamic balance test for stable low-noise operation.
Q2: What automatic control and dust removal configurations are available?
A: It adopts imported meters and electrical components to realize full automatic operation. Pulse dust removal device is equipped as standard to reduce powder pollution. Custom automatic feeding system can be added according to customer workshop layout for closed batching production.
Q3: What’s the core advantage of horizontal cold mixer over vertical cold mixer?
A: Horizontal design features larger single batch capacity, faster overall cooling speed, more stable for large-volume PVC dry blend, and is more suitable for large-scale pipe & profile factories.
