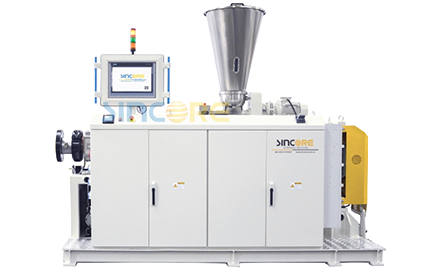

Conical Twin Screw Extruder

Model SJZ series twin conical screw extruder is a kind of special equipement for extruding of PVC powder, WPC powder, or PE&wood pallets. With different sorts of molds and auxiliary machines, it can produce all sorts of PVC plastic pipes, panels, sheets, bars and granules. According to customer's requirements, most reasonable screws can be made so as to achieve best plasticity state and material quality. There is special made screw for high CaCO3 percentage fomular, with less material cost. The electrical system has mainly applied imported brands, it has multiple alarm system. The electrical control system is designed with AUTO(PLC control)& manual(Temperature control meters) control type as option. High performance distribution system of the decleration torque enhanced th durability. The cooling system has applied special design, heat emission area is enlarge, the cooling is rapid. temperature control tolerance can be+-1 C

Model:
SJZ-51/105, SJZ55/110, SJZ-65/132, SJZ-80/156, SJZ-92/188, SJZ-110/220
Brand:
SINCORE

Model::	SJZ-51/105 SJZ-55/110 SJZ-65/132 SJZ-80/156 SJZ-92/188 SJZ-110/220
Availability:

Quantity:



Inquire Add to Basket

Product Description

Conical Twin Screw Extruder

Model	SJZ51/105	SJZ55/110	SJZ65/132	SJZ65/132	SJZ80/156	SJZ92/188	SJZ110/220
Power(kW)	18.5kw	22KW	37KW	55KW	55KW	110KW	200KW
Capacity(kg/h)	100kg/h	150kg/h	300kg/h	550kg/h	400kg/h	750kg/h	1000kg/h

Q1：What raw material and finished goods can the Conical Twin Screw Extruder process?

A：Our Conical Twin‑Screw Extruder works well with rigid PVC, soft PVC, wood‑plastic composites and filler‑modified PVC compounds. With matched moulds, it stably produces PVC pipes, various plastic profiles, PVC foam boards, WPC panels, plastic sheets and tiles. It can also handle compounding and pelletizing for modified‑PVC materials.

Q2：Can I choose different brands for the motor and gearbox of the Conical Twin Screw Extruder?
A：For this extruder, we can customize matching motors, reduction gearboxes and other main components according to your production budget and operational standards to guarantee stable running.

Q3：What well‑known brands are available for the motor and gearbox of the Conical Twin Screw Extruder?
A：Inovance PMS motor, Flender gearbox, Innomotics motor, Taiwan Sunlung gearbox and so on.
