> Application:
Agricultural water supply & water discharge system, architectural water supply & discharge system, wire laying system, etc. PVC pipes.
PVC pipe diameter range: ϕ20mm-ϕ800mm. Double layer and multiple layer PVC pipes can also be made(for example, three layer pipe with core layer foamed).
> Equipment components:

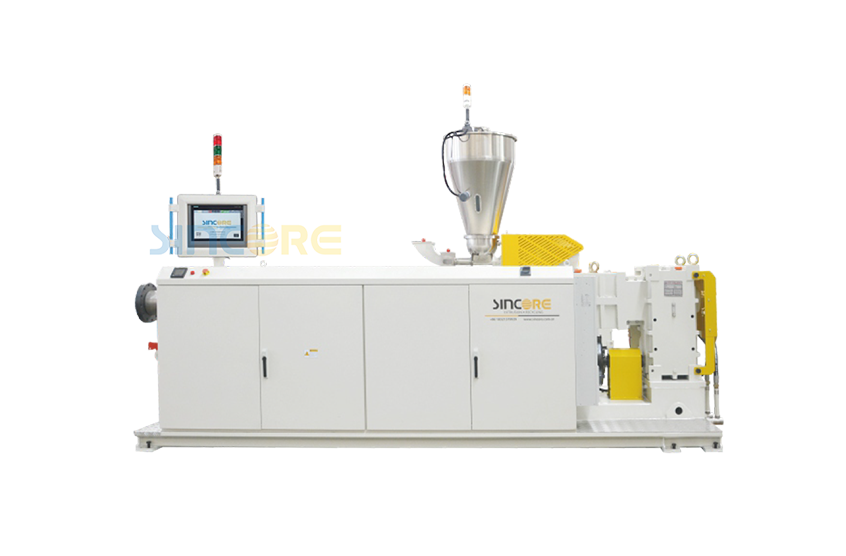

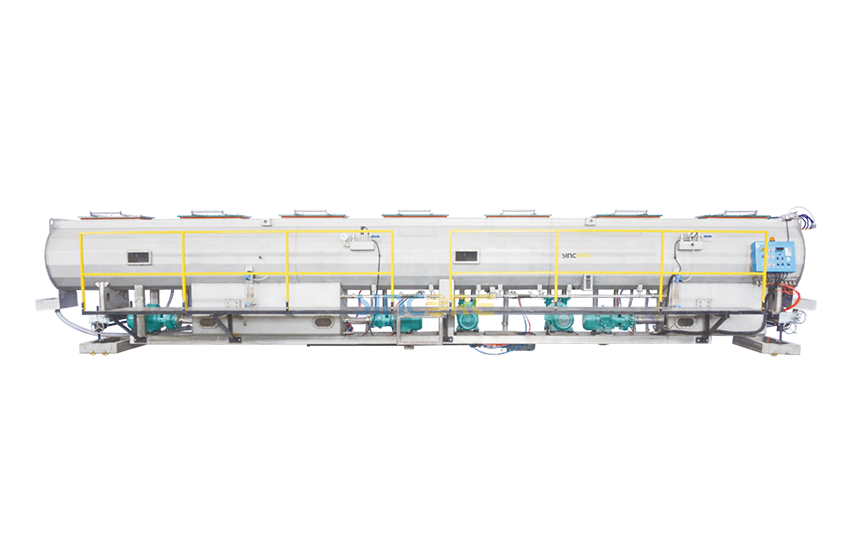

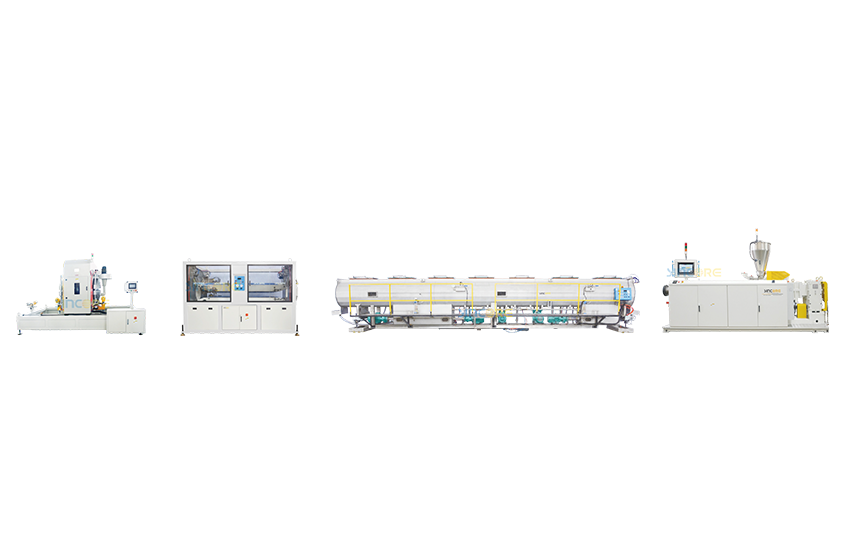

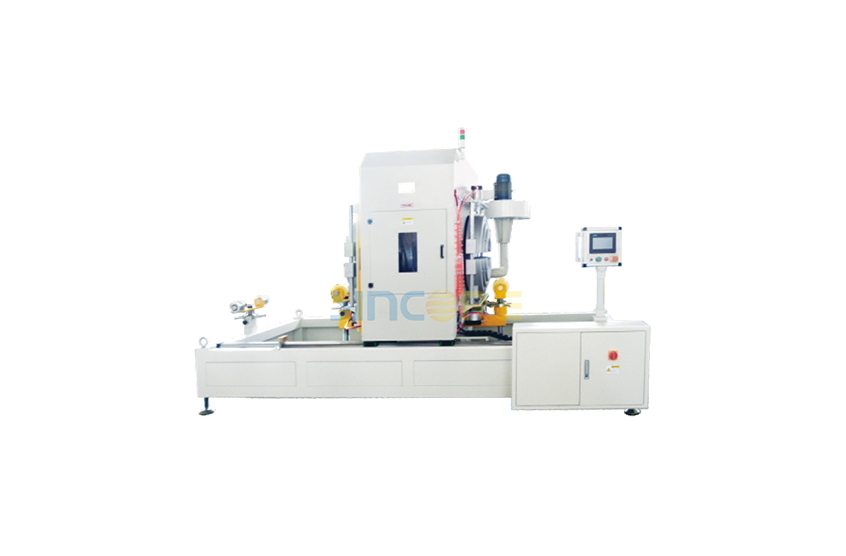

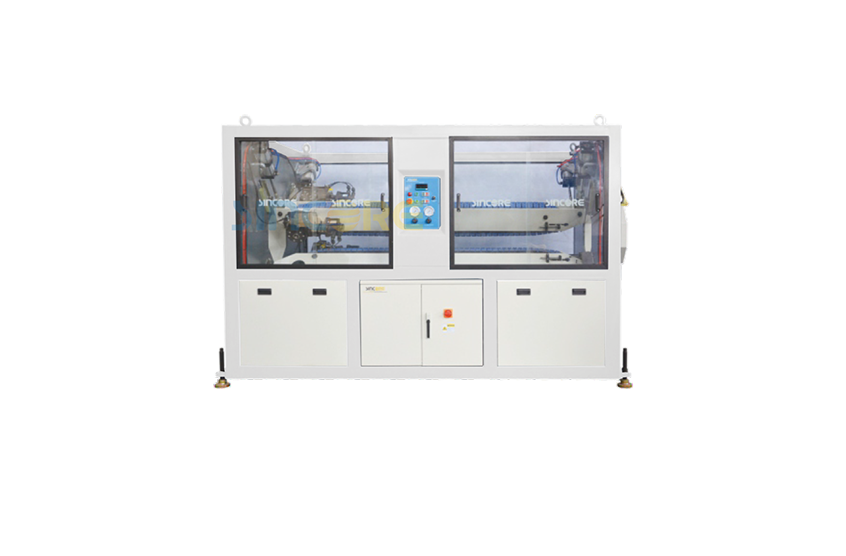

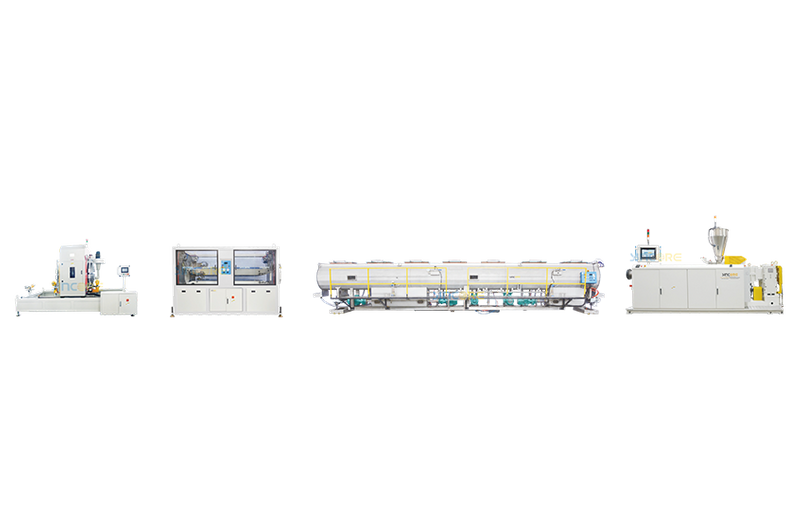

Conical (parallel) twin screw extruder-PVC pipe mould-Vacuum calibration tank-(Spraying cooling tank)-Hauler-Cutter-Stacker
> Features:
Easy operation, reliable performance, high efficiency and easy maintenance.
Extruder | SJZ65/132 | SJZ80/156 | SJZ92/188 | PS135 | |||
Pipe range | 20-110 | 50-160 | 75-250 | 75-315 | 200-400 | 315-630 | 500-800 |
Mould | Single outlet | Single outlet | Single outlet | Single outlet | Single outlet | Single outlet | Single outlet |
Downstream | GF110 | GF160 | GF250 | GF315 | GF400 | GF630 | GF800 |
Total power(kw) | 99.7 | 115.5 | 145.5 | 206.3 | 283.2 | 343.5 | 371.4 |
Total length(m) | 23.9 | 26.5 | 27.3 | 28.8 | 30 | 40.2 | 43.5 |
Remark: Specifications and standard equipment are subject to change without notification | |||||||
Q1：What pipe sizes can this PVC single‑outlet extrusion line produce?
A：Our PVC single‑outlet pipe production line covers diameters from 20 mm up to 800 mm. It can also produce double‑layer and multi‑layer PVC pipes including core‑layer foamed pipes.
Q2：What finished products can I make with this PVC pipe extrusion machine?
A：You can produce PVC pipes for agricultural drainage, building water‑supply & drainage, wire‑cable protection and other applications.
Q3：Is this PVC pipe production line easy to run and maintain?
A：Absolutely. The whole line features simple operation, stable performance, high output efficiency and convenient daily maintenance.
