PIPE SHREDDER UNIT
Shredding PE pipe diameter less than 1200mm, length less than 6m.
Including Pipe Shredder Unit (Including Hydraulic Pipe Feeding Device) and Conveyor
Technical Specification
SBPS 1500 Shredder
Hydraulic Pipe Feeding Device

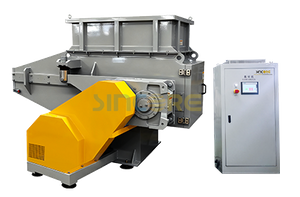

SBPS 1500 Shredder
Rotor speed：21rpm
Motor power：75kw*2sets
Feeding Hopper
Push Trolley
Rotor
Bearing Seatw
Drive
Spare Parts
PD600L type Belt Conveyor
Belt Material：PVC
Width：600mm
Length：About 5m
Power：3kw
Q1: What complete components are integrated in this pipe shredder unit, and what are the core technical parameters?
A: The whole set includes hydraulic automatic pipe feeding device, single-shaft shredder and belt conveyor.
1. Shredder;
2. Hydraulic pushing trolley ensures stable forced feeding for thick heavy pipes;
3. Belt conveyor: belt width 600mm, total length around 5m, power 3kW, PVC anti-slip belt for smooth material transfer after shredding.
Q2: Can this pipe shredder unit be matched with your plastic granulation lines?
A: Yes. The conveyor discharges coarse shredded pipe fragments, which can be directly transported to our heavy-duty granulator for secondary fine crushing, then connected with dewatering machine and extruder to form a complete waste pipe granulation recycling system.
Q3: Is the finished shredded size adjustable?
A: Interchangeable screen mesh at the bottom of the shredding chamber is optional. Different aperture screens can be installed to control the output fragment size according to your follow-up processing requirements.
