>Applications:
The washing line is for PE/HDPE/LDPE/PP/HIPS waste
>Equipment composition:

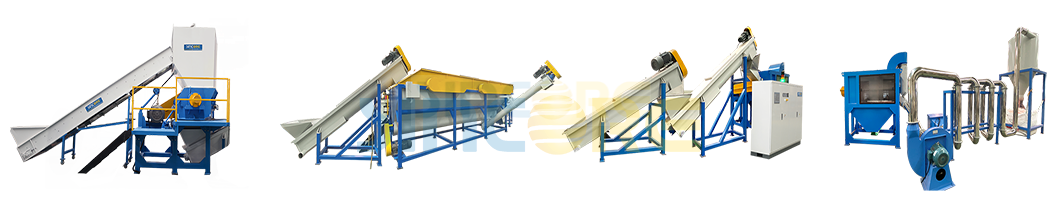

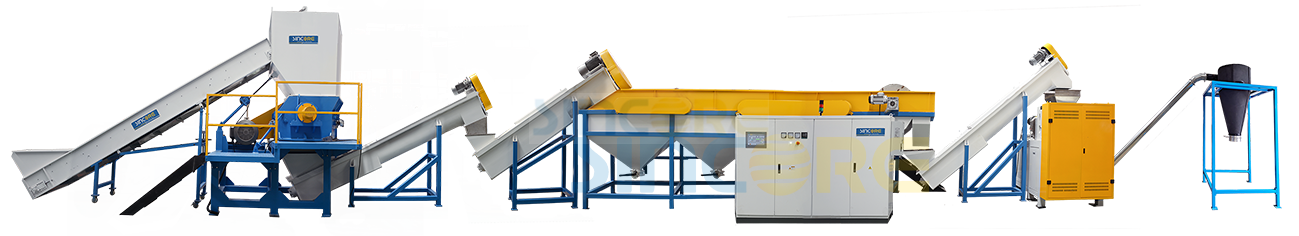

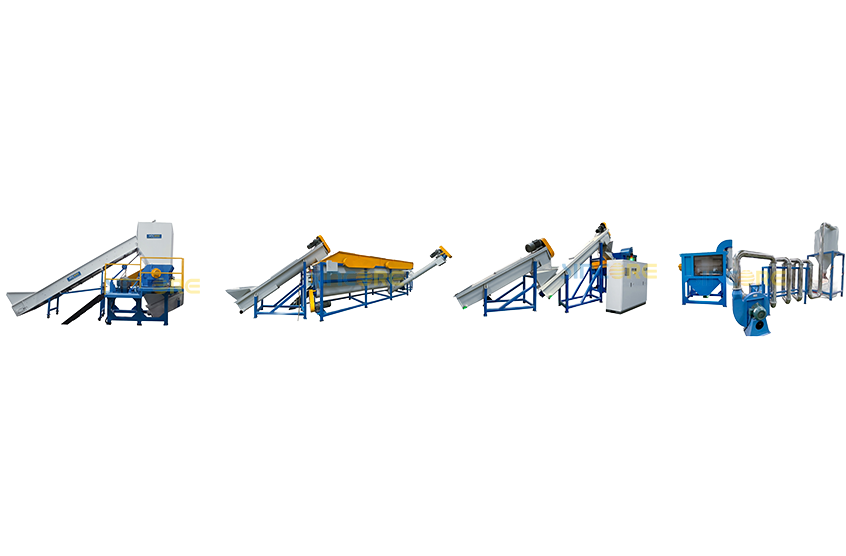

Belt conveyor—Crusher—Belt conveyor—Friction washing—Sink-float tank—Friction washing—Sink-float tank
-Squeezing compactor-Crusher-Suction unit(Included Silo)
Model | CW300A | CW500A | CW1000A | CW300B | CW500B | CW1000B |
Capacity | 300kg/h | 500kg/h | 1000kg/h | 300kg/h | 500kg/h | 1000kg/h |

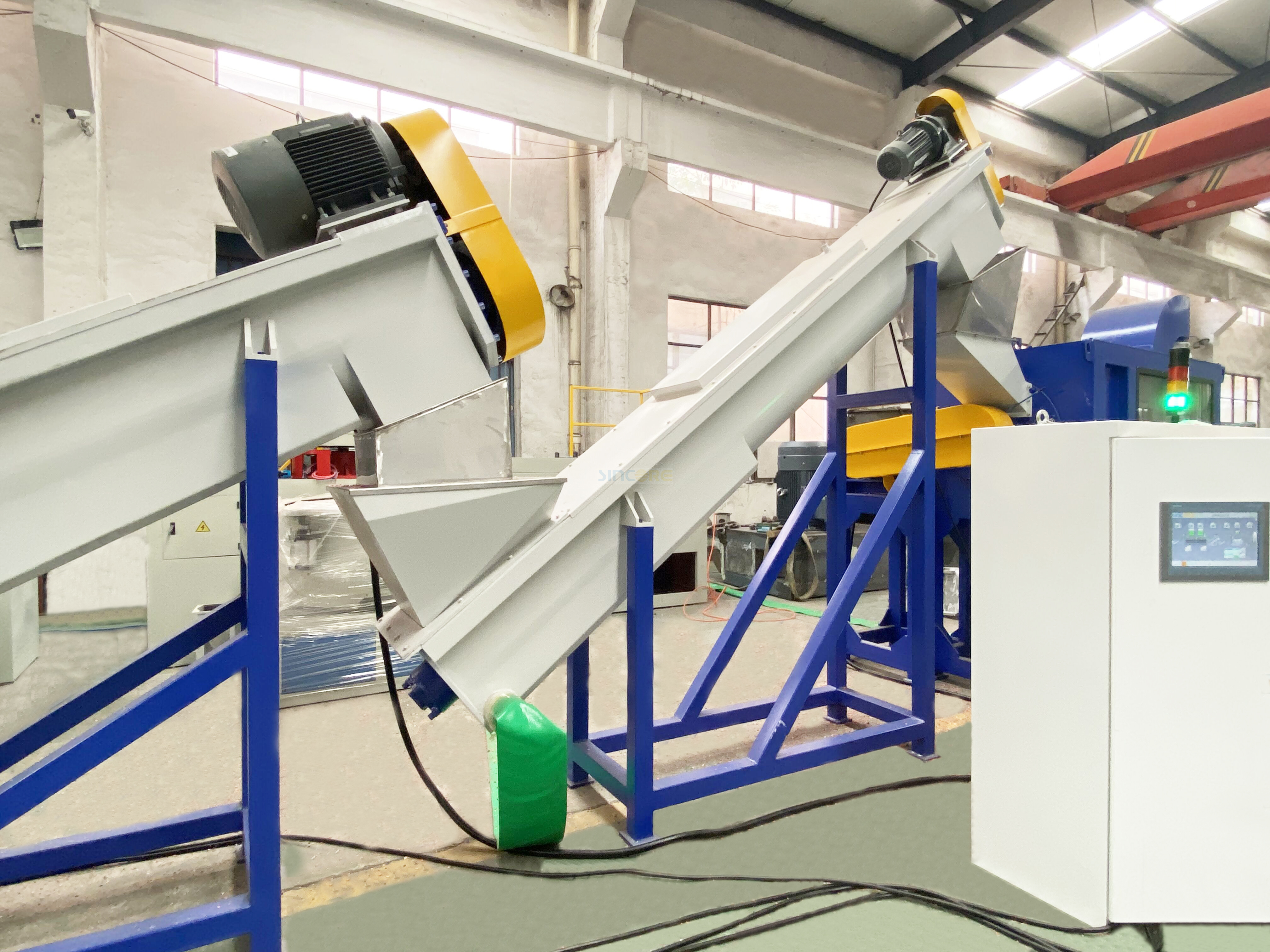

Belt Conveyor/ Screw Loader | Included | Included | Included | Included | Included | Included |

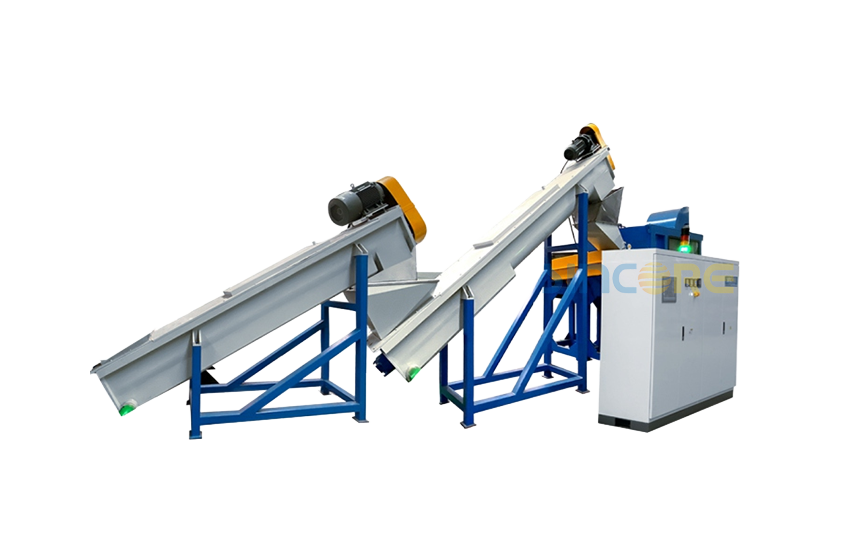

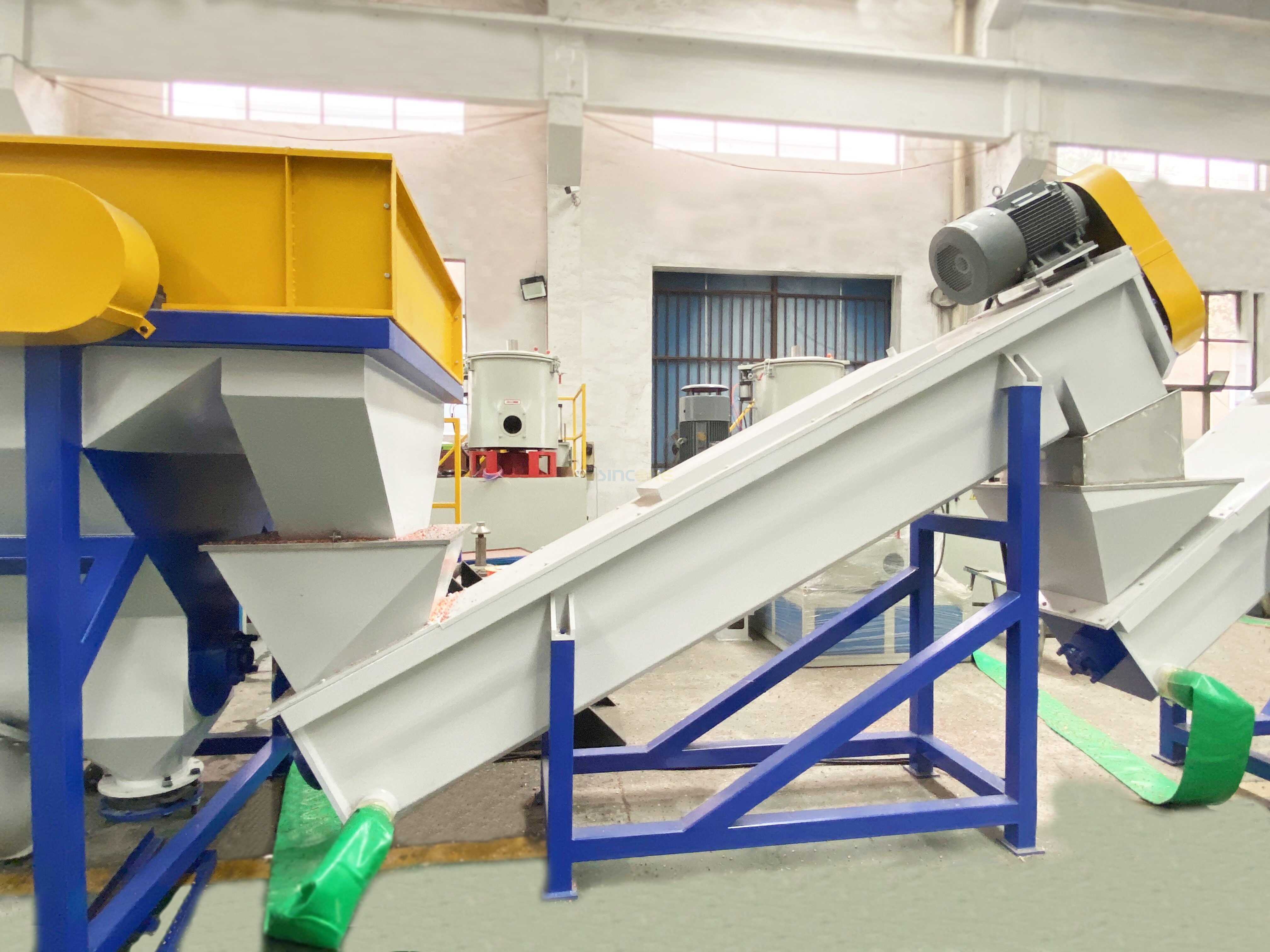

Friction Washer | 1 set Included | 1 set Included | 1 set Included | 2 sets Included | 2 sets Included | 2 sets Included |

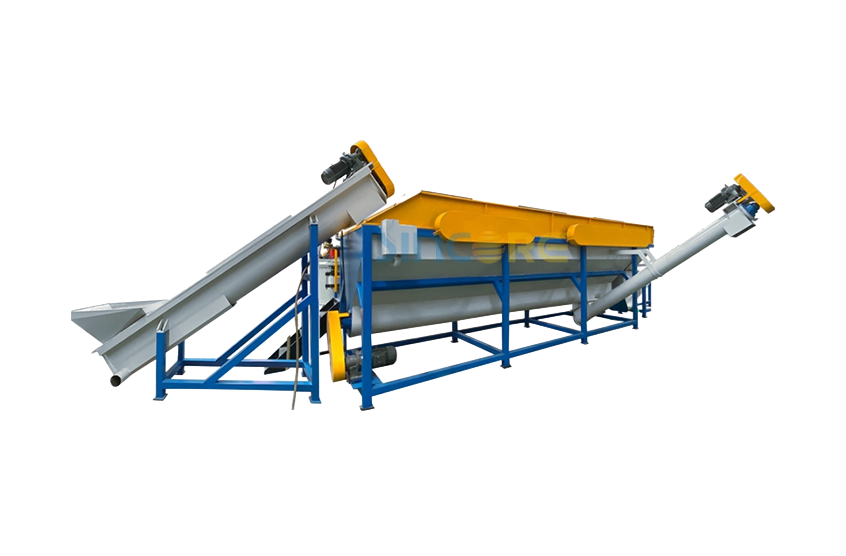

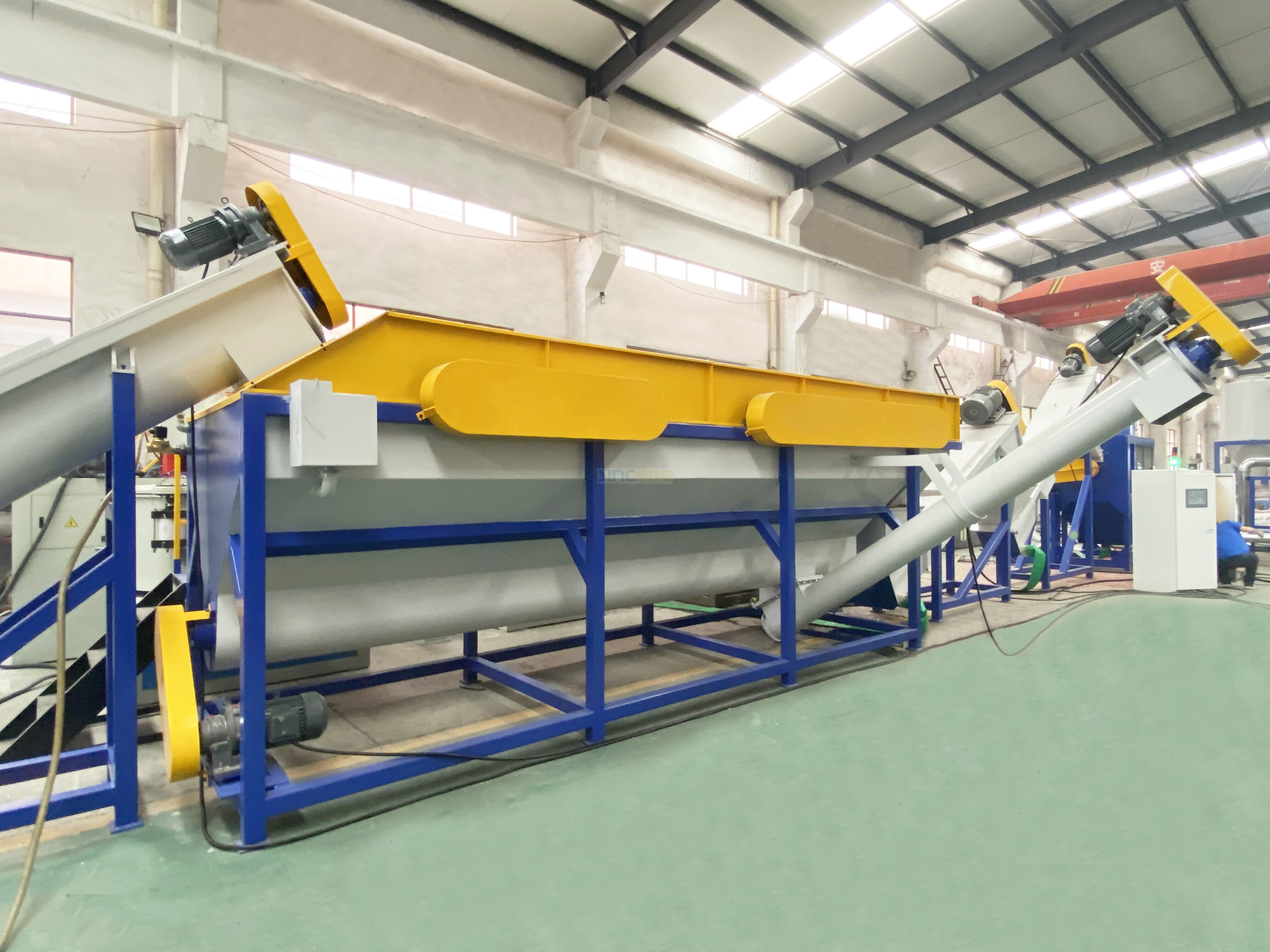

Floating Washer | 1 set Included | 1 set Included | 1 set Included | 2 sets Included | 2 sets Included | 2 sets Included |
Squeezing Compactor | Included | Included | Included | Included | Included | Included |
Silo | Included | Included | Included | Included | Included | Included |
Q1：What waste materials can our PE‑PP scraps recycling washing plant process?
A：This washing line is the best choice for washing waste PE/HDPE/LDPE film,silk,shopping bag,woven bags etc.
Q2：What is the complete working procedure of the PE‑PP waste washing recycling line?

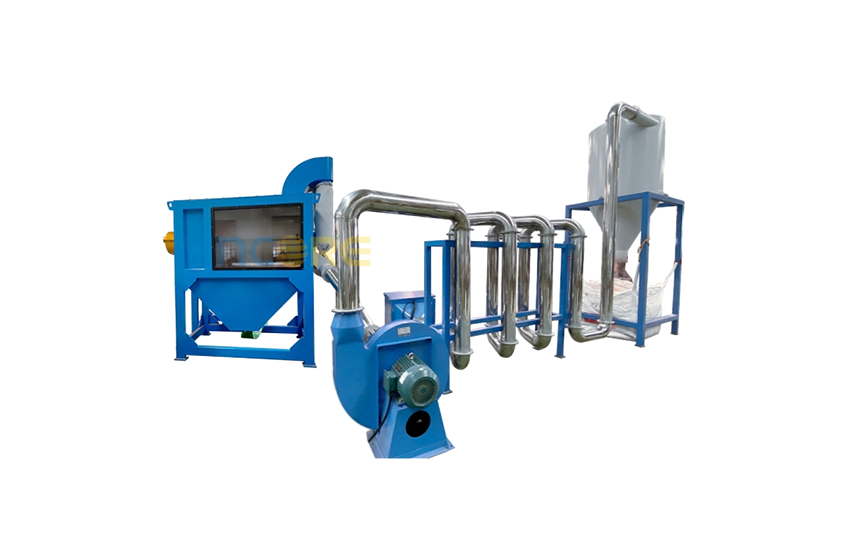

A：Raw‑material feeding → crushing → pre‑washing → high‑speed friction washing → sink‑float separation → dewatering & drying. Final dry plastic flakes can be directly fed into your plastic extruder.
Q3：Can this washing plant work with your granulation line together?
A：Absolutely. It can perfectly connect with our HDPE/LDPE water‑ring granulation line to realize full‑process waste‑plastic recycling from washing to pelletizing.
