PVC/WPC Panel Extrusion Line

Share to:
sharethis sharing button

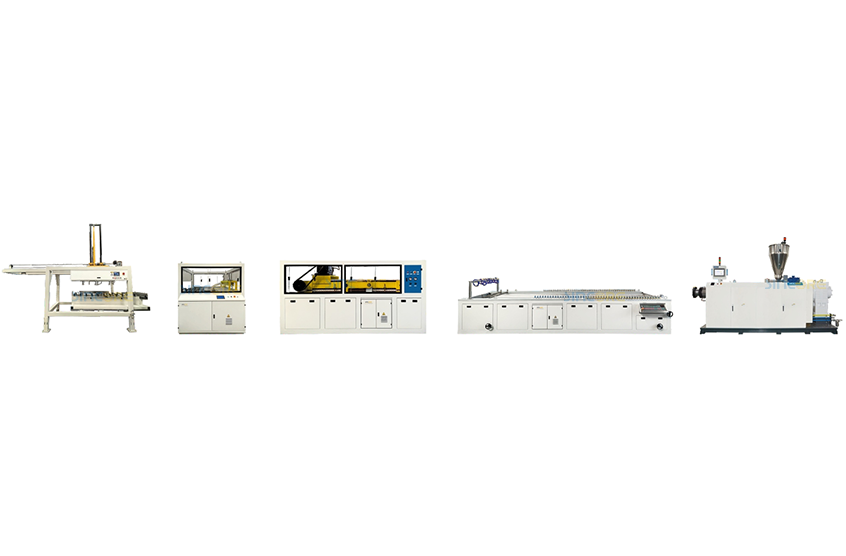

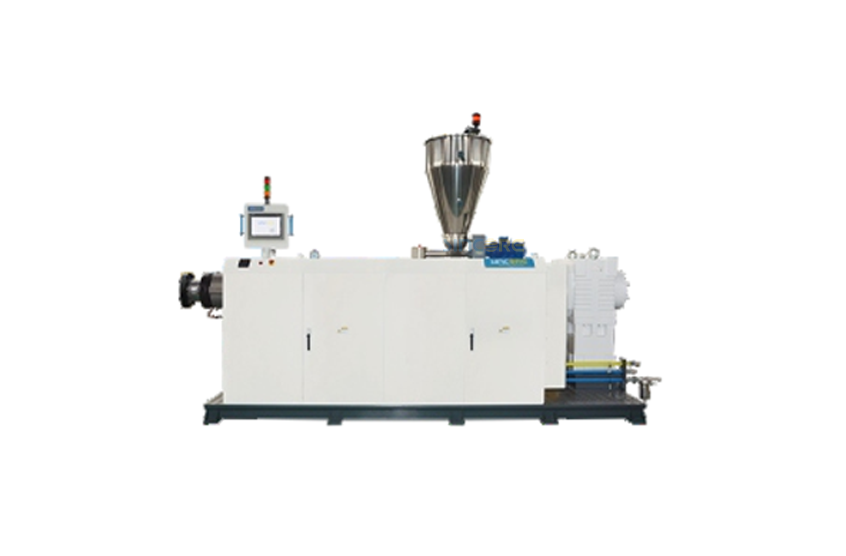

This line applies SJZ serials of conical twin screw extruder with imported inverter, which provides wide adjusting range and precise temperature control. The downstream equipment includes calibration table, hauler, cutter and stacker.

The calibration table is equipped with strong forced cooling system so that it can provide perfect calibrating effect.

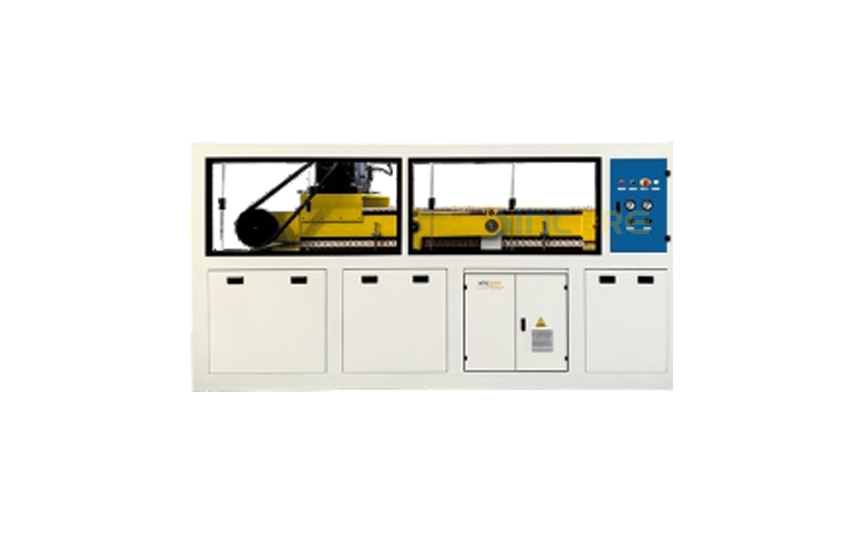

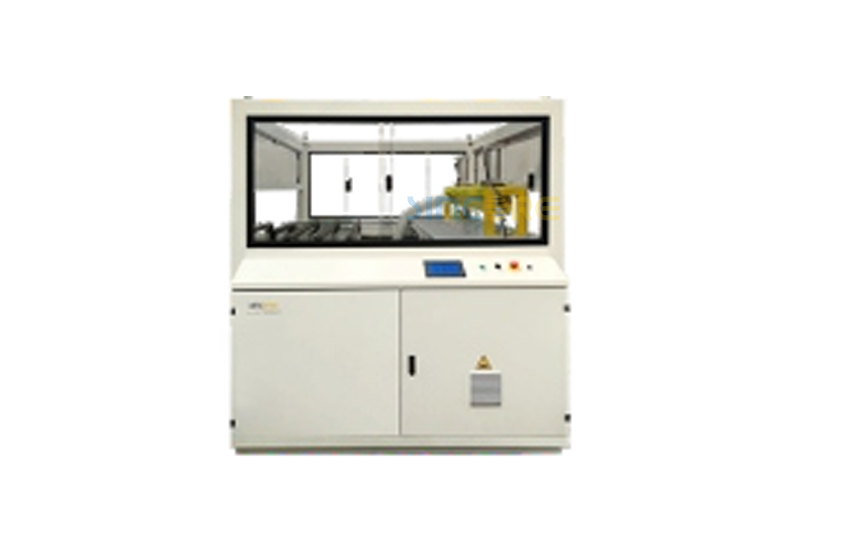

The caterpillar hauler is equipped with precision gear motor and inverter, which possesses reasonable structure, strong and stable hauling force. The cutter is equipped with PLC control system which helps to set length and provide accurate automatic cutting. The stacker is covered with rubber grip blocks to prevent products from damage.

  • YF600,YF800,YF1000,YF1250

  • SINCORE

Material:
PVC
Size:
600
Availability:
Quantity:
Inquire Add to Basket

>Applications:

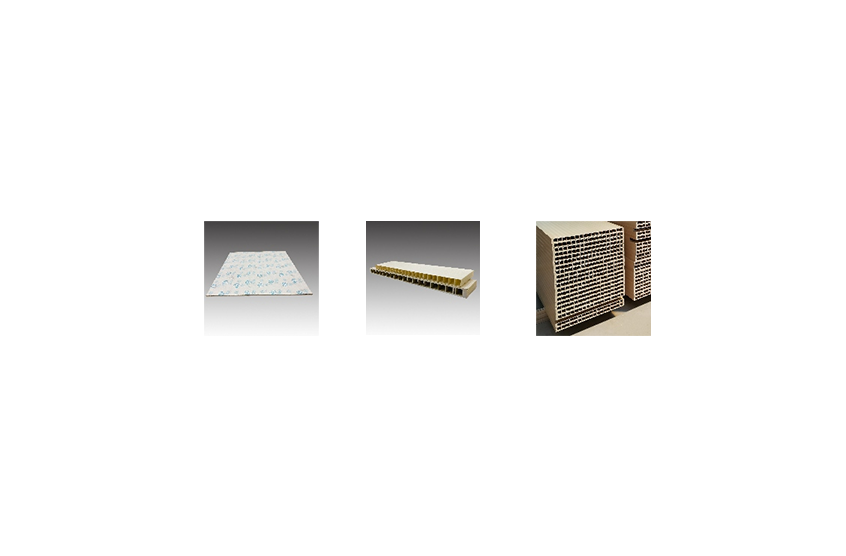

PVC profiles such as window&door profiles, PVC window sills, etc; WPC profiles such as decking, door panels, kitchen,etc.


>Equipment components:

Conical(parallel)twin screw extruder—profile,board mould—vacuum calibration table—hauler—cutter—stacker


>Features:

According to customer’s requirements, the screw with the most reasonable structure is prepared to achieve the best plasticity state and high plasticizing ability, low power consumption, high cost performance.


Downstream

YF600

YF800

YF1000

YF1250

Products

600 panel

800 board

1000 board

1250 board

Mould

Single

Single

Single

Single

Downstream power(kw)

40

72

143

143

Remark：Specifications and standard equipment are subject to change without notification.
