PVC Pipe Belling Machine on PVC Pipe Extrusion Line

After PVC pipe cutting,  A forming mould is pushed into the pipe mouth to enlarge and belling the socket. The pipe end is cooled rapidly to fix the expanded‑socket shape for pipe‑to‑pipe socket connection.

PVC pipe is conveyed into heating oven and heating

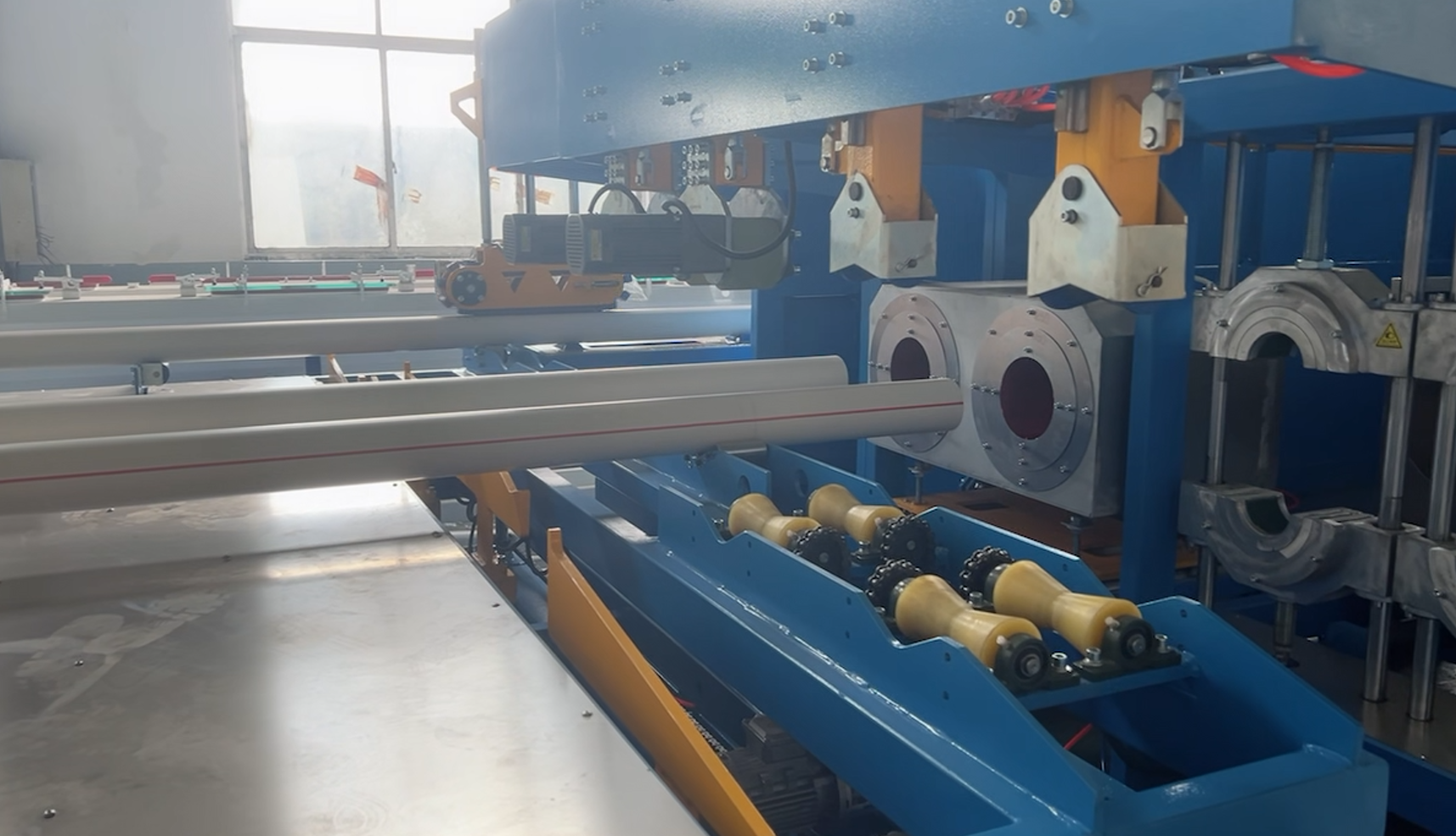

Pipe conveying to belling machine

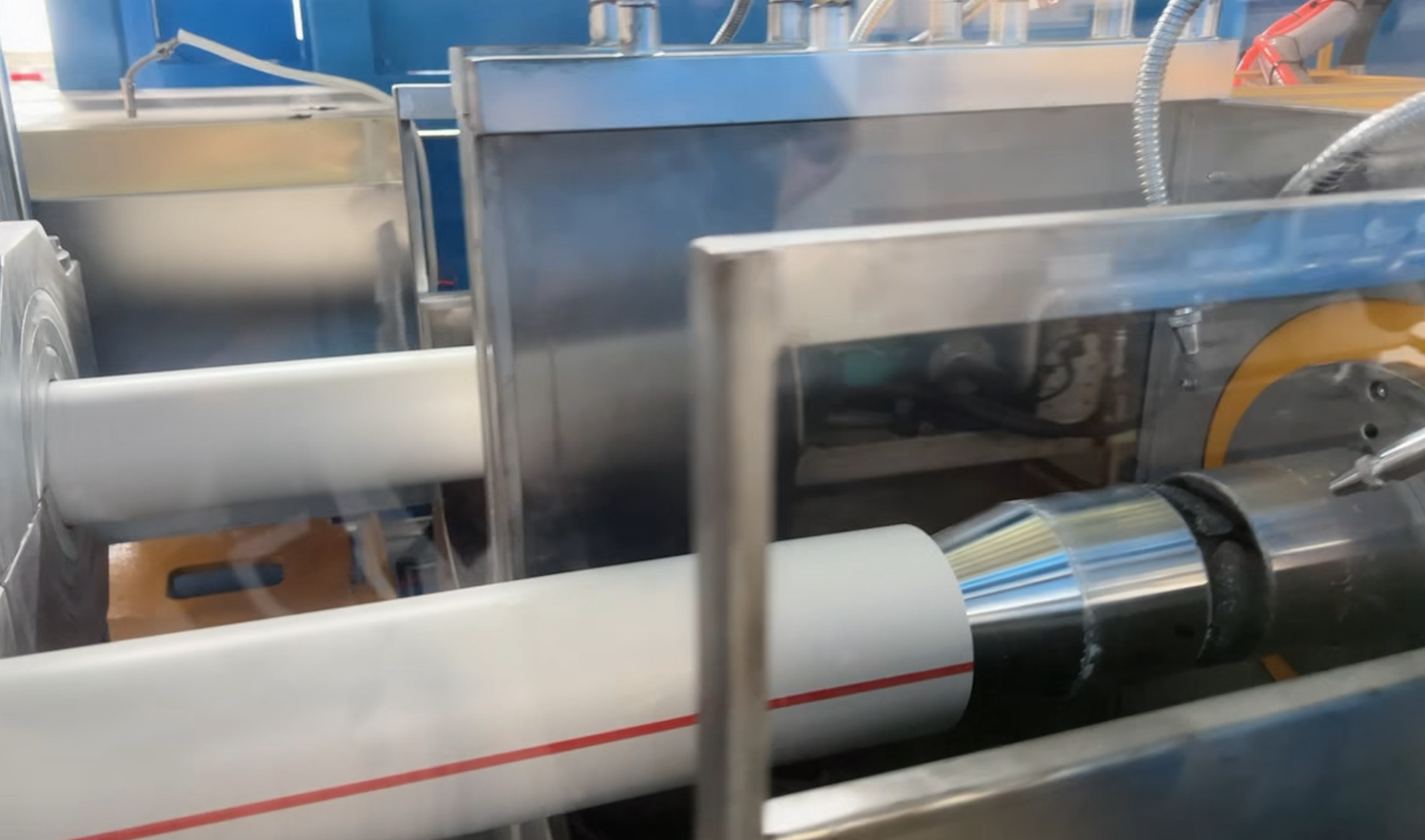

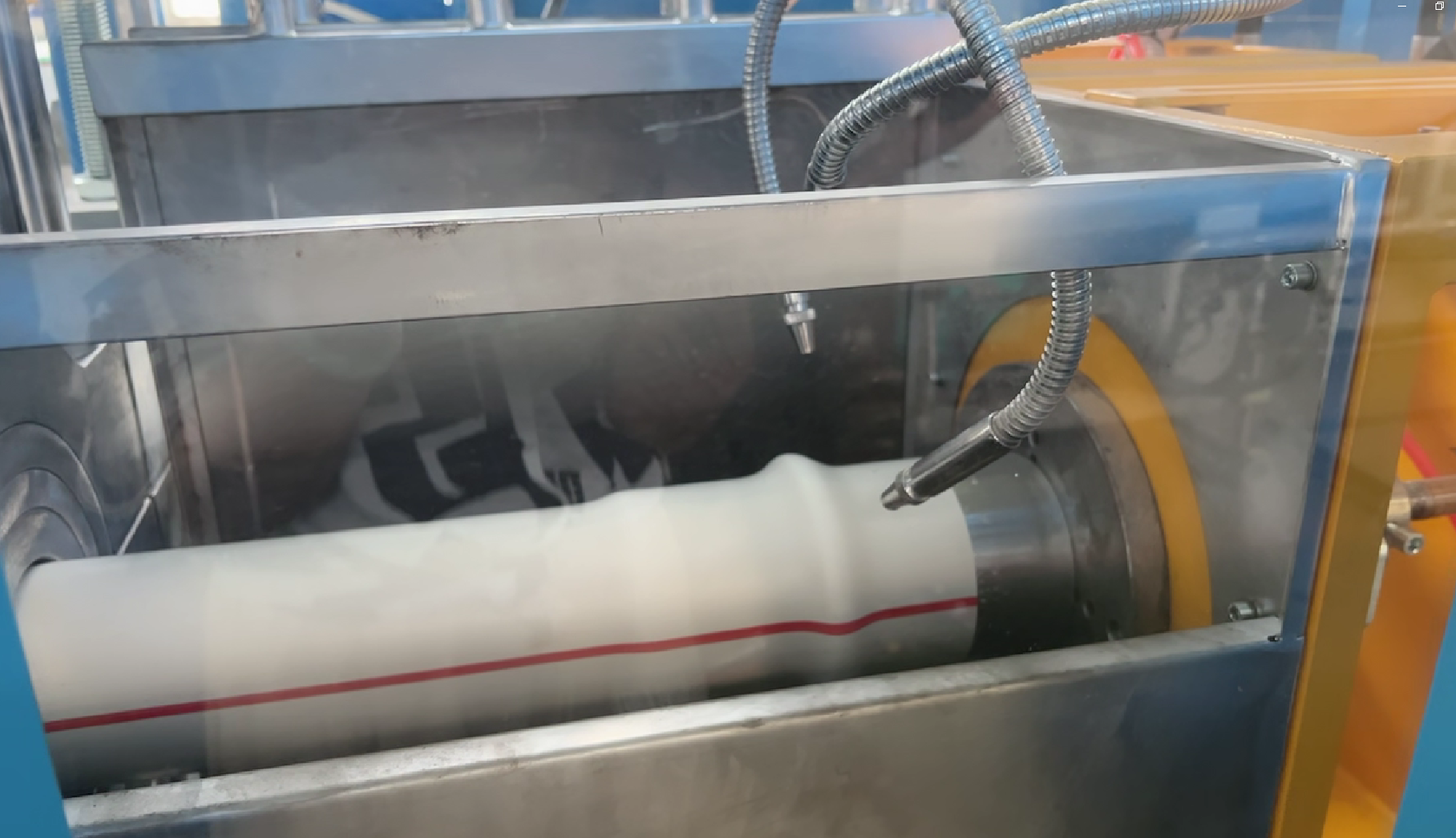

Flare and mold the pipe belling and Cool

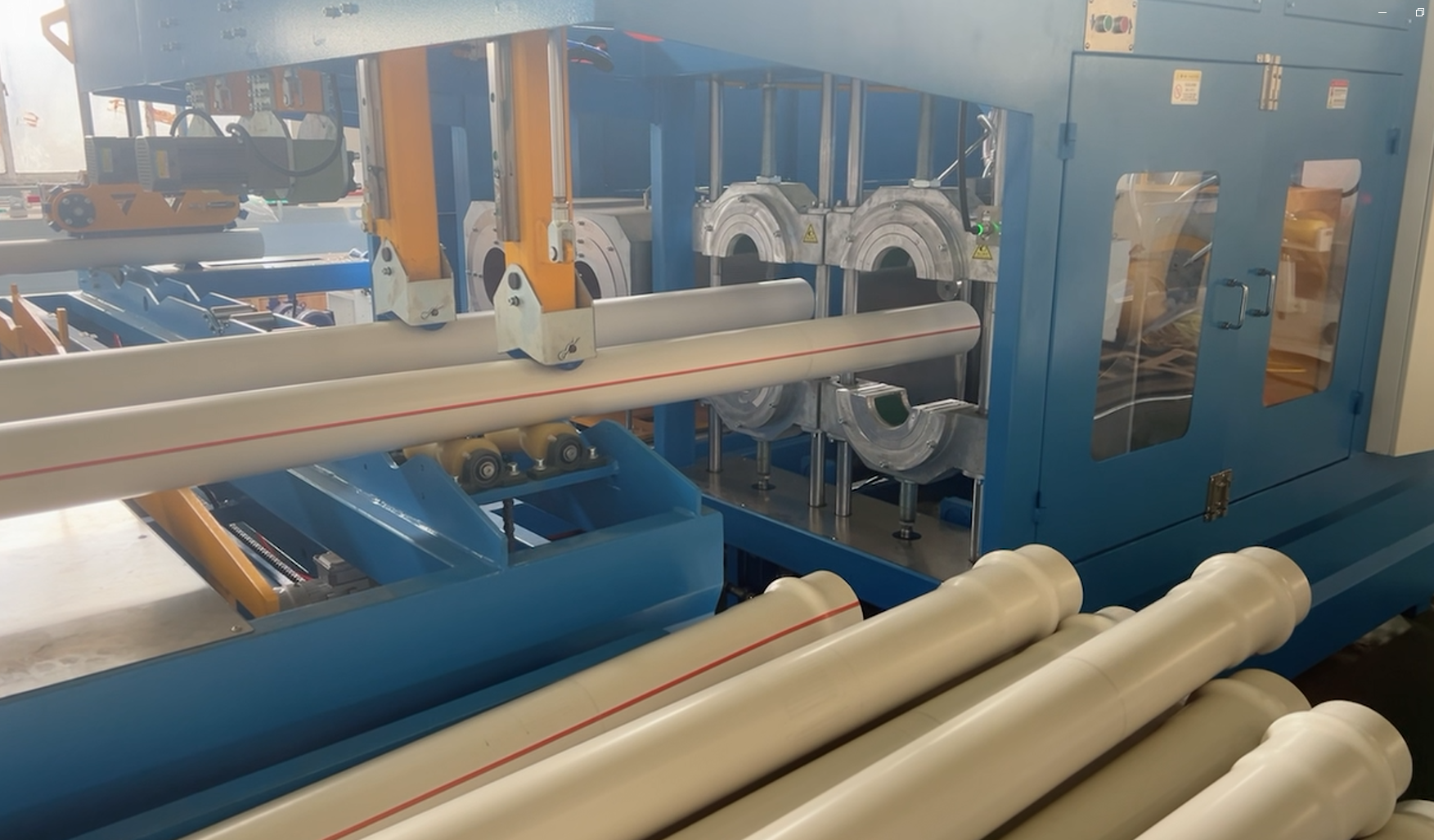

Finished belling pipe is discharged.
