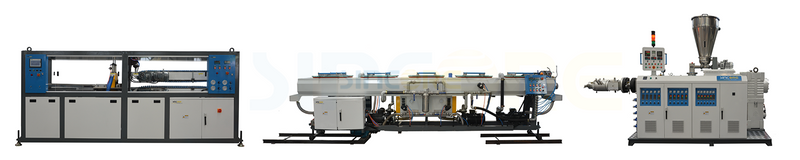

PVC Double Outlet Pipe Extrusion Production Line

Share to:
sharethis sharing button
For Φ16-Φ63mm,63-160mm pipes, we can choose the double –outlet pipe extrusion line, which could produce two pipes at the same time and ensures high productivity and good stability.
  • GF32-2,GF63-2,GF110-2,GF160-2

  • SINCORE

Material:
Availability:
Quantity:

>Features:

Φ16mm-Φ63mm double-outlet pipe extrusion line and Φ90-Φ160mm double-outlet pipe extrusion line can produce two pipes at the same time and ensures high productivity and saving huming resource.


>>设备特点:

Φ16mm-Φ63mm 双出管材生产线和Φ90-Φ160mm双出管材生产线能同时生产两根管,产量高,节省人力。

主机 Extruder

SJZ65/132

SJZ80/156

SJZ92/188

生产管径 Pipe range

16-63

50-110

90-160

模具 Mould

双出Double outlet

双出Double outlet

双出Double outlet

辅机 Downstream

GF63-2

GF110-2

GF160-2

总功率(kw)Total power

109.5

145

250

生产线总长(m)Total length

17.5

23

28.8

备注:以上规格参数如有变更,恕不另行通知 Remark: Specifications and standard equipment are subject to change without notification




63-2主机不带模具NEW调亮

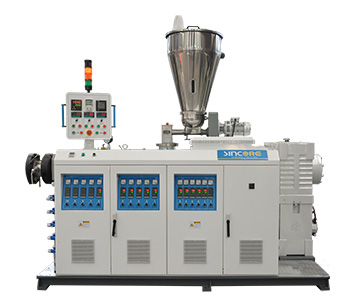

Conical Twin Screw Extruder

■ High-speed extrusion, with high capacity and low power consumption
■ Barrier design screw with asymmetric slotted barrel design

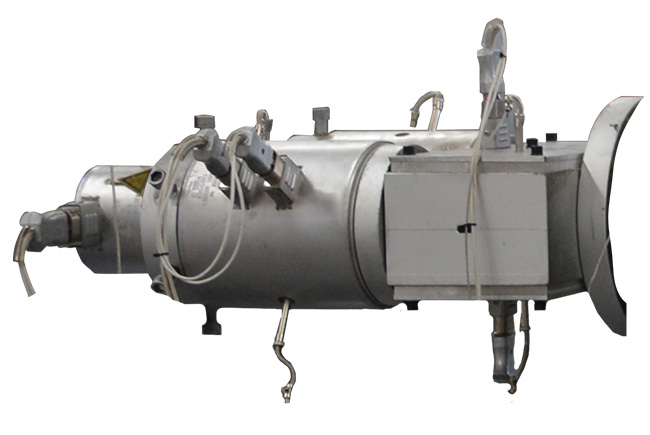

模具




Double outlet Die






配电箱内部

Standard Electrical Part

■ Siemens, ABB,  Schneider, Delixi,  Omron, etc

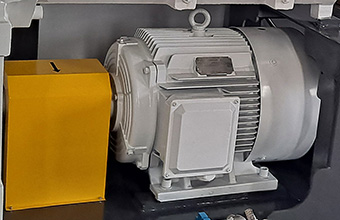

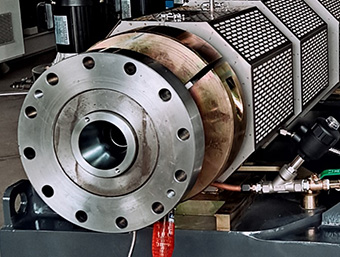

驱动 flange

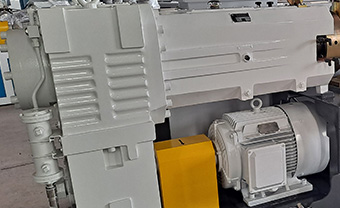

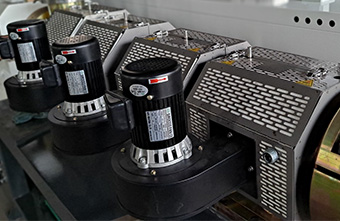

加热圈 gearbox

■ High assembling precision
■ High transmission efficiency
■ High load capacity
■ Oil temperature control
■ Compact structure

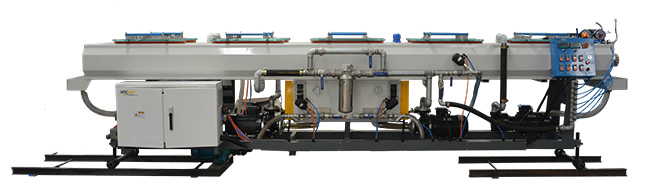

真空箱

Calibration Tank

Advanced pipe line layout design and adjustable spray angle for better cooling effect, dense pipe line in the first zone for fast cooling.

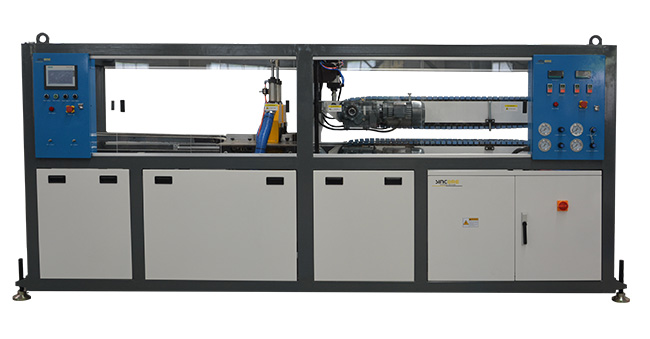

牵引切割

Hauler & Cutter

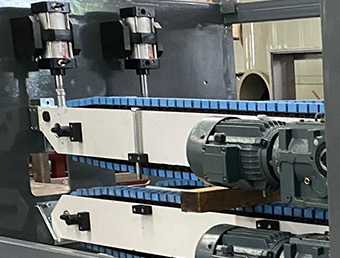

牵引切割细节 牵引












产品描述公共部分111
